SL 833 C
PUR motor connection cable with TPE cores and overall copper screen 0.6/1 kV

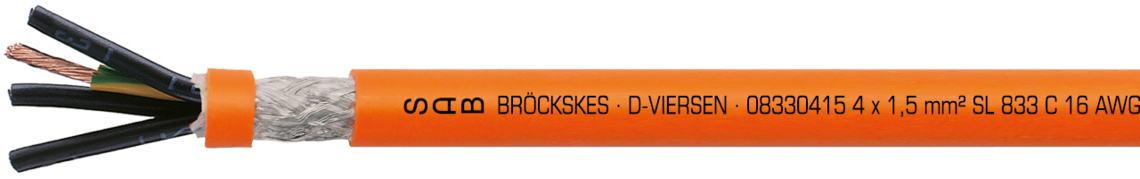

Marking for SL 833 C 08330415: SAB BRÖCKSKES · D-VIERSEN · 08330415 4 x 1,5 mm² SL 833 C 16 AWG/4c 1000V 08331604 UL AWM Style 20235 80°C CSA AWM I/II A/B 80°C 1000V FT1 FT2 CE
Application
SL 833 C is a PUR motor connection cable with TPE cores and overall copper screen 0.6/1 kV. This oil resistant motor cable is recommended for use in industries with intelligent servo drives, e.g. automation technology, motive power, control and production engineering, handling systems, car manufacturing industry, and cable tracks.
Outstanding features
- UL recognized, CSA approval
- very good EMC characteristics
- very high flexibility
- suitable for cable tracks
- oil resistant
- very long service life
- adhesion-free installation
- PWIS uncritical (PWIS= paint-wetting impairment substances)
- flexible at low temperatures
- DESINA® colours
Additional information
For DNC motors on frequency converters
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | TPE |
| Colour code | black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334 and a green-yellow earth wire |
| Stranding | in layers |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Sheath material | PU acc. UL 758 |
| Sheath colour | orange (RAL 2003) |
bare copper strands acc. to IEC 60228, VDE 0295, class 6
TPE
black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334
and a green-yellow earth wire
in layers
non-woven tape
tinned copper braiding
PU acc. UL 758
orange (RAL 2003)
Technical data
| Nominal voltage | DIN VDE Uo/U 0,6/1 kV |
|---|---|
| Voltage | UL/CSA: 1000 V |
| Testing voltage | core/core 4000 V core/screen 4000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 12 x d |
| Radiation resistance | 5 x 10⁷ cJ/kg |
| Temperature range | DIN VDE fixed laying: -50/+80 °C DIn VDE flexible application: -40/+80 °C UL/CSA: up to +80°C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1, CSA FT1, FT2 |
| Oil resistance | very good - oilrating 60 °C acc. to UL 1581 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
DIN VDE Uo/U 0,6/1 kV
UL/CSA: 1000 V
core/core 4000 V
core/screen 4000 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 12 x d
5 x 10⁷ cJ/kg
DIN VDE fixed laying: -50/+80 °C
DIn VDE flexible application: -40/+80 °C
UL/CSA: up to +80°C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL FT1, CSA FT1, FT2
very good - oilrating 60 °C acc. to UL 1581
good against acids, alkalines, solvents, hydraulic liquids etc.
acc. to RoHS directive of the European Union
Dimensions
| item no. | No. of cores x cross section | Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| 08330415 | 4 x 1,50 mm² | 0,16 mm | 9,1 mm | 83,5 kg/km | 126 kg/km | Send inquiry |
| 08330425 | 4 x 2,50 mm² | 0,16 mm | 11,0 mm | 142,5 kg/km | 192 kg/km | Send inquiry |
| 08330440 | 4 x 4,00 mm² | 0,16 mm | 12,5 mm | 206,7 kg/km | 273 kg/km | Send inquiry |
| 08330460 | 4 x 6,00 mm² | 0,21 mm | 15,5 mm | 298,3 kg/km | 399 kg/km | Send inquiry |
| 08330470 | 4 x 10,0 mm² | 0,21 mm | 17,8 mm | 495,2 kg/km | 605 kg/km | Send inquiry |
| 08330480 | 4 x 16,0 mm² | 0,21 mm | 22,8 mm | 750,0 kg/km | 951 kg/km | Send inquiry |
| 08330490 | 4 x 25,0 mm² | 0,21 mm | 25,7 mm | 1120,2 kg/km | 1331 kg/km | Send inquiry |
| 08330495 | 4 x 35,0 mm² | 0,21 mm | 29,2 mm | 1534,3 kg/km | 1732 kg/km | Send inquiry |
| 08330496 | 4 x 50,0 mm² | 0,31 mm | 34,3 mm | 2144,0 kg/km | 2428 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
