SL 842 C

TPE/PUR feedback cable with overall copper screen

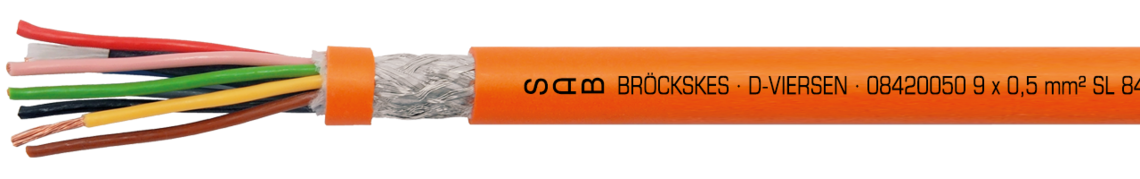

Marking for SL 842 C 08420050: SAB BRÖCKSKES · D-VIERSEN · 08420050 9 x 0,5 mm² SL 842 C 20 AWG/9c 08422009 UL AWM-Style 20233 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Marking for SL 842 C 08420050: SAB BRÖCKSKES · D-VIERSEN · 08420050 9 x 0,5 mm² SL 842 C 20 AWG/9c 08422009 UL AWM-Style 20233 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Application

SL 842 C is a TPE/PUR feedback cable with adhesion-free installation and overall copper screen. It is a highly flexible, mobile connection cable for e.g. speedo, brake, temperature control in motors, for continuously flexible applications in automation technology, control and production engineering, in cable tracks on wood-working machines, machine and industrial plant construction, even with high mechanical demands and in dry, damp, and wet conditions as well as at low temperatures.

Outstanding features

  • UL recognized, CSA approval
  • good EMC characteristics
  • high flexibility
  • suitable for cable tracks
  • oil resistant
  • long service life
  • adhesion-free installation
  • halogen-free
  • PWIS uncritical (PWIS= paint-wetting impairment substances)
  • DESINA® colours

Additional information

Suitable for resolvers and shaft encoders

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

TPE

Colour code

coloured

Stranding

in layers

Screen

acc. to dimension: pairs screened or wrapped with tinned copper braid

Inner sheath

TPE over screened pairs

Stranding

cores/pairs twisted together in layers

Wrapping

one or two layers non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

sheath colour

orange (RAL 2003)

Conductor

bare copper strands with reference to VDE 0812

Insulation

TPE

Colour code

coloured

Stranding

in layers

Screen

acc. to dimension: pairs screened or wrapped with tinned copper braid

Inner sheath

TPE over screened pairs

Stranding

cores/pairs twisted together in layers

Wrapping

one or two layers non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

sheath colour

orange (RAL 2003)

Technical data

Peak operating voltage

max. 500 V

Voltage

UL/CSA: 300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL FT1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 500 V

Voltage

UL/CSA: 300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL FT1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Description Dimension Sheath colour Largest single
wire-ø
Approx. outer-ø Copper figure Cable weight ≈
L08420050Indramat9 x 0,50 mm²RAL 20030,16 mm8,8 ± 0,3 mm72,6 kg/km104 kg/km Send inquiry
item no.
Description
Dimension
Sheath colour
Largest single
wire-ø
Approx. outer-ø
Copper figure
Cable weight ≈
L08420050
Indramat
9 x 0,50 mm²
RAL 2003
0,16 mm
8,8 ± 0,3 mm
72,6 kg/km
104 kg/km

Other dimensions and colours are possible on request.
