IBL 600

PVC Interbus-Loop cable

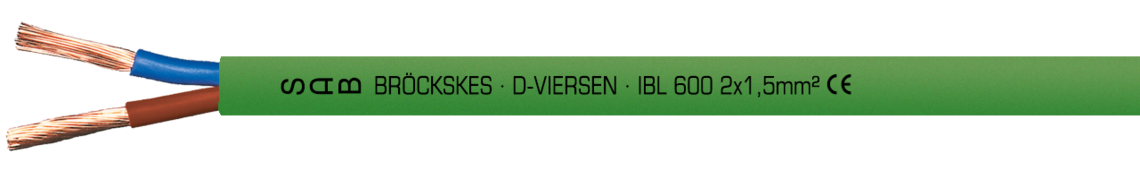

Marking for IBL 600 06002853: SAB BRÖCKSKES · D-VIERSEN · IBL 600 2 x 1,5 mm² and current meter marking CE

Download data sheet for IBL 600

Questions about our products?

Application

The PVC Interbus-Loop cable has a minimum bending radius of 15 x d. It is intended for use as a data transmission conductor and for the supply of sensors. The three-core Interbus-Loop cable is used for the supply of actuators. This cable is also suitable for the Interbus-Loop-2.

Outstanding features

flame retardant and self-extinguishing
very good oil resistance
suitable for Interbus-Loop 2

Construction

Conductor	bare copper strands with reference to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3
Colour code	coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores
Stranding	in layers
Sheath material	PVC, TM5 acc. to EN 50363-4-1
Sheath colour	may green (RAL 6017)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3

Colour code

coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM5 acc. to EN 50363-4-1

Sheath colour

may green (RAL 6017)

Technical data

Peak operating voltage	max. 350 V
Testing voltage	core/core 1500 V
Min. bending radius	15 x d
Radiation resistance	8 x 10⁷ cJ/kg
Temperature range	fixed laying: -40/+70°C flexible application: +5/+70°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	very good acc. to VDE 0207-5
Characteristic impedance at 0,25 MHz - 10 MHz	for two-core cables 75 Ω ± 15%
Application in cable tracks	not recommended
Weather resistance	medium
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

Min. bending radius

15 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good acc. to VDE 0207-5

Characteristic impedance at 0,25 MHz - 10 MHz

for two-core cables 75 Ω ± 15%

Application in cable tracks

not recommended

Weather resistance

medium

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	no. of cores x cross section	outer-ø ± 5%	copper figure	cable weight ca.
06002853	2 x 1,50 mm²	6,9 mm	28,8 kg/km	75 kg/km	Send inquiry
06003853	3 x 1,50 mm²	7,5 mm	43,2 kg/km	94 kg/km	Send inquiry

item no.

no. of cores x
cross section

outer-ø ± 5%

copper figure

cable weight ca.

06002853

2 x 1,50 mm²

6,9 mm

28,8 kg/km

75 kg/km

Send inquiry

06003853

3 x 1,50 mm²

7,5 mm

43,2 kg/km

94 kg/km
