SAB Kabel

IBS 612

PVC Interbus-S cable for indoor and outdoor installation

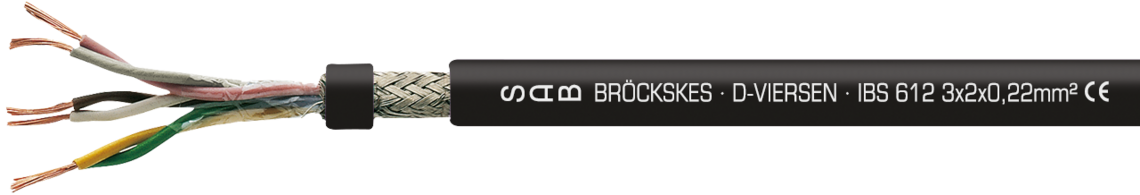

Marking for IBS 612 06123228: SAB BRÖCKSKES · D-VIERSEN · IBS 612 3 x 2 x 0,22 mm² CE

Marking for IBS 612 06123228: SAB BRÖCKSKES · D-VIERSEN · IBS 612 3 x 2 x 0,22 mm² CE

Application

This cable is a shielded PVC Interbus-S cable for outdoor and underground installation. The cable twisted in pairs with a minimum bending radius of 7.5 x d is primarily used for communication in the field level (e.g. sensors, actuators, controllers), but also for information transmission between the field level and the control level above (e.g. SPS).

Outstanding features

  • flame retardant and self-extinguishing
  • for indoor and outdoor installation

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103

Colour code

acc. to DIN 47100

Stranding

twisted to pairs

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1

Sheath colour

black (RAL 9005)

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103

Colour code

acc. to DIN 47100

Stranding

twisted to pairs

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1000V

core/screen:1000V

Min. bending radius

7,5 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70°C

flexible application: -5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Characteristic impedance at 0.064 MHz

120 Ω ± 20%

Characteristic impedance at > 1 MHz:

100 Ω ± 15 Ω

Flexibility

good

Application in cable tracks

not recommended

Weather resistance

medium

Direct Burial

suitable

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1000V

core/screen:1000V

Min. bending radius

7,5 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70°C

flexible application: -5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Characteristic impedance at 0.064 MHz

120 Ω ± 20%

Characteristic impedance at > 1 MHz:

100 Ω ± 15 Ω

Flexibility

good

Application in cable tracks

not recommended

Weather resistance

medium

Direct Burial

suitable

Dimensions

item no.

outer-ø ± 10%

copper figure

cable weight ca.

061232283 x 2 x 0,22 mm²9 mm31,2 kg/km95 kg/km Send inquiry
061262283 x 2 x 0,22 mm² + 3 x 1,00 mm²10 mm62 kg/km132 kg/km Send inquiry
item no.
outer-ø ± 10%
copper figure
cable weight ca.
06123228
3 x 2 x 0,22 mm²
9 mm
31,2 kg/km
95 kg/km
06126228
3 x 2 x 0,22 mm² + 3 x 1,00 mm²
10 mm
62 kg/km
132 kg/km

Other dimensions and colours are possible on request.
