S IBL 605

PUR Interbus-Loop cable for cable tracks

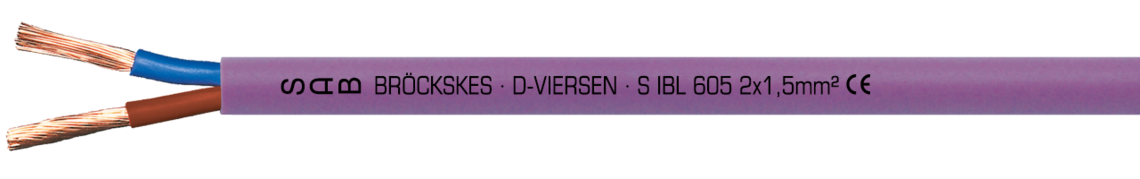

Marking for S IBL 605 06052853: SAB BRÖCKSKES · D-VIERSEN · S IBL 605 2 x 1,5 mm² CE

Marking for S IBL 605 06052853: SAB BRÖCKSKES · D-VIERSEN · S IBL 605 2 x 1,5 mm² CE

Application

The PUR Interbus-Loop cable for cable tracks has a minimum bending radius of 15 x d and a peak operating voltage of max. 350 V. It is intended for use as a data transmission conductor and for the supply of sensors. The three-core Interbus-Loop cable is used for the supply of actuators. This cable is also suitable for the Interbus-Loop-2.

Outstanding features

  • suitable for cable tracks
  • halogen-free
  • very good oil resistance
  • good chemical resistance
  • good weather resistance
  • suitable for Interbus-Loop 2

Construction

Conductor

bare copper strands with reference to IEC 60228, VDE 0295, class 6

Insulation

TPE-E

Colour code

coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with netting tape and one additional non-woven tape over the outer layer

Sheath material

PUR, TMPU acc. to EN 50363-10-2 with rough surface

Sheath colour

redlilac (RAL 4001)

Conductor

bare copper strands with reference to IEC 60228, VDE 0295, class 6

Insulation

TPE-E

Colour code

coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with netting tape and one additional non-woven tape over the outer layer

Sheath material

PUR, TMPU acc. to EN 50363-10-2 with rough surface

Sheath colour

redlilac (RAL 4001)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

Min. bending radius

15 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + EN 0482-754-1

Oil resistance

very good acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Characteristic impedance at 0,25 MHz - 10 MHz

for two-core cables 75 Ω ± 15%

Flexibility

very good

Application in cable tracks

recommended

Weather resistance

very good

Continuosly flexible application

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

Min. bending radius

15 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + EN 0482-754-1

Oil resistance

very good acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Characteristic impedance at 0,25 MHz - 10 MHz

for two-core cables 75 Ω ± 15%

Flexibility

very good

Application in cable tracks

recommended

Weather resistance

very good

Continuosly flexible application

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Outer-ø ± 5% Copper figure Cable weight ≈ Dimension
L060528532 x 1,50 mm²7,7 mm28,8 kg/km75 kg/km2 x 1,50 mm² Send inquiry
L060538533 x 1,50 mm²8,1 mm43,2 kg/km90 kg/km3 x 1,50 mm² Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 5%
Copper figure
Cable weight ≈
Dimension
L06052853
2 x 1,50 mm²
7,7 mm
28,8 kg/km
75 kg/km
2 x 1,50 mm²
L06053853
3 x 1,50 mm²
8,1 mm
43,2 kg/km
90 kg/km
3 x 1,50 mm²

Other dimensions and colours are possible on request.
