SABIX® IBL 600
Halogen-free Interbus-Loop cable

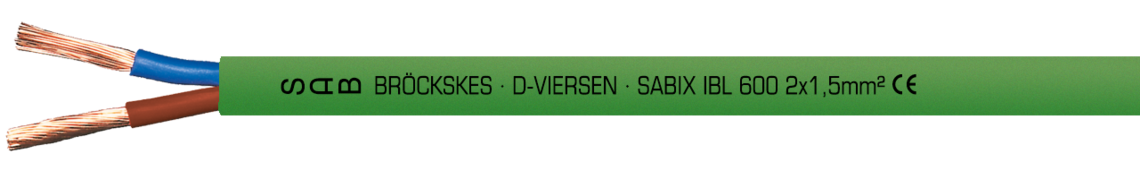

Marking for SABIX IBL 600 56002853: SAB BRÖCKSKES · D-VIERSEN · SABIX IBL 600 (Logo INTERBUS) Certified! No. 204 2 x 1,5 mm² CE
Application
The halogen-free Interbus-Loop cable has a characteristic impedance at 0.25 MHz - 10 MHz for two-wire cables 75 Ω +/- 15%. It is intended for use as a data transmission conductor and for the supply of sensors. The three-core Interbus-Loop cable is used for the supply of actuators. This cable is also suitable for the Interbus-Loop-2.
Outstanding features
- halogen-free
- very good oil resistance
- good weather resistance
- suitable for Interbus-Loop 2
Construction
| Conductor | bare copper strands with reference to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | SABIX® |
| Colour code | coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores |
| Stranding | in layers |
| Sheath material | SABIX® |
| Sheath colour | may green (RAL 6017) |
bare copper strands with reference to IEC 60228, VDE 0295, class 5
SABIX®
coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores
in layers
SABIX®
may green (RAL 6017)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core 1500 V |
| Min. bending radius | 15 x d |
| Radiation resistance | 5 x 10^6 cJ/kg |
| Temperature range | fixed laying: -50/+90°C flexible application -40/+90°C |
| Halogen-free | acc. to IEC 60754-1 + EN 0482-754-1 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Oil resistance | very good acc. to EN 50363-4-1 |
| Characteristic impedance at 0,25 MHz - 10 MHz | for two-core cables 75 Ω ± 15% |
| Flexibility | very good |
| Application in cable tracks | not recommended |
| Weather resistance | good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core 1500 V
15 x d
5 x 10^6 cJ/kg
fixed laying: -50/+90°C
flexible application -40/+90°C
acc. to IEC 60754-1 + EN 0482-754-1
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
very good acc. to EN 50363-4-1
for two-core cables 75 Ω ± 15%
very good
not recommended
good
acc. to RoHS directive of the European Union
Dimensions
| item no. | No. of cores x cross section | Outer-ø ± 5% | Copper figure | Cable weight ≈ | Dimension | |
|---|---|---|---|---|---|---|
| 56002853 | 2 x 1,50 mm² | 6,9 mm | 28,8 kg/km | 59 kg/km | 2 x 1,50 mm² | Send inquiry |
| 56003853 | 3 x 1,50 mm² | 7,5 mm | 43,2 kg/km | 75 kg/km | 3 x 1,50 mm² | Send inquiry |
cross section
Other dimensions and colours are possible on request.
