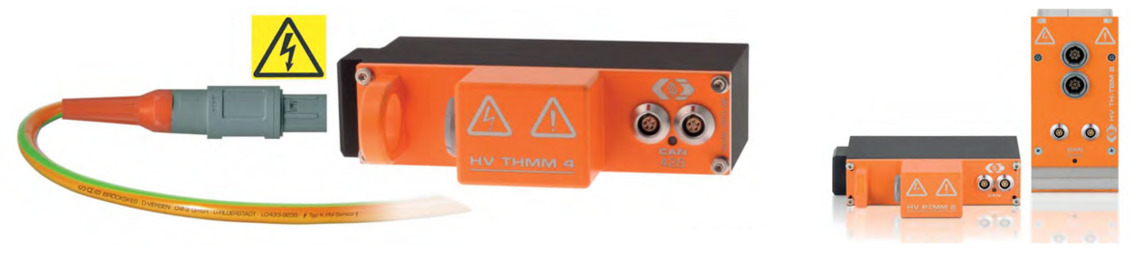

HV thermo-scan mini module

Mini module

Application

HV thermo-scan mini module for operating temperatures up to +100°C.

Outstanding features

  • 4 NiCr-Ni (type K) temperature input
  • galvanic insulation: reinforced insulation up to 846 V unipolar
    ✔ channel / channel
    ✔ channel / CAN
    ✔ channel / supply
    ✔ channel / housing
  • type and routine test according to device safety standard EN 61010
  • outstanding measurement accuracy for all temperature ranges and environmental conditions
  • internal cold junction compensation per channel
  • very low power consumption typ. 1 W
  • operating temperature -40 °C to +125 °C
  • protection class IP67
  • robust aluminium housing
  • extremely compact CAN bus measurement module
