SL 801 C

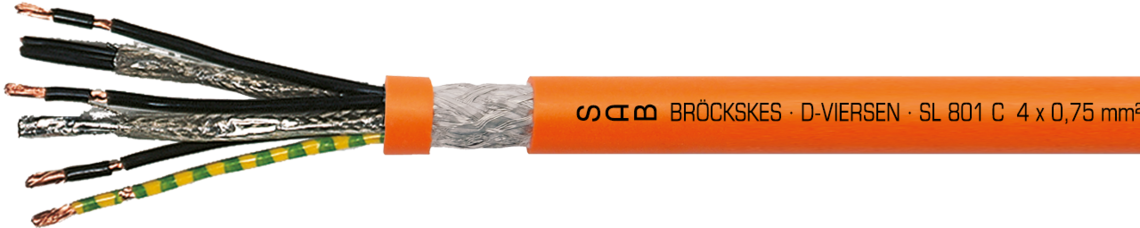

Combined TPE/PUR motor connection cable with overall copper screen 0.6/1 kV

Marking for SL 801 C 08010407: SAB BRÖCKSKES · D-VIERSEN · SL 801 C 4 x 0,75 mm² + 2 x (2 x 0,34 mm²) CE

Marking for SL 801 C 08010407: SAB BRÖCKSKES · D-VIERSEN · SL 801 C 4 x 0,75 mm² + 2 x (2 x 0,34 mm²) CE

Application

SL 801 C  is a combined TPE/PUR motor connection cable with overall copper screen 0.6/1 kV. It is recommended for use in highly flexible cable track applications in intelligent industries with servo drives, e.g. automation technologies, machine construction, construction of industrial robots and plants, motive power, control and manufacturing engineering, in handling systems, car manufacturing industry, and in cable tracks on wood-working centres. Moreover, it has a colour coding acc. to DESINA.

Outstanding features

  • very good EMC characteristics
  • long service life
  • adhesion-free installation
  • high flexibility
  • halogen-free
  • labs uncritical (labs = enamel moisturing interfering substances)
  • flexible at low temperatures
  • DESINA ® colours

Additional information

Cable harnessing possible on request

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

>0,5 mm² with reference to VDE 0812

Insulation

TPE

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334

(except 0,34 mm² = coloured) and a green-yellow earth wire



from item no. 08011415:

supply cores: U1, V2, W3and a green-yellow earth wire

control cores: BR1 and BR2

Stranding

control cores 0,34 mm2 - 2,5 mm2 twisted to pairs

Screen

pairs wrapped with alu foil, tinned copper braid

Wrapping

pairs with PETP foil

Stranding

screened control pairs and supply cores twisted together in layers

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

>0,5 mm² with reference to VDE 0812

Insulation

TPE

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334

(except 0,34 mm² = coloured) and a green-yellow earth wire



from item no. 08011415:

supply cores: U1, V2, W3and a green-yellow earth wire

control cores: BR1 and BR2

Stranding

control cores 0,34 mm2 - 2,5 mm2 twisted to pairs

Screen

pairs wrapped with alu foil, tinned copper braid

Wrapping

pairs with PETP foil

Stranding

screened control pairs and supply cores twisted together in layers

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Technical data

Nominal voltage

supply cores: Uo/U 0.6/1 kV

Peak operating voltage

control cores: max. 500 V

Testing voltage

supply cores:

core/core 4000 V

core/screen 4000 V



control cores:

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

supply cores: Uo/U 0.6/1 kV

Peak operating voltage

control cores: max. 500 V

Testing voltage

supply cores:

core/core 4000 V

core/screen 4000 V



control cores:

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Weather resistance

very good

Dimensions

item no.

dimension

AWG
supply cores

AWG
control cores (paired)

largest single
wire-ø

outer-ø

copper figure

cable weight ca.

080104074 x 0,75 + 2 x (2 x 0,34)19 / 4c22 / 2pr0,16/0,11 mm10,5 ± 0,5 mm115,5 kg/km160 kg/km Send inquiry
080104104 x 1,00 + 2 x (2 x 0,75)18 / 4c19 / 2pr0,16 mm12,0 ± 0,5 mm154,2 kg/km209 kg/km Send inquiry
080104154 x 1,50 + 2 x (2 x 0,75)16 / 4c19 / 2pr0,16 mm12,2 ± 0,5 mm174,3 kg/km233 kg/km Send inquiry
080104254 x 2,50 + 2 x (2 x 1,00)14 / 4c18 / 2pr0,16 mm15,0 ± 0,8 mm236,8 kg/km312 kg/km Send inquiry
080104414 x 4,00 + (2 x 1,00) + (2 x 1,50)12 / 4c18 / 1pr + 16 / 1pr0,16 mm17,8 ± 0,6 mm349,8 kg/km463 kg/km Send inquiry
080104614 x 6,00 + (2 x 1,00) + (2 x 1,50)10 / 4c18 / 1pr + 16 / 1pr0,21/0,16 mm18,6 ± 0,8 mm437,6 kg/km580 kg/km Send inquiry
080104714 x 10,00 + (2 x 1,00) + (2 x 1,50)8 / 4c18 / 1pr + 16 / 1pr0,21/0,16 mm22,5 ± 1,0 mm613,5 kg/km792 kg/km Send inquiry
080104854 x 16,00 + 2 x (2 x 1,50)6 / 4c16 / 2pr0,21/0,16 mm27,6 ± 0,8 mm880,6 kg/km1130 kg/km Send inquiry
080104904 x 25,00 + 2 x (2 x 1,50)4 / 4c16 / 2pr0,21/0,16 mm28,0 ± 1,0 mm1237,0 kg/km1507 kg/km Send inquiry
080104954 x 35,00 + 2 x (2 x 1,50)2 / 4c16 / 2pr0,21/0,16 mm32,0 ± 1,0 mm1647,3 kg/km2011 kg/km Send inquiry
080104964 x 50,00 + 2 x (2 x 2,50)1 / 4c14 / 2pr0,21/0,16 mm38,2 ± 1,0 mm2324,0 kg/km2866 kg/km Send inquiry
item no.
dimension
AWG
supply cores
AWG
control cores (paired)
largest single
wire-ø
outer-ø
copper figure
cable weight ca.
08010407
4 x 0,75 + 2 x (2 x 0,34)
19 / 4c
22 / 2pr
0,16/0,11 mm
10,5 ± 0,5 mm
115,5 kg/km
160 kg/km
08010410
4 x 1,00 + 2 x (2 x 0,75)
18 / 4c
19 / 2pr
0,16 mm
12,0 ± 0,5 mm
154,2 kg/km
209 kg/km
08010415
4 x 1,50 + 2 x (2 x 0,75)
16 / 4c
19 / 2pr
0,16 mm
12,2 ± 0,5 mm
174,3 kg/km
233 kg/km
08010425
4 x 2,50 + 2 x (2 x 1,00)
14 / 4c
18 / 2pr
0,16 mm
15,0 ± 0,8 mm
236,8 kg/km
312 kg/km
08010441
4 x 4,00 + (2 x 1,00) + (2 x 1,50)
12 / 4c
18 / 1pr + 16 / 1pr
0,16 mm
17,8 ± 0,6 mm
349,8 kg/km
463 kg/km
08010461
4 x 6,00 + (2 x 1,00) + (2 x 1,50)
10 / 4c
18 / 1pr + 16 / 1pr
0,21/0,16 mm
18,6 ± 0,8 mm
437,6 kg/km
580 kg/km
08010471
4 x 10,00 + (2 x 1,00) + (2 x 1,50)
8 / 4c
18 / 1pr + 16 / 1pr
0,21/0,16 mm
22,5 ± 1,0 mm
613,5 kg/km
792 kg/km
08010485
4 x 16,00 + 2 x (2 x 1,50)
6 / 4c
16 / 2pr
0,21/0,16 mm
27,6 ± 0,8 mm
880,6 kg/km
1130 kg/km
08010490
4 x 25,00 + 2 x (2 x 1,50)
4 / 4c
16 / 2pr
0,21/0,16 mm
28,0 ± 1,0 mm
1237,0 kg/km
1507 kg/km
08010495
4 x 35,00 + 2 x (2 x 1,50)
2 / 4c
16 / 2pr
0,21/0,16 mm
32,0 ± 1,0 mm
1647,3 kg/km
2011 kg/km
08010496
4 x 50,00 + 2 x (2 x 2,50)
1 / 4c
14 / 2pr
0,21/0,16 mm
38,2 ± 1,0 mm
2324,0 kg/km
2866 kg/km

Other dimensions and colours are possible on request.
