SL 803 C

TPE/PUR transmission cable with overall copper screen

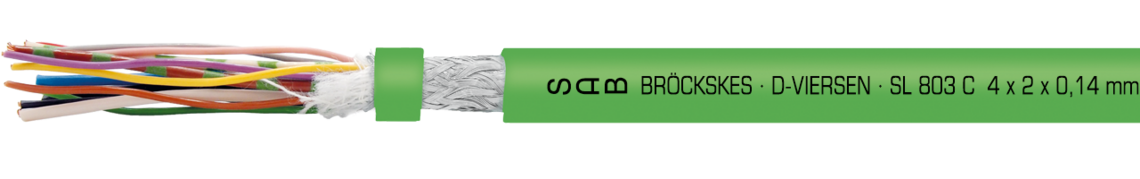

Marking for SL 803 C 08030112: SAB BRÖCKSKES · D-VIERSEN · SL 803 C 10 x 0,14 mm² + 2 x 0,5 mm² CE

Marking for SL 803 C 08030112: SAB BRÖCKSKES · D-VIERSEN · SL 803 C 10 x 0,14 mm² + 2 x 0,5 mm² CE

Application

SL 803 C is a TPE/PUR transmission cable with overall copper screen and very long service life. It is a highly flexible, mobile connection cable for e.g. speedo, brake, temperature control in motors, for continuously flexible applications in automation technology, control and production engineering, in cable tracks on wood-working machines, machine and industrial plant construction, even with high mechanical demands and in dry, damp, and wet conditions as well as at low temperatures.

Outstanding features

  • very good EMC characteristics
  • very high flexibility
  • very long service life
  • suitable for cable tracks
  • adhesion-free installation
  • oil resistant
  • halogen-free
  • PWIS uncritical (PWIS= paint-wetting impairment substances)
  • flexible at low temperatures
  • DESINA® colours

Additional information

suitable for resolvers andshaft encoders

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

TPE

Colour code

coloured

Stranding

in layers or pairwise

Screen

acc. to dimension:

pairs screened or wrapped with tinned copper braid

Inner sheath

TPE

Stranding

cores/pairs twisted together in layers

Wrapping

non-woven tape or netting tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

green (RAL 6018)

Conductor

bare copper strands with reference to VDE 0812

Insulation

TPE

Colour code

coloured

Stranding

in layers or pairwise

Screen

acc. to dimension:

pairs screened or wrapped with tinned copper braid

Inner sheath

TPE

Stranding

cores/pairs twisted together in layers

Wrapping

non-woven tape or netting tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

green (RAL 6018)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Sheath colour Largest single
wire-ø
Outer-ø ± 10% Copper figure Cable weight ≈
080300094 x 2 x 0,25 + 2 x 0,50RAL 20030,11/0,16 mm7,8 mm51,8 kg/km81 kg/km Send inquiry
080300104 x 2 x 0,25 + 2 x 1,00RAL 20030,11/0,16 mm7,9 mm63,3 kg/km93 kg/km Send inquiry
080301603 x 2 x 0,25 + 3 x 0,25 + 2 x 1,00RAL 20030,11/0,16 mm7,9 mm65,8 kg/km96 kg/km Send inquiry
080300403 x 2 x 0,25RAL 20030,11 mm6,3 mm33,2 kg/km52 kg/km Send inquiry
080300604 x 2 x 0,14 + (4 x 0,14) D + 4 x 1,00RAL 20030,11/0,16 mm9,7 mm88,5 kg/km135 kg/km Send inquiry
080300124 x 2 x 0,14 + 4 x 0,50RAL 60180,11/0,16 mm7,9 mm54,9 kg/km86 kg/km Send inquiry
0803011210 x 0,14 + 2 x 0,50RAL 60180,11/0,16 mm7,0 mm44,0 kg/km66 kg/km Send inquiry
0803011410 x 0,14 + 4 x 0,50RAL 60180,11/0,16 mm7,8 mm55,6 kg/km83 kg/km Send inquiry
080300134 x 2 x 0,38 + 4 x 0,50RAL 60180,11/0,16 mm8,9 mm75,9 kg/km112 kg/km Send inquiry
080300203 x (2 x 0,14 C) + 2 x 1,00RAL 60180,11/0,16 mm8,6 mm80,6 kg/km102 kg/km Send inquiry
080300223 x (2 x 0,14 C) + 2 x (0,50 C)RAL 60180,11/0,16 mm8,8 mm87,6 kg/km108 kg/km Send inquiry
080310503 x (2 x 0,14 D) + 4 x 0,14 + 4 x 0,22 + 2 x 0,50RAL 60180,11 mm9,5 mm77,9 kg/km121 kg/km Send inquiry
item no.
Dimension
Sheath colour
Largest single
wire-ø
Outer-ø ± 10%
Copper figure
Cable weight ≈
08030009
4 x 2 x 0,25 + 2 x 0,50
RAL 2003
0,11/0,16 mm
7,8 mm
51,8 kg/km
81 kg/km
08030010
4 x 2 x 0,25 + 2 x 1,00
RAL 2003
0,11/0,16 mm
7,9 mm
63,3 kg/km
93 kg/km
08030160
3 x 2 x 0,25 + 3 x 0,25 + 2 x 1,00
RAL 2003
0,11/0,16 mm
7,9 mm
65,8 kg/km
96 kg/km
08030040
3 x 2 x 0,25
RAL 2003
0,11 mm
6,3 mm
33,2 kg/km
52 kg/km
08030060
4 x 2 x 0,14 + (4 x 0,14) D + 4 x 1,00
RAL 2003
0,11/0,16 mm
9,7 mm
88,5 kg/km
135 kg/km
08030012
4 x 2 x 0,14 + 4 x 0,50
RAL 6018
0,11/0,16 mm
7,9 mm
54,9 kg/km
86 kg/km
08030112
10 x 0,14 + 2 x 0,50
RAL 6018
0,11/0,16 mm
7,0 mm
44,0 kg/km
66 kg/km
08030114
10 x 0,14 + 4 x 0,50
RAL 6018
0,11/0,16 mm
7,8 mm
55,6 kg/km
83 kg/km
08030013
4 x 2 x 0,38 + 4 x 0,50
RAL 6018
0,11/0,16 mm
8,9 mm
75,9 kg/km
112 kg/km
08030020
3 x (2 x 0,14 C) + 2 x 1,00
RAL 6018
0,11/0,16 mm
8,6 mm
80,6 kg/km
102 kg/km
08030022
3 x (2 x 0,14 C) + 2 x (0,50 C)
RAL 6018
0,11/0,16 mm
8,8 mm
87,6 kg/km
108 kg/km
08031050
3 x (2 x 0,14 D) + 4 x 0,14 + 4 x 0,22 + 2 x 0,50
RAL 6018
0,11 mm
9,5 mm
77,9 kg/km
121 kg/km

Other dimensions and colours are possible on request.
