SL 807 C

PE/PVC feedback cable with overall copper screen

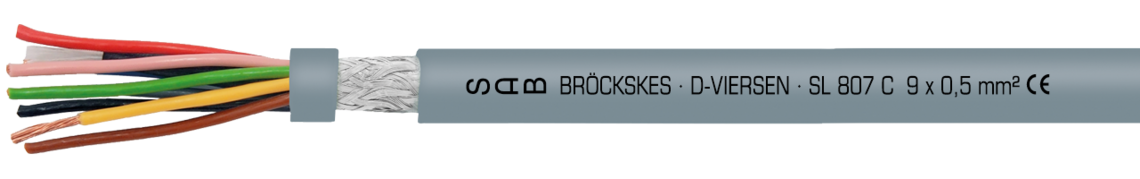

Marking for SL 807 C 08070050: SAB BRÖCKSKES · D-VIERSEN · SL 807 C 9 x 0,5 mm² CE

Marking for SL 807 C 08070050: SAB BRÖCKSKES · D-VIERSEN · SL 807 C 9 x 0,5 mm² CE

Application

SL 807 C is a PE/PVC feedback cable with overall copper screen and a space-saving application. This flexible encoder & resolver cable is used e.g. for speedo, brake, temperature control in motors, for continuously flexible applications in automation technology, and in control and product enigneering.

Outstanding features

  • good EMC characteristics
  • high functionality
  • space-saving application
  • good handling

Additional information

suitable for resolvers and shaft encoders

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE L/MD acc. to EN 50290-2-23 + VDE 0819-103

Colour code

coloured

Stranding

in layers

Screen

acc. to dimension:

pairs screened or wrapped with tinned copper braid

Wrapping

PETP-foil

Stranding

cores/pairs twisted together in layers

Wrapping

PETP-foil

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE L/MD acc. to EN 50290-2-23 + VDE 0819-103

Colour code

coloured

Stranding

in layers

Screen

acc. to dimension:

pairs screened or wrapped with tinned copper braid

Wrapping

PETP-foil

Stranding

cores/pairs twisted together in layers

Wrapping

PETP-foil

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Peak operating voltage

max. 500 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 500 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Sheath colour Largest single
wire-ø
Outer-ø ± 10% Copper figure Cable weight ≈
080700509 x 0,50RAL 70000,21 mm8,4 mm68,2 kg/km107 kg/km Send inquiry
item no.
Dimension
Sheath colour
Largest single
wire-ø
Outer-ø ± 10%
Copper figure
Cable weight ≈
08070050
9 x 0,50
RAL 7000
0,21 mm
8,4 mm
68,2 kg/km
107 kg/km

Other dimensions and colours are possible on request.
