SL 808 C

PE/PVC transmission cable with overall copper screen

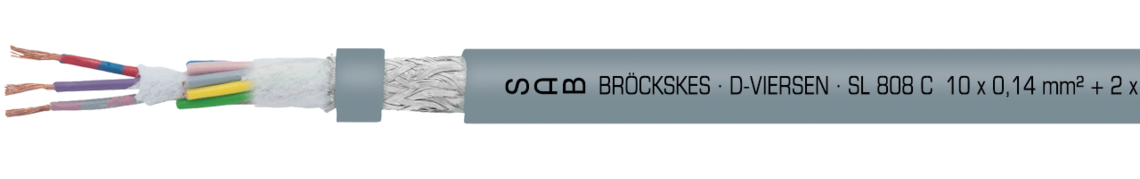

Marking for SL 808 C 08080112: SAB BRÖCKSKES · D-VIERSEN · SL 808 C 10 x 0,14 mm² + 2 x 0,5 mm² CE

Marking for SL 808 C 08080112: SAB BRÖCKSKES · D-VIERSEN · SL 808 C 10 x 0,14 mm² + 2 x 0,5 mm² CE

Application

SL 808 C is a PE/PVC transmission cable with space saving application and overall copper screen. This flexible connection cable e.g. for speedo, brake, temperature control in motors, for continuously flexible applications in automation technology, and control and product engineering.

Outstanding features

  • good EMC characteristics
  • high functionality
  • space-saving application
  • good handling

Additional information

suitable for resolvers and shaft encoders

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE L/MD acc. to EN 50290-2-23 + VDE 0819-103

Colour code

coloured

Stranding

in layers or pairwise

Screen

acc. to dimension:

pairs screened or wrapped with tinned copper braid

Wrapping

PETP-foil

Stranding

cores/pairs twisted together in layers

Wrapping

PETP-foil

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE L/MD acc. to EN 50290-2-23 + VDE 0819-103

Colour code

coloured

Stranding

in layers or pairwise

Screen

acc. to dimension:

pairs screened or wrapped with tinned copper braid

Wrapping

PETP-foil

Stranding

cores/pairs twisted together in layers

Wrapping

PETP-foil

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Sheath colour Largest single
wire-ø
Outer-ø ± 10% Copper figure Cable weight ≈
080800094 x 2 x 0,25 + 2 x 0,50RAL 70000,16/0,21 mm8,1 mm53,7 kg/km82 kg/km Send inquiry
080800104 x 2 x 0,25 + 2 x 1,00RAL 70000,16/0,21 mm8,4 mm63,3 kg/km93 kg/km Send inquiry
080800124 x 2 x 0,14 + 4 x 0,50RAL 70000,11/0,21 mm8,3 mm54,9 kg/km85 kg/km Send inquiry
0808011210 x 0,14 + 2 x 0,50RAL 70000,11/0,21 mm7,4 mm44,0 kg/km73 kg/km Send inquiry
0808011410 x 0,14 + 4 x 0,50RAL 70000,11/0,21 mm8,0 mm57,5 kg/km92 kg/km Send inquiry
080800134 x 2 x 0,38 + 4 x 0,50RAL 70000,21 mm10,1 mm78,7 kg/km128 kg/km Send inquiry
080800203 x (2 x 0,14 C) + 2 x 1,00RAL 70000,11/0,21 mm8,2 mm77,9 kg/km100 kg/km Send inquiry
080800223 x (2 x 0,14 C) + 2 x (0,50 C)RAL 70000,11/0,21 mm8,2 mm81,9 kg/km100 kg/km Send inquiry
item no.
Dimension
Sheath colour
Largest single
wire-ø
Outer-ø ± 10%
Copper figure
Cable weight ≈
08080009
4 x 2 x 0,25 + 2 x 0,50
RAL 7000
0,16/0,21 mm
8,1 mm
53,7 kg/km
82 kg/km
08080010
4 x 2 x 0,25 + 2 x 1,00
RAL 7000
0,16/0,21 mm
8,4 mm
63,3 kg/km
93 kg/km
08080012
4 x 2 x 0,14 + 4 x 0,50
RAL 7000
0,11/0,21 mm
8,3 mm
54,9 kg/km
85 kg/km
08080112
10 x 0,14 + 2 x 0,50
RAL 7000
0,11/0,21 mm
7,4 mm
44,0 kg/km
73 kg/km
08080114
10 x 0,14 + 4 x 0,50
RAL 7000
0,11/0,21 mm
8,0 mm
57,5 kg/km
92 kg/km
08080013
4 x 2 x 0,38 + 4 x 0,50
RAL 7000
0,21 mm
10,1 mm
78,7 kg/km
128 kg/km
08080020
3 x (2 x 0,14 C) + 2 x 1,00
RAL 7000
0,11/0,21 mm
8,2 mm
77,9 kg/km
100 kg/km
08080022
3 x (2 x 0,14 C) + 2 x (0,50 C)
RAL 7000
0,11/0,21 mm
8,2 mm
81,9 kg/km
100 kg/km

Other dimensions and colours are possible on request.
