SL 810

PVC motor connection cable 0.6/1 kV

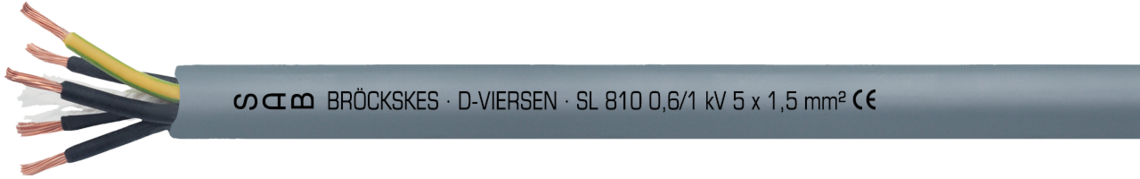

Marking for SL 810 08100415: SAB BRÖCKSKES · D-VIERSEN · SL 810 0,6/1 kV 5 x 1,5 mm² CE

Marking for SL 810 08100415: SAB BRÖCKSKES · D-VIERSEN · SL 810 0,6/1 kV 5 x 1,5 mm² CE

Application

SL 810  is a PVC motor connection cable with high functionality 0.6/1 kV. It is recommended for use in automation technology,control and product engineering, machine and industrial plant construction, motor construction, and on drive systems.

Outstanding features

  • high functionality
  • good handling

Additional information

For DNC motors on frequency converters

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
081004154 x 1,50 mm²0,26 mm9,6 mm57,6 kg/km142 kg/km Send inquiry
081004254 x 2,50 mm²0,26 mm11,4 mm96,0 kg/km210 kg/km Send inquiry
081004404 x 4,00 mm²0,31 mm13,3 mm153,6 kg/km302 kg/km Send inquiry
081004604 x 6,00 mm²0,31 mm14,9 mm230,4 kg/km407 kg/km Send inquiry
081004704 x 10,0 mm²0,41 mm20,7 mm384,0 kg/km752 kg/km Send inquiry
081004804 x 16,0 mm²0,41 mm24,1 mm614,4 kg/km1069 kg/km Send inquiry
081004904 x 25,0 mm²0,41 mm29,3 mm960,0 kg/km1662 kg/km Send inquiry
081004954 x 35,0 mm²0,41 mm32,6 mm1344,0 kg/km2197 kg/km Send inquiry
081004964 x 50,0 mm²0,41 mm37,2 mm1920,0 kg/km3001 kg/km Send inquiry
081005155 x 1,50 mm²0,26 mm10,9 mm72,0 kg/km182 kg/km Send inquiry
081005255 x 2,50 mm²0,26 mm12,5 mm120,0 kg/km257 kg/km Send inquiry
081005405 x 4,00 mm²0,31 mm14,5 mm192,0 kg/km368 kg/km Send inquiry
081005605 x 6,00 mm²0,31 mm16,3 mm288,0 kg/km497 kg/km Send inquiry
081005705 x 10,0 mm²0,41 mm22,6 mm480,0 kg/km915 kg/km Send inquiry
081005805 x 16,0 mm²0,41 mm26,4 mm768,0 kg/km1309 kg/km Send inquiry
081005905 x 25,0 mm²0,41 mm32,1 mm1200,0 kg/km2039 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
08100415
4 x 1,50 mm²
0,26 mm
9,6 mm
57,6 kg/km
142 kg/km
08100425
4 x 2,50 mm²
0,26 mm
11,4 mm
96,0 kg/km
210 kg/km
08100440
4 x 4,00 mm²
0,31 mm
13,3 mm
153,6 kg/km
302 kg/km
08100460
4 x 6,00 mm²
0,31 mm
14,9 mm
230,4 kg/km
407 kg/km
08100470
4 x 10,0 mm²
0,41 mm
20,7 mm
384,0 kg/km
752 kg/km
08100480
4 x 16,0 mm²
0,41 mm
24,1 mm
614,4 kg/km
1069 kg/km
08100490
4 x 25,0 mm²
0,41 mm
29,3 mm
960,0 kg/km
1662 kg/km
08100495
4 x 35,0 mm²
0,41 mm
32,6 mm
1344,0 kg/km
2197 kg/km
08100496
4 x 50,0 mm²
0,41 mm
37,2 mm
1920,0 kg/km
3001 kg/km
08100515
5 x 1,50 mm²
0,26 mm
10,9 mm
72,0 kg/km
182 kg/km
08100525
5 x 2,50 mm²
0,26 mm
12,5 mm
120,0 kg/km
257 kg/km
08100540
5 x 4,00 mm²
0,31 mm
14,5 mm
192,0 kg/km
368 kg/km
08100560
5 x 6,00 mm²
0,31 mm
16,3 mm
288,0 kg/km
497 kg/km
08100570
5 x 10,0 mm²
0,41 mm
22,6 mm
480,0 kg/km
915 kg/km
08100580
5 x 16,0 mm²
0,41 mm
26,4 mm
768,0 kg/km
1309 kg/km
08100590
5 x 25,0 mm²
0,41 mm
32,1 mm
1200,0 kg/km
2039 kg/km

Other dimensions and colours are possible on request.
