PUR motor connection cable with PVC cores 0.6/1 kV

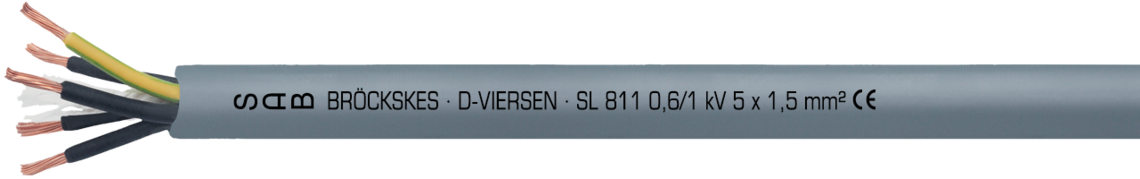

Marking for SL 811 08110415: SAB BRÖCKSKES · D-VIERSEN · SL 811 0,6/1 kV 5 x 1,5 mm² CE

Marking for SL 811 08110415: SAB BRÖCKSKES · D-VIERSEN · SL 811 0,6/1 kV 5 x 1,5 mm² CE

Application

SL 811 is a PUR motor connection cable with PVC cores 0.6/1 kV. It is recommended for use in automation technology, control and product engineering, machine and industrial plant construction, motor construction, and on drive systems.

Outstanding features

  • flexible
  • rugged sheath
  • oil resistant

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 10 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 10 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Dimensions

item no.

no. of cores x
cross section

AWG

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

081104154 x 1,5 mm²16 / 4c0,16 mm9,3 mm57,6 kg/km125 kg/km Send inquiry
081104254 x 2,5 mm²14 / 4c0,16 mm11,1 mm96 kg/km191 kg/km Send inquiry
081104404 x 4 mm²12 / 4c0,16 mm12,9 mm153,6 kg/km268 kg/km Send inquiry
081104604 x 6 mm²10 / 4c0,21 mm14,7 mm230,4 kg/km356 kg/km Send inquiry
081104704 x 10 mm²8 / 4c0,21 mm18,5 mm384 kg/km601 kg/km Send inquiry
081104804 x 16 mm²6 / 4c0,21 mm21,9 mm614,4 kg/km862 kg/km Send inquiry
081104904 x 25 mm²4 / 4c0,21 mm26,2 mm960 kg/km1297 kg/km Send inquiry
081104954 x 35 mm²2 / 4c0,21 mm29,5 mm1344 kg/km1751 kg/km Send inquiry
081104964 x 50 mm²1 / 4c0,31 mm35 mm1920 kg/km2423 kg/km Send inquiry
081105155 x 1,5 mm²16 / 5c0,16 mm10,6 mm72 kg/km154 kg/km Send inquiry
081105255 x 2,5 mm²14 / 5c0,16 mm12,8 mm120 kg/km230 kg/km Send inquiry
081105405 x 4 mm²12 / 5c0,16 mm14,2 mm192 kg/km317 kg/km Send inquiry
081105605 x 6 mm²10 / 5c0,21 mm16,7 mm288 kg/km449 kg/km Send inquiry
081105705 x 10 mm²8 / 5c0,21 mm20,4 mm480 kg/km739 kg/km Send inquiry
081105805 x 16 mm²6 / 5c0,21 mm24,6 mm768 kg/km1079 kg/km Send inquiry
081105905 x 25 mm²4 / 5c0,21 mm28,9 mm1200 kg/km1597 kg/km Send inquiry
item no.
no. of cores x
cross section
AWG
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
08110415
4 x 1,5 mm²
16 / 4c
0,16 mm
9,3 mm
57,6 kg/km
125 kg/km
08110425
4 x 2,5 mm²
14 / 4c
0,16 mm
11,1 mm
96 kg/km
191 kg/km
08110440
4 x 4 mm²
12 / 4c
0,16 mm
12,9 mm
153,6 kg/km
268 kg/km
08110460
4 x 6 mm²
10 / 4c
0,21 mm
14,7 mm
230,4 kg/km
356 kg/km
08110470
4 x 10 mm²
8 / 4c
0,21 mm
18,5 mm
384 kg/km
601 kg/km
08110480
4 x 16 mm²
6 / 4c
0,21 mm
21,9 mm
614,4 kg/km
862 kg/km
08110490
4 x 25 mm²
4 / 4c
0,21 mm
26,2 mm
960 kg/km
1297 kg/km
08110495
4 x 35 mm²
2 / 4c
0,21 mm
29,5 mm
1344 kg/km
1751 kg/km
08110496
4 x 50 mm²
1 / 4c
0,31 mm
35 mm
1920 kg/km
2423 kg/km
08110515
5 x 1,5 mm²
16 / 5c
0,16 mm
10,6 mm
72 kg/km
154 kg/km
08110525
5 x 2,5 mm²
14 / 5c
0,16 mm
12,8 mm
120 kg/km
230 kg/km
08110540
5 x 4 mm²
12 / 5c
0,16 mm
14,2 mm
192 kg/km
317 kg/km
08110560
5 x 6 mm²
10 / 5c
0,21 mm
16,7 mm
288 kg/km
449 kg/km
08110570
5 x 10 mm²
8 / 5c
0,21 mm
20,4 mm
480 kg/km
739 kg/km
08110580
5 x 16 mm²
6 / 5c
0,21 mm
24,6 mm
768 kg/km
1079 kg/km
08110590
5 x 25 mm²
4 / 5c
0,21 mm
28,9 mm
1200 kg/km
1597 kg/km

Other dimensions and colours are possible on request.
