SL 812 C

PVC motor connection cable with overall copper screen 0.6/1 kV

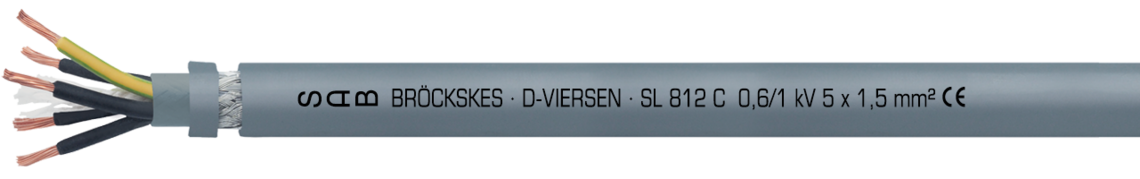

Marking for SL 812 C 08120415: SAB BRÖCKSKES · D-VIERSEN · SL 812 C 0,6/1 kV 5 x 1,5 mm² CE

Marking for SL 812 C 08120415: SAB BRÖCKSKES · D-VIERSEN · SL 812 C 0,6/1 kV 5 x 1,5 mm² CE

Application

SL 812 C is a PVC motor connection cable with high functionality and overall copper screen 0.6/1 kV. It is recommended for use in automation technology,control and product engineering, machine and industrial plant construction, motor construction, on drive systems, and as power supply cable betweem frequency converter and servo motor.

Outstanding features

  • very good EMC characteristics
  • high functionality
  • good handling

Additional information

for DNC motors on frequency converters

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheat

PVC

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheat

PVC

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
081204154 x 1,50 mm²0,26 mm12,0 mm111,7 kg/km232 kg/km Send inquiry
081204254 x 2,50 mm²0,26 mm13,4 mm155,7 kg/km301 kg/km Send inquiry
081204404 x 4,00 mm²0,31 mm15,1 mm250,8 kg/km410 kg/km Send inquiry
081204604 x 6,00 mm²0,31 mm16,7 mm328,9 kg/km521 kg/km Send inquiry
081204704 x 10,0 mm²0,41 mm20,9 mm522,2 kg/km827 kg/km Send inquiry
081204804 x 16,0 mm²0,41 mm24,7 mm783,4 kg/km1175 kg/km Send inquiry
081204904 x 25,0 mm²0,41 mm29,4 mm1157,7 kg/km1743 kg/km Send inquiry
081204954 x 35,0 mm²0,41 mm33,2 mm1565,8 kg/km2306 kg/km Send inquiry
081204964 x 50,0 mm²0,41 mm37,5 mm2165,5 kg/km2800 kg/km Send inquiry
081205155 x 1,50 mm²0,26 mm12,9 mm131,5 kg/km288 kg/km Send inquiry
081205255 x 2,50 mm²0,26 mm14,7 mm206,0 kg/km366 kg/km Send inquiry
081205405 x 4,00 mm²0,31 mm16,7 mm290,5 kg/km491 kg/km Send inquiry
081205605 x 6,00 mm²0,31 mm18,1 mm399,2 kg/km615 kg/km Send inquiry
081205705 x 10,0 mm²0,41 mm22,8 mm645,5 kg/km890 kg/km Send inquiry
081205805 x 16,0 mm²0,41 mm27,0 mm942,8 kg/km1393 kg/km Send inquiry
081205905 x 25,0 mm²0,41 mm32,3 mm1419,5 kg/km2087 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
08120415
4 x 1,50 mm²
0,26 mm
12,0 mm
111,7 kg/km
232 kg/km
08120425
4 x 2,50 mm²
0,26 mm
13,4 mm
155,7 kg/km
301 kg/km
08120440
4 x 4,00 mm²
0,31 mm
15,1 mm
250,8 kg/km
410 kg/km
08120460
4 x 6,00 mm²
0,31 mm
16,7 mm
328,9 kg/km
521 kg/km
08120470
4 x 10,0 mm²
0,41 mm
20,9 mm
522,2 kg/km
827 kg/km
08120480
4 x 16,0 mm²
0,41 mm
24,7 mm
783,4 kg/km
1175 kg/km
08120490
4 x 25,0 mm²
0,41 mm
29,4 mm
1157,7 kg/km
1743 kg/km
08120495
4 x 35,0 mm²
0,41 mm
33,2 mm
1565,8 kg/km
2306 kg/km
08120496
4 x 50,0 mm²
0,41 mm
37,5 mm
2165,5 kg/km
2800 kg/km
08120515
5 x 1,50 mm²
0,26 mm
12,9 mm
131,5 kg/km
288 kg/km
08120525
5 x 2,50 mm²
0,26 mm
14,7 mm
206,0 kg/km
366 kg/km
08120540
5 x 4,00 mm²
0,31 mm
16,7 mm
290,5 kg/km
491 kg/km
08120560
5 x 6,00 mm²
0,31 mm
18,1 mm
399,2 kg/km
615 kg/km
08120570
5 x 10,0 mm²
0,41 mm
22,8 mm
645,5 kg/km
890 kg/km
08120580
5 x 16,0 mm²
0,41 mm
27,0 mm
942,8 kg/km
1393 kg/km
08120590
5 x 25,0 mm²
0,41 mm
32,3 mm
1419,5 kg/km
2087 kg/km

Other dimensions and colours are possible on request.
