SL 813 C

PUR motor connection cable with PVC cores and overall copper screen 0.6/1 kV

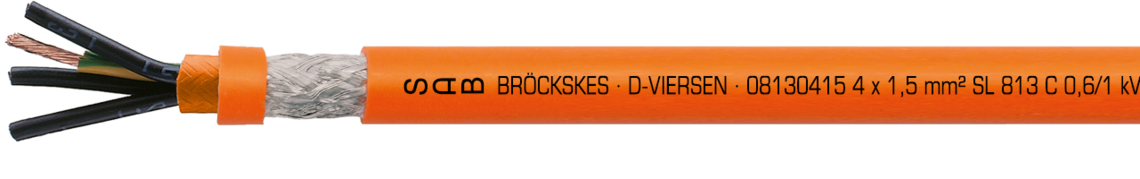

Marking for SL 813 C 08130415: SAB BRÖCKSKES · D-VIERSEN · 08130415 4 x 1,5 mm² SL 813 C 0,6/1 kV CE

Marking for SL 813 C 08130415: SAB BRÖCKSKES · D-VIERSEN · 08130415 4 x 1,5 mm² SL 813 C 0,6/1 kV CE

Application

SL 813 C  is a PUR power supply cable with PVC cores and overall copper screen 0.6/1 kV. It is recommended for use in automation technology, control and product engineering, machine and industrial plant construction, motor construction, on drive systems, and as power supply cable between frequency converter and servo motor.

Outstanding features

  • very good EMC characteristics
  • flexible
  • rugged sheath
  • oil resistant
  • DESINA® colours

Additional information

for DNC motors on frequency converters

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70 °C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70 °C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Dimensions

item no. no. of cores x cross section AWG largest single wire-ø outer-ø ± 5% copper figure cable weight ca.
081304154 x 1,5 mm²16 / 4c0,16 mm12,4 mm113,8 kg/km228 kg/km Send inquiry
081304254 x 2,5 mm²14 / 4c0,16 mm15,4 mm165,9 kg/km345 kg/km Send inquiry
081304404 x 4 mm²12 / 4c0,16 mm17 mm257,3 kg/km449 kg/km Send inquiry
081304604 x 6 mm²10 / 4c0,21 mm19,2 mm346,3 kg/km594 kg/km Send inquiry
081304704 x 10 mm²8 / 4c0,21 mm23 mm524,5 kg/km877 kg/km Send inquiry
081304804 x 16 mm²6 / 4c0,21 mm26,4 mm777 kg/km1242 kg/km Send inquiry
081304904 x 25 mm²4 / 4c0,21 mm30,7 mm1156,8 kg/km1763 kg/km Send inquiry
081304954 x 35 mm²2 / 4c0,21 mm34 mm1574,3 kg/km2258 kg/km Send inquiry
081304964 x 50 mm²1 / 4c0,31 mm39,3 mm2177,9 kg/km3076 kg/km Send inquiry
081305155 x 1,5 mm²16 / 5c0,16 mm13,7 mm139,4 kg/km286 kg/km Send inquiry
081305255 x 2,5 mm²14 / 5c0,16 mm16,7 mm222,8 kg/km420 kg/km Send inquiry
081305405 x 4 mm²12 / 5c0,16 mm18,7 mm306,5 kg/km575 kg/km Send inquiry
081305605 x 6 mm²10 / 5c0,21 mm20,8 mm422,1 kg/km733 kg/km Send inquiry
081305705 x 10 mm²8 / 5c0,21 mm25,3 mm638,2 kg/km1097 kg/km Send inquiry
081305805 x 16 mm²6 / 5c0,21 mm28,7 mm955,6 kg/km1524 kg/km Send inquiry
081305905 x 25 mm²4 / 5c0,21 mm33,4 mm1427,1 kg/km2172 kg/km Send inquiry
081305955 x 35 mm²2 / 5c0,21 mm37,4 mm1927,5 kg/km2748 kg/km Send inquiry
item no.
no. of cores x cross section
AWG
largest single wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
08130415
4 x 1,5 mm²
16 / 4c
0,16 mm
12,4 mm
113,8 kg/km
228 kg/km
08130425
4 x 2,5 mm²
14 / 4c
0,16 mm
15,4 mm
165,9 kg/km
345 kg/km
08130440
4 x 4 mm²
12 / 4c
0,16 mm
17 mm
257,3 kg/km
449 kg/km
08130460
4 x 6 mm²
10 / 4c
0,21 mm
19,2 mm
346,3 kg/km
594 kg/km
08130470
4 x 10 mm²
8 / 4c
0,21 mm
23 mm
524,5 kg/km
877 kg/km
08130480
4 x 16 mm²
6 / 4c
0,21 mm
26,4 mm
777 kg/km
1242 kg/km
08130490
4 x 25 mm²
4 / 4c
0,21 mm
30,7 mm
1156,8 kg/km
1763 kg/km
08130495
4 x 35 mm²
2 / 4c
0,21 mm
34 mm
1574,3 kg/km
2258 kg/km
08130496
4 x 50 mm²
1 / 4c
0,31 mm
39,3 mm
2177,9 kg/km
3076 kg/km
08130515
5 x 1,5 mm²
16 / 5c
0,16 mm
13,7 mm
139,4 kg/km
286 kg/km
08130525
5 x 2,5 mm²
14 / 5c
0,16 mm
16,7 mm
222,8 kg/km
420 kg/km
08130540
5 x 4 mm²
12 / 5c
0,16 mm
18,7 mm
306,5 kg/km
575 kg/km
08130560
5 x 6 mm²
10 / 5c
0,21 mm
20,8 mm
422,1 kg/km
733 kg/km
08130570
5 x 10 mm²
8 / 5c
0,21 mm
25,3 mm
638,2 kg/km
1097 kg/km
08130580
5 x 16 mm²
6 / 5c
0,21 mm
28,7 mm
955,6 kg/km
1524 kg/km
08130590
5 x 25 mm²
4 / 5c
0,21 mm
33,4 mm
1427,1 kg/km
2172 kg/km
08130595
5 x 35 mm²
2 / 5c
0,21 mm
37,4 mm
1927,5 kg/km
2748 kg/km

Other dimensions and colours are possible on request.
