SL 820

PUR motor connection cable with TPE cores 0.6/1 kV

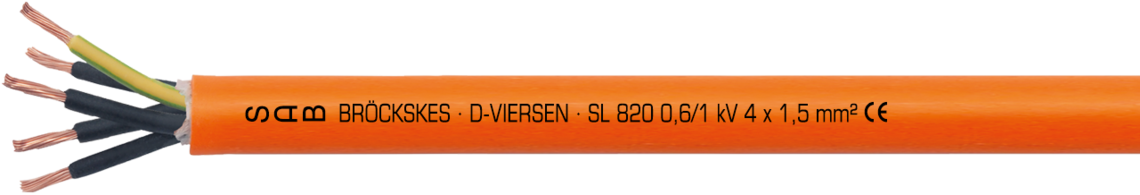

Marking for SL 820 C 08200415: SAB BRÖCKSKES · D-VIERSEN · SL 820 0,6/1 kV 4 x 1,5 mm² CE

Marking for SL 820 C 08200415: SAB BRÖCKSKES · D-VIERSEN · SL 820 0,6/1 kV 4 x 1,5 mm² CE

Application

SL 820  is a PUR motor connection cable with TPE cores 0.6/1 kV and very long service life. This power supply cable is recommended for use in automation technology, control and product engineering, machine and industrial plant construction, motor construction, and on drive systems.

Outstanding features

  • very high flexibility
  • suitable for cable tracks
  • oil resistant
  • very long service life
  • adhesion-free installation
  • halogen-free
  • labs uncritical (labs = enamel moisturing interfering substances)
  • flexible at low temperatures

Additional information

for DNC motors on frequency converters

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 10 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Weather resistance:

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 10 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Weather resistance:

very good

Dimensions

item no.

no. of cores x
cross section

AWG

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

082004154 x 1,50 mm²16 / 4c0,16 mm8,5 mm57,6 kg/km102 kg/km Send inquiry
082005155 x 1,50 mm²16 / 5c0,16 mm9,3 mm72,0 kg/km125 kg/km Send inquiry
082004254 x 2,50 mm²14 / 4c0,16 mm10,7 mm96,0 kg/km160 kg/km Send inquiry
082005255 x 2,50 mm²14 / 5c0,16 mm11,4 mm120,0 kg/km193 kg/km Send inquiry
082004404 x 4,00 mm²12 / 4c0,16 mm12,4 mm153,6 kg/km247 kg/km Send inquiry
082005405 x 4,00 mm²12 / 5c0,16 mm13,2 mm192,0 kg/km290 kg/km Send inquiry
082004604 x 6,00 mm²10 / 4c0,21 mm15,1 mm230,4 kg/km351 kg/km Send inquiry
082005605 x 6,00 mm²10 / 5c0,21 mm16,5 mm288,0 kg/km443 kg/km Send inquiry
082004704 x 10,0 mm²8 / 4c0,21 mm17,5 mm384,0 kg/km552 kg/km Send inquiry
082005705 x 10,0 mm²8 / 5c0,21 mm19,2 mm480,0 kg/km641 kg/km Send inquiry
082004804 x 16,0 mm²6 / 4c0,21 mm21,2 mm614,4 kg/km796 kg/km Send inquiry
082005805 x 16,0 mm²6 / 5c0,21 mm23,3 mm768,0 kg/km979 kg/km Send inquiry
082004904 x 25,0 mm²4 / 4c0,21 mm24,3 mm960,0 kg/km1161 kg/km Send inquiry
082005905 x 25,0 mm²4 / 5c0,21 mm26,8 mm1200,0 kg/km1433 kg/km Send inquiry
082004954 x 35,0 mm²2 / 4c0,21 mm28,6 mm1344,0 kg/km1588 kg/km Send inquiry
082004964 x 50,0 mm²1 / 4c0,31 mm32,3 mm1920,0 kg/km2212 kg/km Send inquiry
item no.
no. of cores x
cross section
AWG
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
08200415
4 x 1,50 mm²
16 / 4c
0,16 mm
8,5 mm
57,6 kg/km
102 kg/km
08200515
5 x 1,50 mm²
16 / 5c
0,16 mm
9,3 mm
72,0 kg/km
125 kg/km
08200425
4 x 2,50 mm²
14 / 4c
0,16 mm
10,7 mm
96,0 kg/km
160 kg/km
08200525
5 x 2,50 mm²
14 / 5c
0,16 mm
11,4 mm
120,0 kg/km
193 kg/km
08200440
4 x 4,00 mm²
12 / 4c
0,16 mm
12,4 mm
153,6 kg/km
247 kg/km
08200540
5 x 4,00 mm²
12 / 5c
0,16 mm
13,2 mm
192,0 kg/km
290 kg/km
08200460
4 x 6,00 mm²
10 / 4c
0,21 mm
15,1 mm
230,4 kg/km
351 kg/km
08200560
5 x 6,00 mm²
10 / 5c
0,21 mm
16,5 mm
288,0 kg/km
443 kg/km
08200470
4 x 10,0 mm²
8 / 4c
0,21 mm
17,5 mm
384,0 kg/km
552 kg/km
08200570
5 x 10,0 mm²
8 / 5c
0,21 mm
19,2 mm
480,0 kg/km
641 kg/km
08200480
4 x 16,0 mm²
6 / 4c
0,21 mm
21,2 mm
614,4 kg/km
796 kg/km
08200580
5 x 16,0 mm²
6 / 5c
0,21 mm
23,3 mm
768,0 kg/km
979 kg/km
08200490
4 x 25,0 mm²
4 / 4c
0,21 mm
24,3 mm
960,0 kg/km
1161 kg/km
08200590
5 x 25,0 mm²
4 / 5c
0,21 mm
26,8 mm
1200,0 kg/km
1433 kg/km
08200495
4 x 35,0 mm²
2 / 4c
0,21 mm
28,6 mm
1344,0 kg/km
1588 kg/km
08200496
4 x 50,0 mm²
1 / 4c
0,31 mm
32,3 mm
1920,0 kg/km
2212 kg/km

Other dimensions and colours are possible on request.
