SL 823 C

PUR motor connection cable with TPE cores and overall copper screen 0.6/1 kV

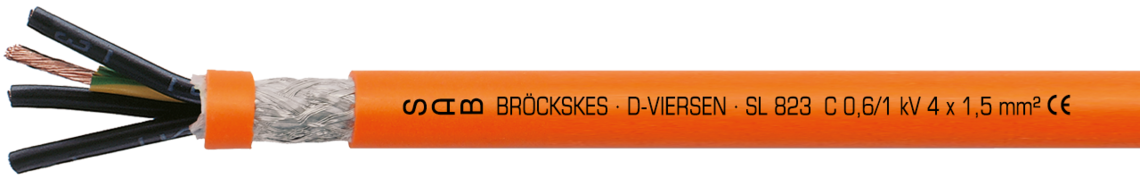

Marking for SL 823 C 08230415: SAB BRÖCKSKES · D-VIERSEN · SL 823 C 0,6/1 kV 4 x 1,5 mm² CE

Marking for SL 823 C 08230415: SAB BRÖCKSKES · D-VIERSEN · SL 823 C 0,6/1 kV 4 x 1,5 mm² CE

Application

SL 823 C  is a PUR motor connection cable with TPE cores 0.6/1 kV and overall copper screen as well as flexibility at low temperatures for DNC motors on frequency converters. This power supply cable is recommended for use in industries with intelligent servo drives, e.g. automation technology, motive power, control and production engineering, handling systems, car manufacturing industry, and cable tracks.

Outstanding features

  • very good EMC characteristics
  • very high flexibility
  • suitable for cable tracks
  • oil resistant
  • very long service life
  • adhesion-free installation
  • halogen-free
  • labs uncritical (labs = enamel moisturing interfering substances)
  • flexible at low temperatures
  • DESINA colours

Additional information

for DNC motors on frequency converters

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Wrapping

two layers of non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Stranding

in layers

Wrapping

two layers of non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Technical data

Nominal voltage

Uo/U 0,6/1,0kV

Testing voltage

core/ core 4000 V

core/ screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1,0kV

Testing voltage

core/ core 4000 V

core/ screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Weather resistance

very good

Dimensions

item no.

no. of cores x
cross section

AWG

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

082304154 x 1,50 mm²16 / 4c0,16 mm9,5 mm95,8 kg/km141 kg/km Send inquiry
082304254 x 2,50 mm²14 / 4c0,16 mm11,9 mm147,0 kg/km217 kg/km Send inquiry
082304404 x 4,00 mm²12 / 4c0,16 mm13,0 mm210,2 kg/km289 kg/km Send inquiry
082304604 x 6,00 mm²10 / 4c0,21 mm15,9 mm300,5 kg/km420 kg/km Send inquiry
082304704 x 10,0 mm²8 / 4c0,21 mm18,5 mm489,9 kg/km627 kg/km Send inquiry
082304804 x 16,0 mm²6 / 4c0,21 mm22,4 mm751,3 kg/km965 kg/km Send inquiry
082304904 x 25,0 mm²4 / 4c0,21 mm25,5 mm1118,2 kg/km1363 kg/km Send inquiry
082304954 x 35,0 mm²2 / 4c0,21 mm29,5 mm1533,4 kg/km1848 kg/km Send inquiry
082304964 x 50,0 mm²1 / 4c0,31 mm34,5 mm2148,7 kg/km2553 kg/km Send inquiry
item no.
no. of cores x
cross section
AWG
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
08230415
4 x 1,50 mm²
16 / 4c
0,16 mm
9,5 mm
95,8 kg/km
141 kg/km
08230425
4 x 2,50 mm²
14 / 4c
0,16 mm
11,9 mm
147,0 kg/km
217 kg/km
08230440
4 x 4,00 mm²
12 / 4c
0,16 mm
13,0 mm
210,2 kg/km
289 kg/km
08230460
4 x 6,00 mm²
10 / 4c
0,21 mm
15,9 mm
300,5 kg/km
420 kg/km
08230470
4 x 10,0 mm²
8 / 4c
0,21 mm
18,5 mm
489,9 kg/km
627 kg/km
08230480
4 x 16,0 mm²
6 / 4c
0,21 mm
22,4 mm
751,3 kg/km
965 kg/km
08230490
4 x 25,0 mm²
4 / 4c
0,21 mm
25,5 mm
1118,2 kg/km
1363 kg/km
08230495
4 x 35,0 mm²
2 / 4c
0,21 mm
29,5 mm
1533,4 kg/km
1848 kg/km
08230496
4 x 50,0 mm²
1 / 4c
0,31 mm
34,5 mm
2148,7 kg/km
2553 kg/km

Other dimensions and colours are possible on request.
