SL 843 C

TPE/PUR transmission cable with overall copper screen

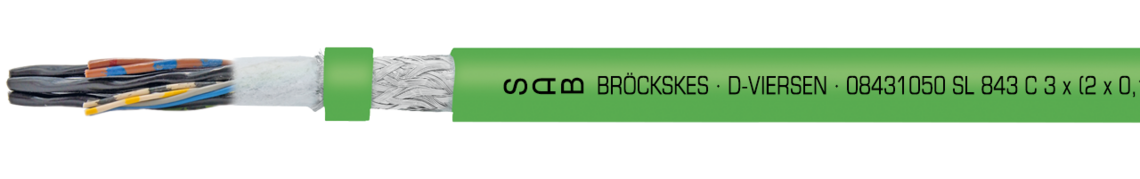

Marking for SL 843 C 08431050: SAB BRÖCKSKES · D-VIERSEN · 08431050 SL 843 C 3 x (2 x 0,14 mm² D) + 4 x 0,22 mm² + 2 x 0,5mm² DESINA UL AWM-Style 20235 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 CE

Marking for SL 843 C 08431050: SAB BRÖCKSKES · D-VIERSEN · 08431050 SL 843 C 3 x (2 x 0,14 mm² D) + 4 x 0,22 mm² + 2 x 0,5mm² DESINA UL AWM-Style 20235 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 CE

Application

SL 843 C is a TPE/PUR transmission cable with oil resistance and overall copper screen. This resolver & encoder cable is a highly flexible, mobile connection cable for e.g. speedo, brake, temperature control in motors, for continuously flexible applications in automation technology, control and production engineering, in cable tracks on wood-working machines, machine and industrial plant construction, even with high mechanical demands and in dry, damp, and wet conditions as well as at low temperatures.

Outstanding features

  • UL recognized, CSA approval
  • good EMC characteristics
  • high flexibility
  • suitable for cable tracks
  • oil resistant
  • long service life
  • adhesion-free installation
  • halogen-free
  • PWIS uncritical (PWIS= paint-wetting impairment substances)
  • DESINA® colours

Additional information

Suitable for resolvers and shaft encoders

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

TPE

Colour code

coloured

Stranding

in layers or pairwise

Screen

acc. to dimension: pairs screened or wrapped with tinned copper braid

Inner sheath

TPE over screened pairs

Stranding

cores/pairs twisted together in layers

Wrapping

one or two layers non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003) resp. green (RAL 6018)

Conductor

bare copper strands with reference to VDE 0812

Insulation

TPE

Colour code

coloured

Stranding

in layers or pairwise

Screen

acc. to dimension: pairs screened or wrapped with tinned copper braid

Inner sheath

TPE over screened pairs

Stranding

cores/pairs twisted together in layers

Wrapping

one or two layers non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003) resp. green (RAL 6018)

Technical data

Peak operating voltage

max. 350 V

Voltage

UL/CSA: 300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL/CSA FT1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage

UL/CSA: 300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL/CSA FT1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Description Dimension Sheath colour Largest single
wire-ø
Outer-ø Copper figure Cable weight ≈
08430009Indramat4 x 2 x 0,25 + 2 x 0,50RAL 20030,11/0,16 mm8,8 ± 0,3 mm54,7 kg/km92 kg/km Send inquiry
08430010Indramat4 x 2 x 0,25 + 2 x 1,00RAL 20030,11/0,16 mm8,8 ± 0,3 mm63,5 kg/km96 kg/km Send inquiry
08430160Indramat3 x (2 x 0,25) D + 3 x 0,25 + 2 x 1,00RAL 20030,11/0,16 mm10,0 ± 0,3 mm85,6 kg/km132 kg/km Send inquiry
08430040Indramat3 x (2 x 0,25) DRAL 20030,11 mm8,7 ± 0,3 mm57,7 kg/km94 kg/km Send inquiry
08430060Indramat4 x 2 x 0,14 + (4 x 0,14) D + 4 x 1,0RAL 20030,11/0,16 mm9,8 ± 0,3 mm88,7 kg/km136 kg/km Send inquiry
08430012Siemens4 x 2 x 0,14 + 4 x 0,50=I1330,11/0,16 mm9,1 ± 10% mm56,9 kg/km101 kg/km Send inquiry
08430112Siemens10 x 0,14 + 2 x 0,50RAL 60180,11/0,16 mm8,5 ± 10% mm46,8 kg/km90 kg/km Send inquiry
08430114Siemens10 x 0,14 + 4 x 0,50RAL 60180,11/0,16 mm9,0 ± 10% mm59,5 kg/km106 kg/km Send inquiry
08430006Siemens3 x 2 x 0,25 + 2 x 0,50RAL 60180,11/0,16 mm8,7 ± 10% mm50,1 kg/km89 kg/km Send inquiry
08430013Siemens4 x 2 x 0,38 + 4 x 0,50RAL 60180,11/0,16 mm10,3 ± 10% mm80,6 kg/km135 kg/km Send inquiry
08430020Siemens3 x (2 x 0,14) C + 2 x 1,00RAL 60180,11/0,16 mm10,0 ± 10% mm85,8 kg/km127 kg/km Send inquiry
08430022Siemens3 x (2 x 0,14) C + 2 x (0,50 C)RAL 60180,11/0,16 mm10,1 ± 10% mm93,0 kg/km134 kg/km Send inquiry
08431050Siemens3 x (2 x 0,14) D + 4 x 0,14 + 4 x 0,22 + 2 x 0,50RAL 60180,11 mm10,7 ± 10% mm97,9 kg/km129 kg/km Send inquiry
08430070Siemens3 x (2 x 0,14) D + 4 x 0,14 + 2 x 0,50RAL 60180,11/0,16 mm10,1 ± 10% mm71,5 kg/km122 kg/km Send inquiry
08430310Siemens12 x 0,22RAL 60180,11 mm8,5 ± 10% mm46,4 kg/km86 kg/km Send inquiry
08430212Siemens2 x 2 x 0,18RAL 60180,11 mm6,7 ± 10% mm24,2 kg/km50 kg/km Send inquiry
08430214Siemens4 x 2 x 0,18RAL 60180,11 mm8,2 ± 10% mm34,9 kg/km71 kg/km Send inquiry
08430216Siemens8 x 2 x 0,18RAL 60180,11 mm9,7 ± 10% mm55,2 kg/km104 kg/km Send inquiry
item no.
Description
Dimension
Sheath colour
Largest single
wire-ø
Outer-ø
Copper figure
Cable weight ≈
08430009
Indramat
4 x 2 x 0,25 + 2 x 0,50
RAL 2003
0,11/0,16 mm
8,8 ± 0,3 mm
54,7 kg/km
92 kg/km
08430010
Indramat
4 x 2 x 0,25 + 2 x 1,00
RAL 2003
0,11/0,16 mm
8,8 ± 0,3 mm
63,5 kg/km
96 kg/km
08430160
Indramat
3 x (2 x 0,25) D + 3 x 0,25 + 2 x 1,00
RAL 2003
0,11/0,16 mm
10,0 ± 0,3 mm
85,6 kg/km
132 kg/km
08430040
Indramat
3 x (2 x 0,25) D
RAL 2003
0,11 mm
8,7 ± 0,3 mm
57,7 kg/km
94 kg/km
08430060
Indramat
4 x 2 x 0,14 + (4 x 0,14) D + 4 x 1,0
RAL 2003
0,11/0,16 mm
9,8 ± 0,3 mm
88,7 kg/km
136 kg/km
08430012
Siemens
4 x 2 x 0,14 + 4 x 0,50
=I133
0,11/0,16 mm
9,1 ± 10% mm
56,9 kg/km
101 kg/km
08430112
Siemens
10 x 0,14 + 2 x 0,50
RAL 6018
0,11/0,16 mm
8,5 ± 10% mm
46,8 kg/km
90 kg/km
08430114
Siemens
10 x 0,14 + 4 x 0,50
RAL 6018
0,11/0,16 mm
9,0 ± 10% mm
59,5 kg/km
106 kg/km
08430006
Siemens
3 x 2 x 0,25 + 2 x 0,50
RAL 6018
0,11/0,16 mm
8,7 ± 10% mm
50,1 kg/km
89 kg/km
08430013
Siemens
4 x 2 x 0,38 + 4 x 0,50
RAL 6018
0,11/0,16 mm
10,3 ± 10% mm
80,6 kg/km
135 kg/km
08430020
Siemens
3 x (2 x 0,14) C + 2 x 1,00
RAL 6018
0,11/0,16 mm
10,0 ± 10% mm
85,8 kg/km
127 kg/km
08430022
Siemens
3 x (2 x 0,14) C + 2 x (0,50 C)
RAL 6018
0,11/0,16 mm
10,1 ± 10% mm
93,0 kg/km
134 kg/km
08431050
Siemens
3 x (2 x 0,14) D + 4 x 0,14 + 4 x 0,22 + 2 x 0,50
RAL 6018
0,11 mm
10,7 ± 10% mm
97,9 kg/km
129 kg/km
08430070
Siemens
3 x (2 x 0,14) D + 4 x 0,14 + 2 x 0,50
RAL 6018
0,11/0,16 mm
10,1 ± 10% mm
71,5 kg/km
122 kg/km
08430310
Siemens
12 x 0,22
RAL 6018
0,11 mm
8,5 ± 10% mm
46,4 kg/km
86 kg/km
08430212
Siemens
2 x 2 x 0,18
RAL 6018
0,11 mm
6,7 ± 10% mm
24,2 kg/km
50 kg/km
08430214
Siemens
4 x 2 x 0,18
RAL 6018
0,11 mm
8,2 ± 10% mm
34,9 kg/km
71 kg/km
08430216
Siemens
8 x 2 x 0,18
RAL 6018
0,11 mm
9,7 ± 10% mm
55,2 kg/km
104 kg/km

Other dimensions and colours are possible on request.
