SL 863 C

Low capacity combined PVC motor connection cable with overall copper screen 0,6/1 kV

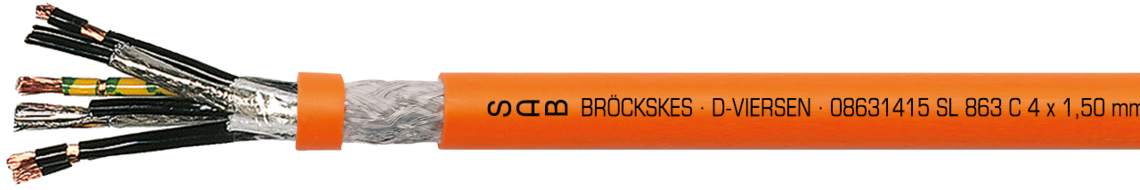

Marking for SL 863 C 08631415: SAB BRÖCKSKES · D-VIERSEN · 08631415 4 x 1,50 mm² + (2 x 1,50 mm²) UL AWM Style 21179 80°C 1000V CE

Marking for SL 863 C 08631415: SAB BRÖCKSKES · D-VIERSEN · 08631415 4 x 1,50 mm² + (2 x 1,50 mm²) UL AWM Style 21179 80°C 1000V CE

Application

Outstanding features

  • UL recognized
  • very good EMC characteristics
  • very good stripping
  • low capacity construction
  • very good oil resistance

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special Polymer

Colour code

supply cores: black cores with printing

core 1: U/L1/C/L+

core 2: V/L2

core 3: W/L3/D/L- and a green-yellow earth wire

control cores: with numbers 5+6

Stranding

control cores twisted to pair

Screen

tinned copper braid

Wrapping

PETP foil

Stranding

screened control pair and supply cores twisted together in layer

Wrapping

PETP foil

Screen

tinned copper braid

Sheath material

PVC

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special Polymer

Colour code

supply cores: black cores with printing

core 1: U/L1/C/L+

core 2: V/L2

core 3: W/L3/D/L- and a green-yellow earth wire

control cores: with numbers 5+6

Stranding

control cores twisted to pair

Screen

tinned copper braid

Wrapping

PETP foil

Stranding

screened control pair and supply cores twisted together in layer

Wrapping

PETP foil

Screen

tinned copper braid

Sheath material

PVC

Sheath colour

orange (RAL 2003)

Technical data

Nominal voltage

supply cores Uo/U 0.6/1 kV

Voltage UL

supply cores 1000 V

Peak operating voltage

control cores max. 350 V

Voltage UL

control cores 1000 V

Testing voltage

supply cores:

core/core 4000 V

core/screen 4000 V



control cores:

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -30/+70 °C

flexible application: +0/+70 °C

UL: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

supply cores Uo/U 0.6/1 kV

Voltage UL

supply cores 1000 V

Peak operating voltage

control cores max. 350 V

Voltage UL

control cores 1000 V

Testing voltage

supply cores:

core/core 4000 V

core/screen 4000 V



control cores:

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -30/+70 °C

flexible application: +0/+70 °C

UL: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension AWG
supply cores
AWG
control cores (paired)
Largest single
wire-ø
Outer-ø Copper figure Cable weight ≈
086314154 x 1,50 + (2 x 1,50)16 / 4c16 / 1pr0,26/0,26 mm10,4 mm133,4 kg/km178 kg/km Send inquiry
086314254 x 2,50 + (2 x 1,50)14 / 4c16 / 1pr0,26/0,26 mm12,2 mm196,7 kg/km256 kg/km Send inquiry
086314404 x 4,00 + (2 x 1,50)12 / 4c16 / 1pr0,31/0,26 mm13,7 mm260,0 kg/km324 kg/km Send inquiry
086314604 x 6,00 + (2 x 1,50)10 / 4c16 / 1pr0,31/0,26 mm16,2 mm374,9 kg/km472 kg/km Send inquiry
086314704 x 10,00 + (2 x 1,50)8 / 4c16 / 1pr0,41/0,26 mm18,9 mm542,3 kg/km672 kg/km Send inquiry
086314804 x 16,00 + (2 x 1,50)6 / 4c16 / 1pr0,41/0,26 mm23,3 mm802,2 kg/km975 kg/km Send inquiry
086314904 x 25,00 + (2 x 1,50)4 / 4c16 / 1pr0,41/0,26 mm26,7 mm1178,5 kg/km1363 kg/km Send inquiry
086314954 x 35,00 + (2 x 1,50)2 / 4c16 / 1pr0,41/0,26 mm29,8 mm1586,4 kg/km1789 kg/km Send inquiry
item no.
Dimension
AWG
supply cores
AWG
control cores (paired)
Largest single
wire-ø
Outer-ø
Copper figure
Cable weight ≈
08631415
4 x 1,50 + (2 x 1,50)
16 / 4c
16 / 1pr
0,26/0,26 mm
10,4 mm
133,4 kg/km
178 kg/km
08631425
4 x 2,50 + (2 x 1,50)
14 / 4c
16 / 1pr
0,26/0,26 mm
12,2 mm
196,7 kg/km
256 kg/km
08631440
4 x 4,00 + (2 x 1,50)
12 / 4c
16 / 1pr
0,31/0,26 mm
13,7 mm
260,0 kg/km
324 kg/km
08631460
4 x 6,00 + (2 x 1,50)
10 / 4c
16 / 1pr
0,31/0,26 mm
16,2 mm
374,9 kg/km
472 kg/km
08631470
4 x 10,00 + (2 x 1,50)
8 / 4c
16 / 1pr
0,41/0,26 mm
18,9 mm
542,3 kg/km
672 kg/km
08631480
4 x 16,00 + (2 x 1,50)
6 / 4c
16 / 1pr
0,41/0,26 mm
23,3 mm
802,2 kg/km
975 kg/km
08631490
4 x 25,00 + (2 x 1,50)
4 / 4c
16 / 1pr
0,41/0,26 mm
26,7 mm
1178,5 kg/km
1363 kg/km
08631495
4 x 35,00 + (2 x 1,50)
2 / 4c
16 / 1pr
0,41/0,26 mm
29,8 mm
1586,4 kg/km
1789 kg/km

Other dimensions and colours are possible on request.
