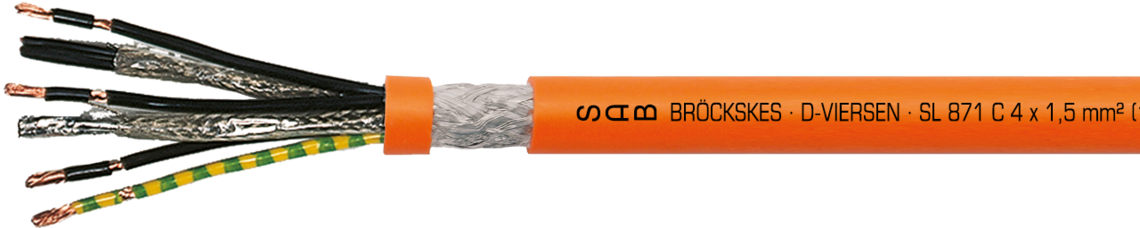

SL 871 C

Low capacity combined PUR motor connection cable with overall copper screen 0.6/1 kV

Marking for SL 871 C 08711425:
SAB BRÖCKSKES · D-VIERSEN · 08711425 SL 871 C 4G2,5 mm2 + (2 x 1,5 mm2)
DESINA UL AWM Style 20234 80°C 1000V CSA AWM I/II A/B 80°C 1000V FT1 FT2 CE

Marking for SL 871 C 08711425: SAB BRÖCKSKES · D-VIERSEN · 08711425 SL 871 C 4G2,5 mm2 + (2 x 1,5 mm2) DESINA UL AWM Style 20234 80°C 1000V CSA AWM I/II A/B 80°C 1000V FT1 FT2 CE

Application

The low capacity combined PUR motor power/energy supply cable with overall copper screen 0.6/1 kV is UL recognized, CSA approval and suitable for cable tracks.

Outstanding features

  • low capacity construction
  • UL recognized, CSA approval
  • very good EMC characteristics
  • long service life
  • adhesion-free installation
  • high flexibility
  • suitable for cable tracks
  • halogen-free
  • PWIS uncritical (PWIS= paint-wetting impairment substances)
  • flexible at low temperatures
  • DESINA® colours

Additional information

Cable harnessing possible on request!

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

< 0,50 mm² with reference to VDE 0812

Insulation

special polymer

Colour code

supply cores up to 08710496:

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire



supply cores up to 08711415:

core 1: U/L1/C/L+, core 2: V/L2,

core 3: W/L3/D/L- and a green-yellow earth wire



control cores:

with 1 control pair: black, white

with 2 control pairs: black with numbers 5, 6 and 7, 8

Stranding

control cores: twisted to pairs

Wrapping

control cores: non-woven tape

Screen

control cores: tinned copper braiding

Wrapping

control cores: non-woven tape

Stranding

screened control pairs and supply cores twisted together with fillers in layers

Wrapping

non-woven tape

Screen

overall copper screen

Wrapping

non-woven tape

Sheath material

TMPU acc. to DIN EN 50363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

< 0,50 mm² with reference to VDE 0812

Insulation

special polymer

Colour code

supply cores up to 08710496:

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire



supply cores up to 08711415:

core 1: U/L1/C/L+, core 2: V/L2,

core 3: W/L3/D/L- and a green-yellow earth wire



control cores:

with 1 control pair: black, white

with 2 control pairs: black with numbers 5, 6 and 7, 8

Stranding

control cores: twisted to pairs

Wrapping

control cores: non-woven tape

Screen

control cores: tinned copper braiding

Wrapping

control cores: non-woven tape

Stranding

screened control pairs and supply cores twisted together with fillers in layers

Wrapping

non-woven tape

Screen

overall copper screen

Wrapping

non-woven tape

Sheath material

TMPU acc. to DIN EN 50363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Technical data

Nominal voltage

supply cores 0.6/1 kV

Peak operating voltage

control cores max. 350 V

Voltage UL/CSA

supply cores 1000 V

control cores 300 V

(from 0871-1415: 1000 V)

Testing voltage

supply cores:

core/core 4000 V

core/screen 4000 V



control cores:

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

UL/CSA up to +80 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL FT1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

supply cores 0.6/1 kV

Peak operating voltage

control cores max. 350 V

Voltage UL/CSA

supply cores 1000 V

control cores 300 V

(from 0871-1415: 1000 V)

Testing voltage

supply cores:

core/core 4000 V

core/screen 4000 V



control cores:

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

UL/CSA up to +80 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL FT1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Description Dimension AWG
supply cores
AWG
control cores (paired)
Largest single
wire-ø
Outer-ø Copper figure Cable weight ≈
08710407Indramat4 x 0,75 + 2 x (2 x 0,34)19 / 4c22 / 2pr0,16/0,11 mm11,6 ± 0,5 mm117,1 kg/km168 kg/km Send inquiry
08710410Indramat4 x 1,00 + 2 x (2 x 0,75)18 / 4c19 / 2pr0,16 mm11,8 ± 0,5 mm150,1 kg/km201 kg/km Send inquiry
08710415Indramat4 x 1,50 + 2 x (2 x 0,75)16 / 4c19 / 2pr0,16 mm12,3 ± 0,5 mm170,1 kg/km224 kg/km Send inquiry
08710425Indramat4 x 2,50 + 2 x (2 x 1,00)14 / 4c18 / 2pr0,16 mm14,5 ± 0,8 mm231,8 kg/km320 kg/km Send inquiry
08710441Indramat4 x 4,00 + (2 x 1,00) + (2 x 1,50)12 / 4c18 / 1pr + 16 / 1pr0,16 mm17,4 ± 0,6 mm343,0 kg/km458 kg/km Send inquiry
08710461Indramat4 x 6,00 + (2 x 1,00) + (2 x 1,50)10 / 4c18 / 1pr + 16 / 1pr0,21/0,16 mm18,9 ± 0,8 mm432,8 kg/km557 kg/km Send inquiry
08710471Indramat4 x 10,00 + (2 x 1,00) + (2 x 1,50)8 / 4c18 / 1pr + 16 / 1pr0,21/0,16 mm20,4 ± 1,0 mm603,7 kg/km758 kg/km Send inquiry
08710485Indramat4 x 16,00 + 2 x (2 x 1,50)6 / 4c16 / 2pr0,21/0,16 mm26,0 ± 0,8 mm875,7 kg/km1111 kg/km Send inquiry
08710490Indramat4 x 25,00 + 2 x (2 x 1,50)4 / 4c16 / 2pr0,21/0,16 mm29,4 ± 0,8 mm1251,1 kg/km1517 kg/km Send inquiry
08710495Indramat4 x 35,00 + 2 x (2 x 1,50)2 / 4c16 / 2pr0,21/0,16 mm31,3 ± 0,8 mm1644,6 kg/km1882 kg/km Send inquiry
08710496Indramat4 x 50,00 + 2 x (2 x 2,50)1 / 4c14 / 2pr0,31/0,16 mm38,2 ± 0,8 mm2317,6 kg/km2659 kg/km Send inquiry
08711415Siemens4 x 1,50 + (2 x 1,50)16 / 4c16 / 1pr0,16/0,16 mm12,0 ± 0,3 mm159,0 kg/km200 kg/km Send inquiry
08711425Siemens4 x 2,50 + (2 x 1,50)14 / 4c16 / 1pr0,16/0,16 mm13,0 ± 0,3 mm204,0 kg/km290 kg/km Send inquiry
08711440Siemens4 x 4,00 + (2 x 1,50)12 / 4c16 / 1pr0,16/0,16 mm15,0 ± 0,3 mm259,0 kg/km340 kg/km Send inquiry
08711460Siemens4 x 6,00 + (2 x 1,50)10 / 4c16 / 1pr0,21/0,16 mm16,6 ± 0,4 mm377,0 kg/km470 kg/km Send inquiry
08711470Siemens4 x 10,00 + (2 x 1,50)8 / 4c16 / 1pr0,21/0,16 mm19,5 ± 0,4 mm566,0 kg/km700 kg/km Send inquiry
08711480Siemens4 x 16,00 + (2 x 1,50)6 / 4c16 / 1pr0,21/0,16 mm23,0 ± 0,4 mm814,8 kg/km1010 kg/km Send inquiry
08711490Siemens4 x 25,00 + (2 x 1,50)4 / 4c16 / 1pr0,21/0,16 mm27,0 ± 0,5 mm1175,0 kg/km1450 kg/km Send inquiry
08711495Siemens4 x 35,00 + (2 x 1,50)2 / 4c16 / 1pr0,21/0,16 mm30,0 ± 0,5 mm1586,0 kg/km2160 kg/km Send inquiry
08711496Siemens4 x 50,00 + (2 x 1,50)1 / 4c16 / 1pr0,26/0,16 mm34,4 ± 0,5 mm2192,0 kg/km2950 kg/km Send inquiry
item no.
Description
Dimension
AWG
supply cores
AWG
control cores (paired)
Largest single
wire-ø
Outer-ø
Copper figure
Cable weight ≈
08710407
Indramat
4 x 0,75 + 2 x (2 x 0,34)
19 / 4c
22 / 2pr
0,16/0,11 mm
11,6 ± 0,5 mm
117,1 kg/km
168 kg/km
08710410
Indramat
4 x 1,00 + 2 x (2 x 0,75)
18 / 4c
19 / 2pr
0,16 mm
11,8 ± 0,5 mm
150,1 kg/km
201 kg/km
08710415
Indramat
4 x 1,50 + 2 x (2 x 0,75)
16 / 4c
19 / 2pr
0,16 mm
12,3 ± 0,5 mm
170,1 kg/km
224 kg/km
08710425
Indramat
4 x 2,50 + 2 x (2 x 1,00)
14 / 4c
18 / 2pr
0,16 mm
14,5 ± 0,8 mm
231,8 kg/km
320 kg/km
08710441
Indramat
4 x 4,00 + (2 x 1,00) + (2 x 1,50)
12 / 4c
18 / 1pr + 16 / 1pr
0,16 mm
17,4 ± 0,6 mm
343,0 kg/km
458 kg/km
08710461
Indramat
4 x 6,00 + (2 x 1,00) + (2 x 1,50)
10 / 4c
18 / 1pr + 16 / 1pr
0,21/0,16 mm
18,9 ± 0,8 mm
432,8 kg/km
557 kg/km
08710471
Indramat
4 x 10,00 + (2 x 1,00) + (2 x 1,50)
8 / 4c
18 / 1pr + 16 / 1pr
0,21/0,16 mm
20,4 ± 1,0 mm
603,7 kg/km
758 kg/km
08710485
Indramat
4 x 16,00 + 2 x (2 x 1,50)
6 / 4c
16 / 2pr
0,21/0,16 mm
26,0 ± 0,8 mm
875,7 kg/km
1111 kg/km
08710490
Indramat
4 x 25,00 + 2 x (2 x 1,50)
4 / 4c
16 / 2pr
0,21/0,16 mm
29,4 ± 0,8 mm
1251,1 kg/km
1517 kg/km
08710495
Indramat
4 x 35,00 + 2 x (2 x 1,50)
2 / 4c
16 / 2pr
0,21/0,16 mm
31,3 ± 0,8 mm
1644,6 kg/km
1882 kg/km
08710496
Indramat
4 x 50,00 + 2 x (2 x 2,50)
1 / 4c
14 / 2pr
0,31/0,16 mm
38,2 ± 0,8 mm
2317,6 kg/km
2659 kg/km
08711415
Siemens
4 x 1,50 + (2 x 1,50)
16 / 4c
16 / 1pr
0,16/0,16 mm
12,0 ± 0,3 mm
159,0 kg/km
200 kg/km
08711425
Siemens
4 x 2,50 + (2 x 1,50)
14 / 4c
16 / 1pr
0,16/0,16 mm
13,0 ± 0,3 mm
204,0 kg/km
290 kg/km
08711440
Siemens
4 x 4,00 + (2 x 1,50)
12 / 4c
16 / 1pr
0,16/0,16 mm
15,0 ± 0,3 mm
259,0 kg/km
340 kg/km
08711460
Siemens
4 x 6,00 + (2 x 1,50)
10 / 4c
16 / 1pr
0,21/0,16 mm
16,6 ± 0,4 mm
377,0 kg/km
470 kg/km
08711470
Siemens
4 x 10,00 + (2 x 1,50)
8 / 4c
16 / 1pr
0,21/0,16 mm
19,5 ± 0,4 mm
566,0 kg/km
700 kg/km
08711480
Siemens
4 x 16,00 + (2 x 1,50)
6 / 4c
16 / 1pr
0,21/0,16 mm
23,0 ± 0,4 mm
814,8 kg/km
1010 kg/km
08711490
Siemens
4 x 25,00 + (2 x 1,50)
4 / 4c
16 / 1pr
0,21/0,16 mm
27,0 ± 0,5 mm
1175,0 kg/km
1450 kg/km
08711495
Siemens
4 x 35,00 + (2 x 1,50)
2 / 4c
16 / 1pr
0,21/0,16 mm
30,0 ± 0,5 mm
1586,0 kg/km
2160 kg/km
08711496
Siemens
4 x 50,00 + (2 x 1,50)
1 / 4c
16 / 1pr
0,26/0,16 mm
34,4 ± 0,5 mm
2192,0 kg/km
2950 kg/km

Other dimensions and colours are possible on request.
