USB 3.0 M

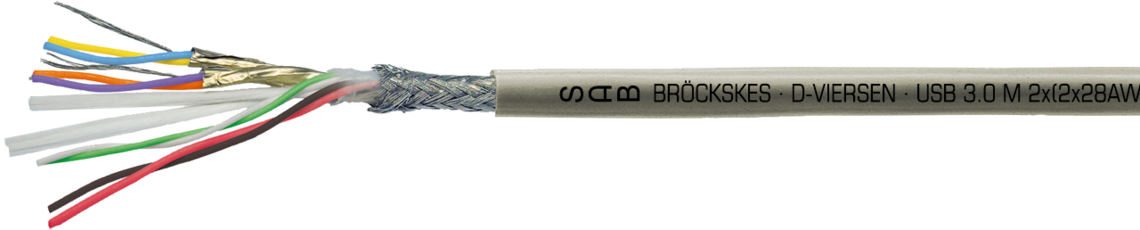

flexible USB 3.0 cable for especially for medical technology

SAB BRÖCKSKES · D-VIERSEN · USB 3.0 M 2x(2x28AWG)ST + 2x28AWG + 2x26AWG CE

SAB BRÖCKSKES · D-VIERSEN · USB 3.0 M 2x(2x28AWG)ST + 2x28AWG + 2x26AWG CE

Application

Especially for the application in medical technology.

Outstanding features

  • biocompatible sheath material
  • biological harmlessness acc. to EN ISO 10993-1, cytotoxicity acc. to EN ISO 10993-5
  • high temperature resistant
  • high notch and tear resistance
  • very good flexibility
  • surface not adhesive

Additional information

For transmission lengths more than 3 m, please contact us!

Construction

Conductor

28 AWG: silver-plated copper strands, fine wires

26 AWG: tinned copper strands, fine wires

Insulation

FEP

Colour code

28 AWG: yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0),

26 AWG: red, black (power supply)

Stranding

USB 3.0 twisted and screened pairs,

USB 2.0 twisted pairs, all elements together

Tracer

bare copper strands, fine wires

Screen

alu foil

Stranding

foil

Screen

tinned copper braiding

Sheath colour:

SABmed S

Sheath colour

grey

Conductor

28 AWG: silver-plated copper strands, fine wires

26 AWG: tinned copper strands, fine wires

Insulation

FEP

Colour code

28 AWG: yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0),

26 AWG: red, black (power supply)

Stranding

USB 3.0 twisted and screened pairs,

USB 2.0 twisted pairs, all elements together

Tracer

bare copper strands, fine wires

Screen

alu foil

Stranding

foil

Screen

tinned copper braiding

Sheath colour:

SABmed S

Sheath colour

grey

Technical data

Peak operating voltage

max. 50 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+180 °C

flexible application: -25/+180 °C

Impedance of data pairs

nom. 90Ω

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 50 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+180 °C

flexible application: -25/+180 °C

Impedance of data pairs

nom. 90Ω

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Approx. outer-ø Copper figure Cable weight ≈ Ohmic resistance
at 20°C max. Ω/km
28 AWG
Ohmic resistance
at 20°C max. Ω/km
26 AWG
060610182 x (2 x 28 AWG)ST + 2 x 28 AWG + 2 x 26 AWG5,6 mm25,4 kg/km48 kg/km223140 Send inquiry
item no.
Dimension
Approx. outer-ø
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C max. Ω/km
28 AWG
Ohmic resistance
at 20°C max. Ω/km
26 AWG
06061018
2 x (2 x 28 AWG)ST + 2 x 28 AWG + 2 x 26 AWG
5,6 mm
25,4 kg/km
48 kg/km
223
140

Other dimensions and colours are possible on request.
