CATLine Cat. 6A S - IE Connection Cable

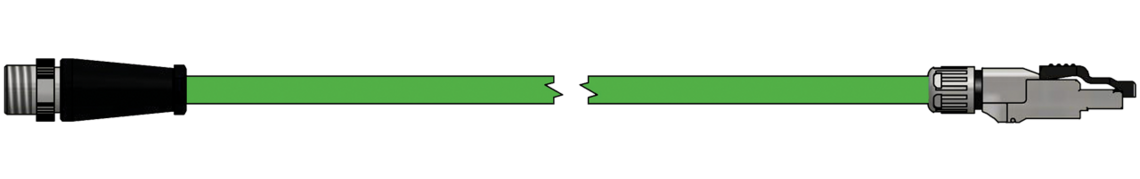

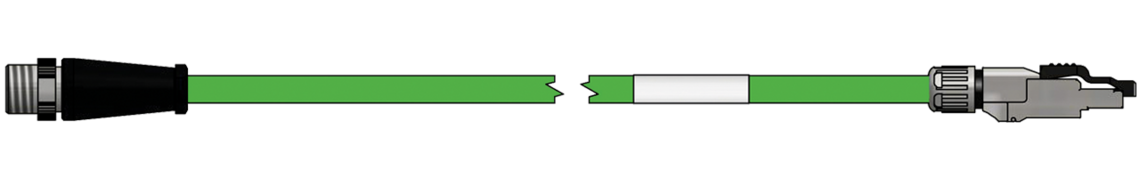

Industrial Ethernet cable, suitable for cable tracks, with moulded M12 connector and mounted RJ45 connector

Application

Industrial ethernet system cable for continuously flexible application, e.g. in cable tracks in industrial environment.

Additional information

connection diagram/pin assignment

side 1

TIA 568-B

side 2

M12 connector

core

RJ45

pin 1

white-orange

pin 1

pin 2

orange

pin 2

pin 3

white-green

pin 3

pin 4

green

pin 4

pin 5

white-brown

pin 5

pin 6

brown

pin 6

pin 7

white-blue

pin 7

pin 8

blue

pin 8

housing

screen

housing

Cable characteristics

SAB item no.

L1677-4631

Dimension

4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Screen

alu foil and tinned copper braiding

Outer sheath

PUR, green (similar RAL 6018)

Outer diameter

approx. 7,1 mm

Approvals

UL/CSA

Oil resistance

TMPU acc. to EN50363-10-2 + VDE 0207-363-10-2

Min. bending radius

flexible application: 5 x d

continuously flexible: 15 x d

SAB item no.

L1677-4631

Dimension

4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Screen

alu foil and tinned copper braiding

Outer sheath

PUR, green (similar RAL 6018)

Outer diameter

approx. 7,1 mm

Approvals

UL/CSA

Oil resistance

TMPU acc. to EN50363-10-2 + VDE 0207-363-10-2

Min. bending radius

flexible application: 5 x d

continuously flexible: 15 x d

Technical Data

Temperature range

-40°C to +70°C

Voltage

48 V

Protection class

IP67 (M12, in stretched condition), IP20 (RJ45)

Connection side 1

M12 X-coded, male connector, straight, moulded with vibration seal

Connection side 2

RJ45 connector, mounted, Cat. 6A, 8-pole with cable gland

Marking

yellow marking tube with marking:

item number - order number - length - certification mark

Temperature range

-40°C to +70°C

Voltage

48 V

Protection class

IP67 (M12, in stretched condition), IP20 (RJ45)

Connection side 1

M12 X-coded, male connector, straight, moulded with vibration seal

Connection side 2

RJ45 connector, mounted, Cat. 6A, 8-pole with cable gland

Marking

yellow marking tube with marking:

item number - order number - length - certification mark

Item no. with length code

item no. length
S1677-4027-000500,5 m Send inquiry
S1677-4027-001001,0 m Send inquiry
S1677-4027-002002,0 m Send inquiry
S1677-4027-003003,0 m Send inquiry
S1677-4027-005005,0 m Send inquiry
S1677-4027-007507,5 m Send inquiry
S1677-4027-0100010,0 m Send inquiry
S1677-4027-0150015,0 m Send inquiry
S1677-4027-0200020,0 m Send inquiry
S1677-4027-0250025,0 m Send inquiry
item no.
length
S1677-4027-00050
0,5 m
S1677-4027-00100
1,0 m
S1677-4027-00200
2,0 m
S1677-4027-00300
3,0 m
S1677-4027-00500
5,0 m
S1677-4027-00750
7,5 m
S1677-4027-01000
10,0 m
S1677-4027-01500
15,0 m
S1677-4027-02000
20,0 m
S1677-4027-02500
25,0 m

Other lengths on request.

Customized cable assembly according to your wishes.
