PN 662

PVC Profinet cable type B for flexible applications

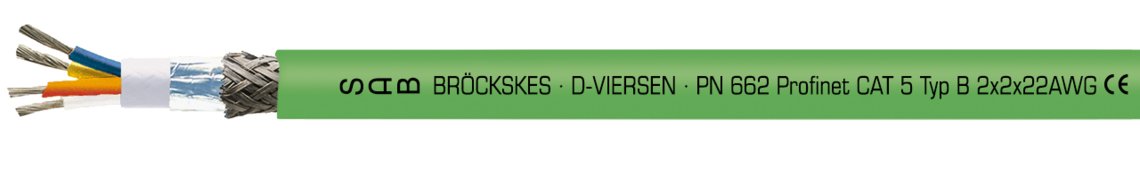

Marking for PN 662 06622202: SAB BRÖCKSKES · D-VIERSEN · PN 662 Profinet CAT 5 Typ B 2 x 2 x 22 AWG CE

Marking for PN 662 06622202: SAB BRÖCKSKES · D-VIERSEN · PN 662 Profinet CAT 5 Typ B 2 x 2 x 22 AWG CE

Application

Profinet cable type B for flexible use. This Profinet CAT 5 type B cable with tinned copper strands 2 x 2 x 22 AWG has been specially developed for flexible use. The minimum bending radius for fixed installation is 5 x d, freely movable 10 x d.

Additional information

also possible as profinet cable with M12 or RJ45 plug

Construction

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands, fine wires acc. to VDE 0812

Insulation

PE, L/MD acc. to EN 50290-2-23

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Sheath material

PVC

Sheath colour

green (similar RAL 6018)

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands, fine wires acc. to VDE 0812

Insulation

PE, L/MD acc. to EN 50290-2-23

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Sheath material

PVC

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

VDE: max. 350 V

Testing voltage

core/core 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

VDE fixed laying: -30/+70°C

VDE flexible application: -5/+70°C

Oil resistance

acc. to internal standard

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

VDE: max. 350 V

Testing voltage

core/core 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

VDE fixed laying: -30/+70°C

VDE flexible application: -5/+70°C

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø ± 5% Copper figure Cable weight ≈ Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
L066222022 x 2 x 22 AWG1,55 mm6,1 mm33,9 kg/km57 kg/km58 Ω/km Send inquiry
item no.
Dimension
max. core-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
L06622202
2 x 2 x 22 AWG
1,55 mm
6,1 mm
33,9 kg/km
57 kg/km
58 Ω/km

Other dimensions and colours are possible on request.
