KSR cable
constant welding current control
Application
Constant current control robot cables are used in the robot hose package for constant current control. These cables are connected to the welding gun of the robot and regulate a constant current supply so that the quality of the welds is always the same. Applications for these robots include the automotive industry, automation and aircraft construction.

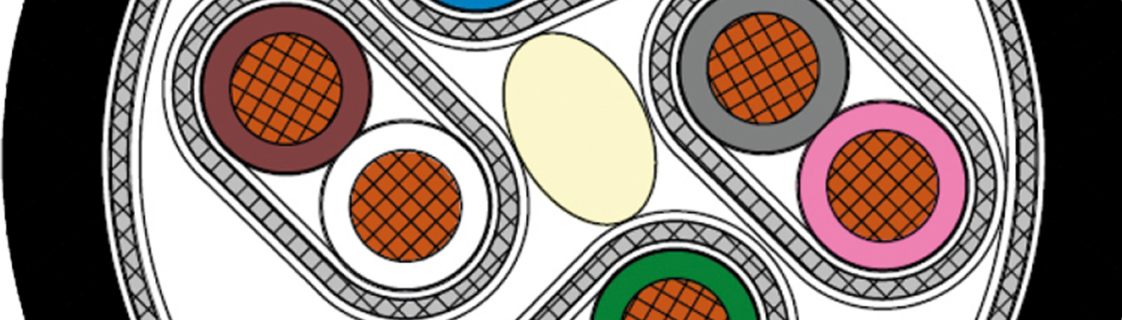

Construction
| Conductor | copper strands acc. to IEC 60228 |
|---|---|
| Insulation | TPE |
| Colour code | acc. to specification |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Sheat colour | black (RAL 9005) |
copper strands acc. to IEC 60228
TPE
acc. to specification
PUR, TMPU
acc. to EN 50363-10-2 + VDE 0207-363-10-2
black (RAL 9005)
Technical data
| PWIS uncritical | all our robot cables are free of paint-wetting interfering substances |
|---|---|
| Temperature range | flexible application: -40/+90 °C |
| Min. bending radius | recommended: 10 x d |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
all our robot cables
are free of paint-wetting interfering substances
flexible application:
-40/+90 °C
recommended: 10 x d
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø | |
|---|---|---|---|
| L0795-9035 | (2 x 0,5 mm²) D + (2 x 0,5 mm²) D | 8,8 mm | Send inquiry |
| L0760-9055 | (2 x 0,5 mm²) D + 2 x 0,5 mm² | 8,2 mm | Send inquiry |
| L0796-9101 | (3 x 1,0 mm²) D + (2 x 1,0 mm²) D +1 x 1,0 mm² | 10,4 mm | Send inquiry |
| L0796-9217 | 4 x (2 x 0,50 mm²) D + 1 x 0,50 mm² | 9,6 mm | Send inquiry |
| L0784-9074 | 6 x 0,75 mm² + (3 x 0,75 mm²) D | 9,8 mm | Send inquiry |
| L0784-9212 | 2 x (2 x 0,75 mm²) D + (3 x 0,75 mm²) D | 10,3 mm | Send inquiry |
| L0764-9086 | 1 x (2 x 0,50 mm²) D + 7 x 1,0 mm² | 9,1 mm | Send inquiry |
Other dimensions and colours are possible on request.
