HV 1000 C - MC with HVA 630
robust, flexible high-voltage multi-core cable with overall copper screen and thermo connector HVA 630
Application
e.g. in the fields of agricultural, construction and special vehicles
Additional information
Construction, materials and tests of the cable with reference to:
● DIN EN 60228
● DIN EN 50525
● DIN EN 50290-2-30
● DIN EN 50620
● DIN EN 60811
In individual cases, the specific application must be agreed with SAB Bröckskes.
SAB identification: item number, batch number
Cable data
| Connection cable | bare copper strands, screened |
|---|---|
| Core insulation | TPFP |
| Inner sheath | Besilen® |
| Screen | alu foil and tinned copper braiding |
| Sheath material | TPE-U |
| Sheath colour | orange |
| Outer diameter | 2 x 2,50 mm²: 9,6 mm 3 x 2,50 mm²: 10,2 mm 2 x 4,00 mm²: 10,7 mm 3 x 4,00 mm²: 11,7 mm 2 x 6,00 mm²: 12,5 mm 3 x 6,00 mm²: 13,6 mm 4 x 6,00 mm²: 14,6 mm 5 x 6,00 mm²: 15,9 mm |
| Nominal voltage | Uo/U max. 0,6/1 kV AC/DC |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C limited time of use: +125 °C (2000 h) |
bare copper strands, screened
TPFP
Besilen®
alu foil and tinned copper braiding
TPE-U
orange
2 x 2,50 mm²: 9,6 mm
3 x 2,50 mm²: 10,2 mm
2 x 4,00 mm²: 10,7 mm
3 x 4,00 mm²: 11,7 mm
2 x 6,00 mm²: 12,5 mm
3 x 6,00 mm²: 13,6 mm
4 x 6,00 mm²: 14,6 mm
5 x 6,00 mm²: 15,9 mm
Uo/U max. 0,6/1 kV AC/DC
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
limited time of use: +125 °C (2000 h)

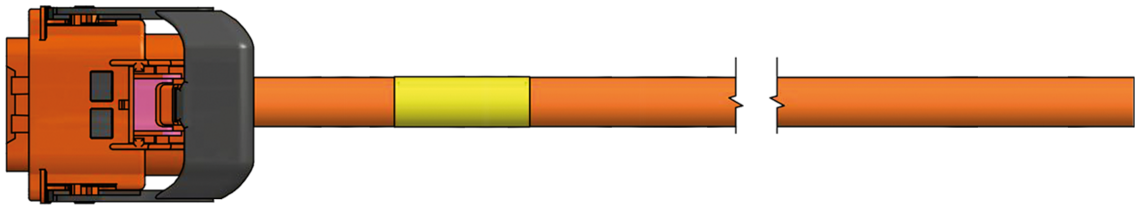

Connection end
| Outer sheath | TPE-U |
|---|---|
| Connection end 1 | thermo connector |
| Connection end 2 | cut smoothly |
| Screen | cut smoothly |
TPE-U
thermo connector
cut smoothly
cut smoothly
Configuration example
| item no. | Connector | Connection cable length | Dimension | |
|---|---|---|---|---|
| S3910-4005-00200 | HVA 630, A-coded | 2000 mm | 5 x 6,00 mm² | Send inquiry |
Total cable and channel lengths can be realised on customer’s request.
