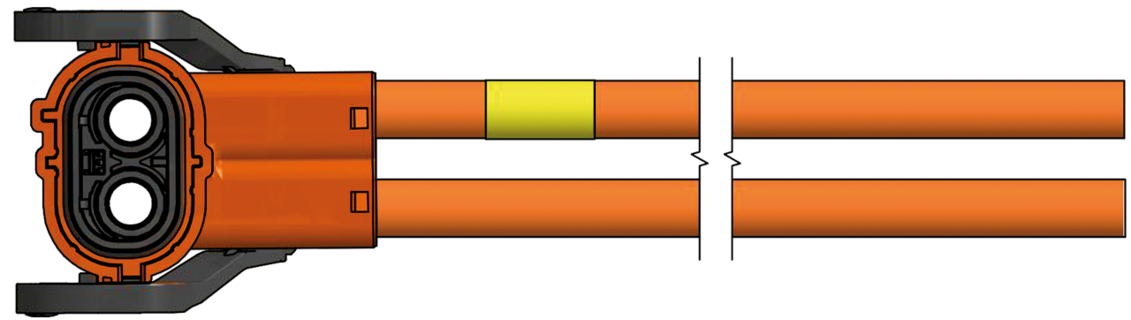

HV 1000 C - SC with PCON12

robust, flexible high-voltage single conductor with overall copper screen and thermo connector PCON12

Application

e.g. in the fields of agricultural, construction and special vehicles

Additional information

Construction, materials and tests of the cable with reference to:
●  DIN EN 60228
●  DIN EN 50525
●  DIN EN 50290-2-30
●  DIN EN 50620
●  DIN EN 60811
In individual cases, the specific application must be agreed with SAB Bröckskes.



SAB identification: item number, batch number

Cable data

Connection cable

bare copper strands, extra fine wires, screened

Core insulation

TPFP

Screen

alu foil and tinned copper braiding

Sheath material

TPE-U

Sheath colour

orange

Outer diameter

4,00 mm²: 5,8 mm

6,00 mm²: 6,5 mm

10,00 mm²: 8,8 mm

16,00 mm²: 10,2 mm

25,00 mm²: 12,2 mm

35,00 mm²: 14,4 mm

50,00 mm²: 15,8 mm

70,00 mm²: 18,2 mm

95,00 mm²: 20,9 mm

Nominal voltage

Uo/U max. 0,6/1 kV AC/DC

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

limited time of use: +125 °C (2000 h)

Connection cable

bare copper strands, extra fine wires, screened

Core insulation

TPFP

Screen

alu foil and tinned copper braiding

Sheath material

TPE-U

Sheath colour

orange

Outer diameter

4,00 mm²: 5,8 mm

6,00 mm²: 6,5 mm

10,00 mm²: 8,8 mm

16,00 mm²: 10,2 mm

25,00 mm²: 12,2 mm

35,00 mm²: 14,4 mm

50,00 mm²: 15,8 mm

70,00 mm²: 18,2 mm

95,00 mm²: 20,9 mm

Nominal voltage

Uo/U max. 0,6/1 kV AC/DC

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

limited time of use: +125 °C (2000 h)

Connection end

Outer sheath

TPE-U

Connection end 1

thermo connector

Connection end 2

cut smoothly

Screen

cut smoothly

Outer sheath

TPE-U

Connection end 1

thermo connector

Connection end 2

cut smoothly

Screen

cut smoothly

Configuration example

item no. Connector Connection cable length Cross section
S3910-2002-00200PCON12, B-coded2000 mm16,00 mm² Send inquiry
item no.
Connector
Connection cable length
Cross section
S3910-2002-00200
PCON12, B-coded
2000 mm
16,00 mm²

Total cable and channel lengths can be realised on customer’s request.
