SABIX® R 691 FRNC CAT 6A C1

halogen-free Industrial Gigabit Ethernet cable CAT 6A

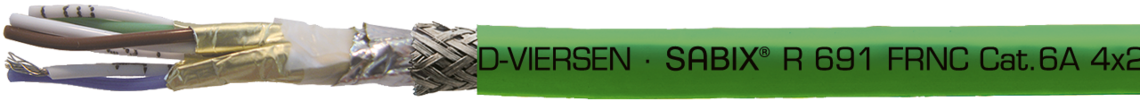

Marking für SABIX R 691 FRNC CAT 6A 66912604: SAB BRÖCKSKES · D-VIERSEN · SABIX R 691 FRNC Cat.6A 4x2x26AWG CE

Application

For the use in machines and industrial plants with highest demands on fire protection for the components, e.g. control and communication as well as safety technique in power plants.

Outstanding features

halogen-free
no flame propagation
flame retardant and self-extinguishing
NF C 32-070 C1

Questions about our products?

Additional information

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Conductor	tinned copper strands, fine wires
Insulation	PE
Colour code	white cores with numbers 1 - 4 (+ blue, orange, green, brown)
Stranding	twisted pairs wrapped with PETP foil and alu foil
Wrapping	non-woven tape
Screen	alu foil and tinned copper braiding
Sheath material	special SABIX®
Sheath colour	green (similar RAL 6018)

Conductor

tinned copper strands, fine wires

Insulation

Colour code

white cores with numbers 1 - 4 (+ blue, orange, green, brown)

Stranding

twisted pairs wrapped with PETP foil and alu foil

Wrapping

non-woven tape

Screen

alu foil and tinned copper braiding

Sheath material

special SABIX®

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage	max. 350 V
Testing voltage	core/core 1500 V core/screen 1200 V
Min. bending radius	fixed laying: 5 x d flexible application: 12 x d
Temperature range	fixed laying: -40/+70°C flexible application: -30/+70°C
Characteristic impedance	100Ω ± 10Ω, accomplishes the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 (CAT 6A acc. to EN 50173-1)
Halogen-free	acc. to DIN VDE 0472 part 815 + IEC 60754-1
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1 and EN 60332-1-2, no flame propagation acc. to IEC 60332-3-25, EN 60332-3-25 and EN 50266-2-5 for cable diameter > 6 mm < 12 mm, NF C 32-070 C1
Smoke density	acc. to IEC 61034-1 and EN 61034-1, translucence > 60%
Flexibility	good
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

fixed laying: -40/+70°C

flexible application: -30/+70°C

Characteristic impedance

100Ω ± 10Ω, accomplishes the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 (CAT 6A acc. to EN 50173-1)

Halogen-free

acc. to DIN VDE 0472 part 815 + IEC 60754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1 and EN 60332-1-2, no flame propagation acc. to IEC 60332-3-25, EN 60332-3-25 and EN 50266-2-5 for cable diameter > 6 mm < 12 mm, NF C 32-070 C1

Smoke density

acc. to IEC 61034-1 and EN 61034-1, translucence > 60%

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union
