T999

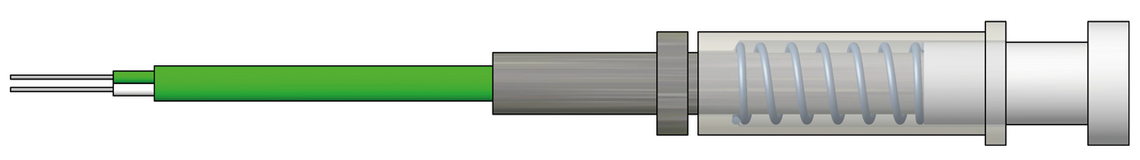

Spring loaded pressure probe for contact measurement on surfaces

Application

Sensor design suitable for the measurement of surface temperature on moving parts, e.g. in automatic tests.

Additional information

Also available as Pt100 sensor!

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type K

- other thermocouples on request

Connection cable

- extension cable strands / FEP / FEP

- extension cable strands / FEP / overall copper screen / FEP

Cable length

According to customer´s request. Please specify in mm.

Connection end

- miniature thermoplug

- bare ends

- Lemo plug type

Temperature range of probe

-30°C / +150°C



Please note that the temperature stability of the sensor

is determined by the weakest parameters.

Limit deviation

Class 1

Measuring point

bare in the sleeve base

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type K

- other thermocouples on request

Connection cable

- extension cable strands / FEP / FEP

- extension cable strands / FEP / overall copper screen / FEP

Cable length

According to customer´s request. Please specify in mm.

Connection end

- miniature thermoplug

- bare ends

- Lemo plug type

Temperature range of probe

-30°C / +150°C



Please note that the temperature stability of the sensor

is determined by the weakest parameters.

Limit deviation

Class 1

Measuring point

bare in the sleeve base
