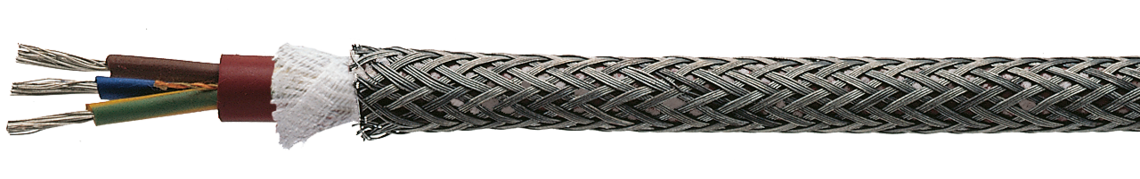

BiHFGLP-J

Silicone (Besilen®) insulated strands with Silicone (Besilen®) outer sheath, fibre-glass tape and steel wire armouring for mechanical protection

Application

BiHFGLP-J with fibre-glass tape and steel wire armouring for mechanical protection consists of silicone insulated strands. Additionally, the cable is heat-resistant and halogen-free. It is applied in plastics processing, packaging and textile machine engineering, smelteries, steelworks, and hot-rolling mills, safety technology, measuring and control technologies, cement, glass, and ceramic industries, refrigeration, heat and air conditioning technologies, paper industry, foundries, and sauna construction.

Outstanding features

  • halogen-free
  • flexible at low temperatures
  • heat resistant
  • protection against mechanical damage

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Stranding

in layers

Sheath material

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Sheath colour

reddish brown (similar RAL 3016)

Wrapping

fibre-glass tape

Armouring

galvanized steel wire braiding

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Stranding

in layers

Sheath material

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Sheath colour

reddish brown (similar RAL 3016)

Wrapping

fibre-glass tape

Armouring

galvanized steel wire braiding

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to

IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to

IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
014602072 x 0,75 mm²0,21 mm6,8 mm14,4 kg/km72,9 kg/km Send inquiry
014603073 x 0,75 mm²0,21 mm7,1 mm21,6 kg/km82,2 kg/km Send inquiry
014604074 x 0,75 mm²0,21 mm7,6 mm28,8 kg/km95,5 kg/km Send inquiry
014605075 x 0,75 mm²0,21 mm8,3 mm36 kg/km112,2 kg/km Send inquiry
014606076 x 0,75 mm²0,21 mm9,1 mm43,2 kg/km137,6 kg/km Send inquiry
014607077 x 0,75 mm²0,21 mm9,1 mm50,4 kg/km142 kg/km Send inquiry
014602102 x 1,00 mm²0,21 mm7 mm19,2 kg/km79,2 kg/km Send inquiry
014603103 x 1,00 mm²0,21 mm7,3 mm28,8 kg/km90,4 kg/km Send inquiry
014604104 x 1,00 mm²0,21 mm7,9 mm38,4 kg/km106,7 kg/km Send inquiry
014605105 x 1,00 mm²0,21 mm8,5 mm48 kg/km131 kg/km Send inquiry
014606106 x 1,00 mm²0,21 mm9,4 mm57,6 kg/km153,8 kg/km Send inquiry
014607107 x 1,00 mm²0,21 mm9,4 mm67,2 kg/km160 kg/km Send inquiry
014602152 x 1,50 mm²0,26 mm7,9 mm28,8 kg/km99,4 kg/km Send inquiry
014603153 x 1,50 mm²0,26 mm8,3 mm43,2 kg/km115,5 kg/km Send inquiry
014604154 x 1,50 mm²0,26 mm9,1 mm57,6 kg/km144,8 kg/km Send inquiry
014605155 x 1,50 mm²0,26 mm10 mm72 kg/km174,5 kg/km Send inquiry
014606156 x 1,50 mm²0,26 mm10,8 mm86,4 kg/km205,1 kg/km Send inquiry
014607157 x 1,50 mm²0,26 mm10,8 mm100,8 kg/km214,2 kg/km Send inquiry
014602252 x 2,50 mm²0,26 mm9,4 mm48 kg/km145,8 kg/km Send inquiry
014603253 x 2,50 mm²0,26 mm9,9 mm72 kg/km172,1 kg/km Send inquiry
014604254 x 2,50 mm²0,26 mm10,7 mm96 kg/km207,9 kg/km Send inquiry
014605255 x 2,50 mm²0,26 mm12 mm120 kg/km260 kg/km Send inquiry
014606256 x 2,50 mm²0,26 mm13,2 mm144 kg/km323 kg/km Send inquiry
014607257 x 2,50 mm²0,26 mm13,2 mm168 kg/km338,6 kg/km Send inquiry
014602402 x 4,00 mm²0,31 mm11 mm76,8 kg/km203,8 kg/km Send inquiry
014603403 x 4,00 mm²0,31 mm11,6 mm115,2 kg/km248,2 kg/km Send inquiry
014604404 x 4,00 mm²0,31 mm12,7 mm153,6 kg/km316,2 kg/km Send inquiry
014605405 x 4,00 mm²0,31 mm14,1 mm192 kg/km383 kg/km Send inquiry
014606406 x 4,00 mm²0,31 mm15,2 mm230,4 kg/km443,3 kg/km Send inquiry
014607407 x 4,00 mm²0,31 mm15,2 mm268,8 kg/km468,9 kg/km Send inquiry
014602602 x 6,00 mm²0,31 mm12,2 mm115,2 kg/km264,8 kg/km Send inquiry
014603603 x 6,00 mm²0,31 mm13 mm172,8 kg/km341,9 kg/km Send inquiry
014604604 x 6,00 mm²0,31 mm14,1 mm230,4 kg/km410,6 kg/km Send inquiry
014605605 x 6,00 mm²0,31 mm15,4 mm288 kg/km493,2 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
01460207
2 x 0,75 mm²
0,21 mm
6,8 mm
14,4 kg/km
72,9 kg/km
01460307
3 x 0,75 mm²
0,21 mm
7,1 mm
21,6 kg/km
82,2 kg/km
01460407
4 x 0,75 mm²
0,21 mm
7,6 mm
28,8 kg/km
95,5 kg/km
01460507
5 x 0,75 mm²
0,21 mm
8,3 mm
36 kg/km
112,2 kg/km
01460607
6 x 0,75 mm²
0,21 mm
9,1 mm
43,2 kg/km
137,6 kg/km
01460707
7 x 0,75 mm²
0,21 mm
9,1 mm
50,4 kg/km
142 kg/km
01460210
2 x 1,00 mm²
0,21 mm
7 mm
19,2 kg/km
79,2 kg/km
01460310
3 x 1,00 mm²
0,21 mm
7,3 mm
28,8 kg/km
90,4 kg/km
01460410
4 x 1,00 mm²
0,21 mm
7,9 mm
38,4 kg/km
106,7 kg/km
01460510
5 x 1,00 mm²
0,21 mm
8,5 mm
48 kg/km
131 kg/km
01460610
6 x 1,00 mm²
0,21 mm
9,4 mm
57,6 kg/km
153,8 kg/km
01460710
7 x 1,00 mm²
0,21 mm
9,4 mm
67,2 kg/km
160 kg/km
01460215
2 x 1,50 mm²
0,26 mm
7,9 mm
28,8 kg/km
99,4 kg/km
01460315
3 x 1,50 mm²
0,26 mm
8,3 mm
43,2 kg/km
115,5 kg/km
01460415
4 x 1,50 mm²
0,26 mm
9,1 mm
57,6 kg/km
144,8 kg/km
01460515
5 x 1,50 mm²
0,26 mm
10 mm
72 kg/km
174,5 kg/km
01460615
6 x 1,50 mm²
0,26 mm
10,8 mm
86,4 kg/km
205,1 kg/km
01460715
7 x 1,50 mm²
0,26 mm
10,8 mm
100,8 kg/km
214,2 kg/km
01460225
2 x 2,50 mm²
0,26 mm
9,4 mm
48 kg/km
145,8 kg/km
01460325
3 x 2,50 mm²
0,26 mm
9,9 mm
72 kg/km
172,1 kg/km
01460425
4 x 2,50 mm²
0,26 mm
10,7 mm
96 kg/km
207,9 kg/km
01460525
5 x 2,50 mm²
0,26 mm
12 mm
120 kg/km
260 kg/km
01460625
6 x 2,50 mm²
0,26 mm
13,2 mm
144 kg/km
323 kg/km
01460725
7 x 2,50 mm²
0,26 mm
13,2 mm
168 kg/km
338,6 kg/km
01460240
2 x 4,00 mm²
0,31 mm
11 mm
76,8 kg/km
203,8 kg/km
01460340
3 x 4,00 mm²
0,31 mm
11,6 mm
115,2 kg/km
248,2 kg/km
01460440
4 x 4,00 mm²
0,31 mm
12,7 mm
153,6 kg/km
316,2 kg/km
01460540
5 x 4,00 mm²
0,31 mm
14,1 mm
192 kg/km
383 kg/km
01460640
6 x 4,00 mm²
0,31 mm
15,2 mm
230,4 kg/km
443,3 kg/km
01460740
7 x 4,00 mm²
0,31 mm
15,2 mm
268,8 kg/km
468,9 kg/km
01460260
2 x 6,00 mm²
0,31 mm
12,2 mm
115,2 kg/km
264,8 kg/km
01460360
3 x 6,00 mm²
0,31 mm
13 mm
172,8 kg/km
341,9 kg/km
01460460
4 x 6,00 mm²
0,31 mm
14,1 mm
230,4 kg/km
410,6 kg/km
01460560
5 x 6,00 mm²
0,31 mm
15,4 mm
288 kg/km
493,2 kg/km

Other dimensions and colours are possible on request.
