HV connecting cable for acceleration sensors (IEPE)
Application
Safe HV acceleration measurement for example with CSM HV IEPE3 FL 100 measuring module
Additional information
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.
SAB identification: item number, batch number
Cable data
| Connection cable | HV IEPE sensor cable |
|---|---|
| Core insulation | PFA – red, white, black, yellow |
| Bundle sheath | PFA – blue acc. to RAL 5015 |
| Inner sheath | PUR – blue acc. to RAL 5024 |
| Outer sheath | PUR |
| Sheath colour | orange with black vertical stripes |
| Stranding | optimised in layers |
| Outer diameter | approx. 4,3 mm |
| Dielectric strength | 1000 V AC over second inner sheath |
| Temperature range | fixed laying: -50°C / +150°C flexible application: -40°C / +150°C |
HV IEPE sensor cable
PFA – red, white, black, yellow
PFA – blue acc. to RAL 5015
PUR – blue acc. to RAL 5024
PUR
orange with black vertical stripes
optimised in layers
approx. 4,3 mm
1000 V AC over second inner sheath
fixed laying: -50°C / +150°C
flexible application: -40°C / +150°C
Sensor connection side
| Connector | 4-pin ¼-28 UNF socket for the connection of a triaxial IEPE acceleration sensor (also with 4-pin 8-36 UNF and 4-pin M4,5) |
|---|---|
| Screen | led out in bundle and insulated with shrinkable sleeve |
| Temperature range bundle channel | -55°C / +250°C |
4-pin ¼-28 UNF socket for the connection of a triaxial IEPE acceleration sensor (also with 4-pin 8-36 UNF and 4-pin M4,5)
led out in bundle and insulated with shrinkable sleeve
-55°C / +250°C
Connector
| Lemo Redel male connector | with orange kink protection sleeve and black protecting cap, 8-pin, C-coded 1000 V AC voltage-stable – IP 67 when connected |
|---|
with orange kink protection sleeve and black protecting cap, 8-pin, C-coded
1000 V AC voltage-stable – IP 67 when connected
Tests
| Cable test | core/core – 600 V AC - 1 min - acc. to IEC 60584-1 over second inner sheath in water bath – 5000 V AC – 5 min – with reference to EN 50264-2-1 |
|---|---|
| Product test | Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE). Control of contact protection towards outside – 3000 V/1 min AC |
core/core – 600 V AC - 1 min - acc. to IEC 60584-1 over second inner sheath in water bath –
5000 V AC – 5 min – with reference to EN 50264-2-1
Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE).
Control of contact protection towards outside – 3000 V/1 min AC

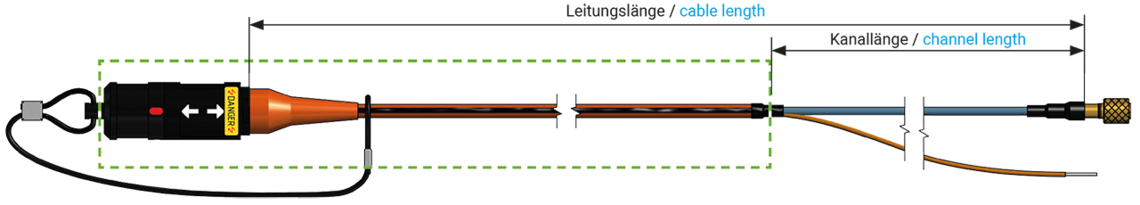

Configuration examples
| item no. | Connection cable length | Length channel 1 | Length grounding | Connector | |
|---|---|---|---|---|---|
| T642-062-666 | 3000 mm | 100 mm | 200 mm | 4-Pin ¼ -28 UNF | Send inquiry |
| T642-062-794 | 6000 mm | 100 mm | 200 mm | 4-Pin ¼ -28 UNF | Send inquiry |
| T642-062-635 | 3000 mm | 100 mm | 200 mm | 4-Pin 8-36 UNF | Send inquiry |
Total cable and channel lengths can be realised on customer’s request.
