USB 3.0

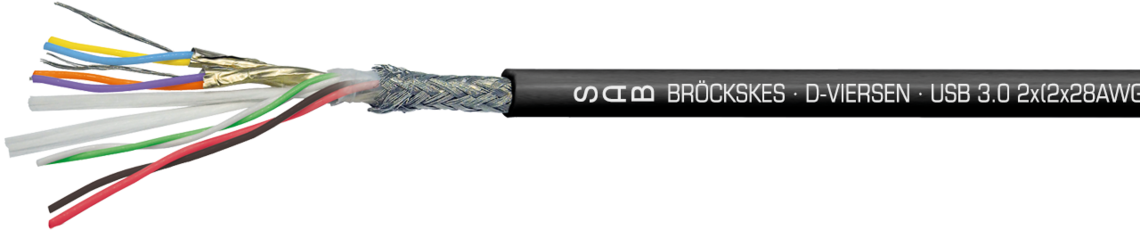

USB 3.0 cable with UL recognition, flexible

Marking for USB 3.0 06030078:
SAB BRÖCKSKES · D-VIERSEN · USB 3.0 2x(2x28AWG)ST+2x28AWG+2x26AWG 0603-0078 UL AWM Style 21083 80°C 300V CE

Marking for USB 3.0 06030078: SAB BRÖCKSKES · D-VIERSEN · USB 3.0 2x(2x28AWG)ST+2x28AWG+2x26AWG 0603-0078 UL AWM Style 21083 80°C 300V CE

Application

The USB 3.0 cable with UL recognition is used for temperatures from (fixed laying) -30°C / +70 °C, (flexible application) -5°C /+70 °C, UL: up to + 80°C.

Outstanding features

  • UL recognition
  • flame retardant and self-extinguishing
  • very good oil resistance
  • transmission length up to 3 m
  • excellent transmission characteristics

Additional information

  • for transmission lengths more than 3 m, please contact us
  • also possible as harnessed cable with USB type A and USB type B plug

Construction

Conductor

silver-plated strands and tinned copper strands

Insulation

special polymer

Colour code

yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0), red, black (power supply)

Stranding

USB 3.0 twisted and screened pairs, USB 2.0 twisted pairs, all elements together

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PVC

Sheath colour

black (similar RAL 9005)

Conductor

silver-plated strands and tinned copper strands

Insulation

special polymer

Colour code

yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0), red, black (power supply)

Stranding

USB 3.0 twisted and screened pairs, USB 2.0 twisted pairs, all elements together

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PVC

Sheath colour

black (similar RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 2000 V - core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range VDE

UL: up to + 80°C

fixed laying: -30°C / +70 °C

flexible application:- 5°C / +70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2

Oil resistance

very good - TM5 acc. to EN 50363-4-1

UL Style

21083

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 2000 V - core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range VDE

UL: up to + 80°C

fixed laying: -30°C / +70 °C

flexible application:- 5°C / +70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2

Oil resistance

very good - TM5 acc. to EN 50363-4-1

UL Style

21083

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Approx. outer-ø Copper figure Cable weight ≈ Ohmic resistance
at 20°C max. Ω/km
28 AWG
Ohmic resistance
at 20°C max. Ω/km
26 AWG
060300782 x (2 x 28 AWG)ST + 2 x 28 AWG + 2 x 26 AWG6,1 mm25,5 kg/km48 kg/km223 Ω/km140 Ω/km Send inquiry
item no.
Dimension
Approx. outer-ø
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C max. Ω/km
28 AWG
Ohmic resistance
at 20°C max. Ω/km
26 AWG
06030078
2 x (2 x 28 AWG)ST + 2 x 28 AWG + 2 x 26 AWG
6,1 mm
25,5 kg/km
48 kg/km
223 Ω/km
140 Ω/km

Other dimensions and colours are possible on request.
