CC 540 CP

PUR control cable with coloured cores, halogen-free, oil resistant, and overall copper screen

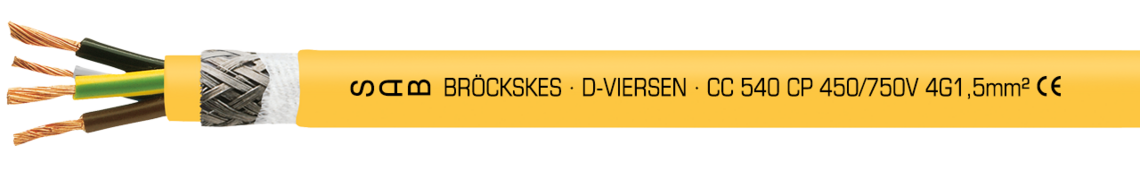

Marking for CC 540 CP 52850415: SAB BRÖCKSKES · D-VIERSEN · CC 540 CP 450/750V 4 G 1,5 mm² CE

Marking for CC 540 CP 52850415: SAB BRÖCKSKES · D-VIERSEN · CC 540 CP 450/750V 4 G 1,5 mm² CE

Application

The control cable with coloured cores is a halogen-free and oil resistant cable with an overall copper screen. Due to the PUR outer sheath the cable is recommended for machine and industrial plant construction, material handling techniques, car manufacturing industry, handling and automation technologies, iron, steel, and chemical industries.

Outstanding features

  • oil resistant
  • abrasion resistant
  • notch resistant
  • good chemical resistance
  • good EMV characteristics

Additional information

Sheath also possible in black or orange

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX ®

Colour code

coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

SABIX ®

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

yellow (RAL 1021)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX ®

Colour code

coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

SABIX ®

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

yellow (RAL 1021)

Technical data

Nominal voltage

Uo/U 300/500 V from 0,75 mm² to 1,0 mm²

Uo/U 450/750 V from 1,0 mm² to 16,0 mm²

Testing voltage

300/500V: core/core 2000 V

300/500V: core/screen 2000 V

450/750 V: core/core 2500 V

450/750 V: core/screen 2500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Weather resistance

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V from 0,75 mm² to 1,0 mm²

Uo/U 450/750 V from 1,0 mm² to 16,0 mm²

Testing voltage

300/500V: core/core 2000 V

300/500V: core/screen 2000 V

450/750 V: core/core 2500 V

450/750 V: core/screen 2500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Weather resistance

good

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

528502072 x 0,75 mm²0,21 mm8,5 mm31 kg/km103 kg/km Send inquiry
528503073 x 0,75 mm²0,21 mm9 mm38,4 kg/km115 kg/km Send inquiry
528504074 x 0,75 mm²0,21 mm9,6 mm45,9 kg/km130 kg/km Send inquiry
528505075 x 0,75 mm²0,21 mm10,5 mm56,8 kg/km157 kg/km Send inquiry
528502112 x 1,00 mm²0,21 mm9 mm36 kg/km116 kg/km Send inquiry
528503113 x 1,00 mm²0,21 mm9,4 mm45,8 kg/km128 kg/km Send inquiry
528504114 x 1,00 mm²0,21 mm10 mm59,1 kg/km148 kg/km Send inquiry
528505115 x 1,00 mm²0,21 mm10,9 mm69 kg/km175 kg/km Send inquiry
528502102 x 1,00 mm²0,21 mm9,8 mm36,4 kg/km135 kg/km Send inquiry
528503103 x 1,00 mm²0,21 mm10,4 mm49,6 kg/km154 kg/km Send inquiry
528504104 x 1,00 mm²0,21 mm11,1 mm59,5 kg/km174 kg/km Send inquiry
528505105 x 1,00 mm²0,21 mm12,4 mm73 kg/km216 kg/km Send inquiry
528502152 x 1,50 mm²0,26 mm10,6 mm49,7 kg/km164 kg/km Send inquiry
528503153 x 1,50 mm²0,26 mm11,1 mm64,3 kg/km179 kg/km Send inquiry
528504154 x 1,50 mm²0,26 mm12,3 mm82,6 kg/km218 kg/km Send inquiry
528505155 x 1,50 mm²0,26 mm13,6 mm109,7 kg/km273 kg/km Send inquiry
528502252 x 2,50 mm²0,26 mm12,3 mm73 kg/km229 kg/km Send inquiry
528503253 x 2,50 mm²0,26 mm12,9 mm97,3 kg/km254 kg/km Send inquiry
528504254 x 2,50 mm²0,26 mm14,2 mm134,2 kg/km310 kg/km Send inquiry
528505255 x 2,50 mm²0,26 mm15,6 mm159,2 kg/km369 kg/km Send inquiry
528502402 x 4,00 mm²0,31 mm14,1 mm114,9 kg/km317 kg/km Send inquiry
528503403 x 4,00 mm²0,31 mm15 mm153,9 kg/km360 kg/km Send inquiry
528504404 x 4,00 mm²0,31 mm16,3 mm198,3 kg/km428 kg/km Send inquiry
528505405 x 4,00 mm²0,31 mm17,9 mm237,7 kg/km512 kg/km Send inquiry
528502602 x 6,00 mm²0,31 mm15,5 mm154,3 kg/km396 kg/km Send inquiry
528503603 x 6,00 mm²0,31 mm16,5 mm217,7 kg/km460 kg/km Send inquiry
528504604 x 6,00 mm²0,31 mm17,9 mm276,1 kg/km543 kg/km Send inquiry
528505605 x 6,00 mm²0,31 mm19,9 mm340,5 kg/km668 kg/km Send inquiry
528502612 x 10,00 mm²0,41 mm19,2 mm244 kg/km628 kg/km Send inquiry
528503613 x 10,00 mm²0,41 mm20,2 mm340,7 kg/km719 kg/km Send inquiry
528504614 x 10,00 mm²0,41 mm22,2 mm444,2 kg/km870 kg/km Send inquiry
528505615 x 10,00 mm²0,41 mm24,6 mm548,8 kg/km1066 kg/km Send inquiry
528502622 x 16,00 mm²0,41 mm22,1 mm367,3 kg/km871 kg/km Send inquiry
528503623 x 16,00 mm²0,41 mm23,5 mm521,8 kg/km1018 kg/km Send inquiry
528504624 x 16,00 mm²0,41 mm25,8 mm684 kg/km1237 kg/km Send inquiry
528505625 x 16,00 mm²0,41 mm28,6 mm846,6 kg/km1514 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
52850207
2 x 0,75 mm²
0,21 mm
8,5 mm
31 kg/km
103 kg/km
52850307
3 x 0,75 mm²
0,21 mm
9 mm
38,4 kg/km
115 kg/km
52850407
4 x 0,75 mm²
0,21 mm
9,6 mm
45,9 kg/km
130 kg/km
52850507
5 x 0,75 mm²
0,21 mm
10,5 mm
56,8 kg/km
157 kg/km
52850211
2 x 1,00 mm²
0,21 mm
9 mm
36 kg/km
116 kg/km
52850311
3 x 1,00 mm²
0,21 mm
9,4 mm
45,8 kg/km
128 kg/km
52850411
4 x 1,00 mm²
0,21 mm
10 mm
59,1 kg/km
148 kg/km
52850511
5 x 1,00 mm²
0,21 mm
10,9 mm
69 kg/km
175 kg/km
52850210
2 x 1,00 mm²
0,21 mm
9,8 mm
36,4 kg/km
135 kg/km
52850310
3 x 1,00 mm²
0,21 mm
10,4 mm
49,6 kg/km
154 kg/km
52850410
4 x 1,00 mm²
0,21 mm
11,1 mm
59,5 kg/km
174 kg/km
52850510
5 x 1,00 mm²
0,21 mm
12,4 mm
73 kg/km
216 kg/km
52850215
2 x 1,50 mm²
0,26 mm
10,6 mm
49,7 kg/km
164 kg/km
52850315
3 x 1,50 mm²
0,26 mm
11,1 mm
64,3 kg/km
179 kg/km
52850415
4 x 1,50 mm²
0,26 mm
12,3 mm
82,6 kg/km
218 kg/km
52850515
5 x 1,50 mm²
0,26 mm
13,6 mm
109,7 kg/km
273 kg/km
52850225
2 x 2,50 mm²
0,26 mm
12,3 mm
73 kg/km
229 kg/km
52850325
3 x 2,50 mm²
0,26 mm
12,9 mm
97,3 kg/km
254 kg/km
52850425
4 x 2,50 mm²
0,26 mm
14,2 mm
134,2 kg/km
310 kg/km
52850525
5 x 2,50 mm²
0,26 mm
15,6 mm
159,2 kg/km
369 kg/km
52850240
2 x 4,00 mm²
0,31 mm
14,1 mm
114,9 kg/km
317 kg/km
52850340
3 x 4,00 mm²
0,31 mm
15 mm
153,9 kg/km
360 kg/km
52850440
4 x 4,00 mm²
0,31 mm
16,3 mm
198,3 kg/km
428 kg/km
52850540
5 x 4,00 mm²
0,31 mm
17,9 mm
237,7 kg/km
512 kg/km
52850260
2 x 6,00 mm²
0,31 mm
15,5 mm
154,3 kg/km
396 kg/km
52850360
3 x 6,00 mm²
0,31 mm
16,5 mm
217,7 kg/km
460 kg/km
52850460
4 x 6,00 mm²
0,31 mm
17,9 mm
276,1 kg/km
543 kg/km
52850560
5 x 6,00 mm²
0,31 mm
19,9 mm
340,5 kg/km
668 kg/km
52850261
2 x 10,00 mm²
0,41 mm
19,2 mm
244 kg/km
628 kg/km
52850361
3 x 10,00 mm²
0,41 mm
20,2 mm
340,7 kg/km
719 kg/km
52850461
4 x 10,00 mm²
0,41 mm
22,2 mm
444,2 kg/km
870 kg/km
52850561
5 x 10,00 mm²
0,41 mm
24,6 mm
548,8 kg/km
1066 kg/km
52850262
2 x 16,00 mm²
0,41 mm
22,1 mm
367,3 kg/km
871 kg/km
52850362
3 x 16,00 mm²
0,41 mm
23,5 mm
521,8 kg/km
1018 kg/km
52850462
4 x 16,00 mm²
0,41 mm
25,8 mm
684 kg/km
1237 kg/km
52850562
5 x 16,00 mm²
0,41 mm
28,6 mm
846,6 kg/km
1514 kg/km

Other dimensions and colours are possible on request.
