CC 550 CP

PUR control cable with numbered cores, halogen-free, oil resistant and overall copper screen

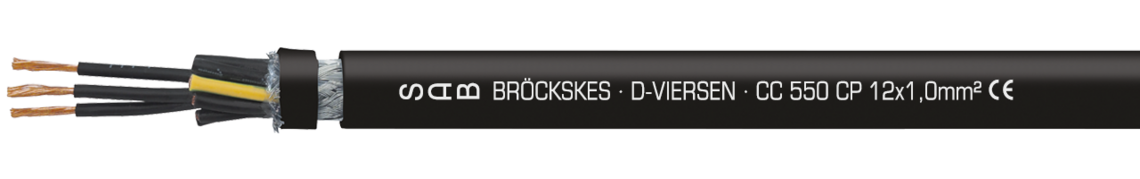

Marking for CC 550 CP 52950515: SAB BRÖCKSKES · D-VIERSEN · CC 550 CP 5 x 1,5 mm² CE

Marking for CC 550 CP 52950515: SAB BRÖCKSKES · D-VIERSEN · CC 550 CP 5 x 1,5 mm² CE

Application

CC 550 CP is a weather resistant, screened control cable with numbered cores, it is halogen-free and oil resistant. Due to the PUR outer sheath the cable is recommended for machine and industrial plant construction, material handling techniques, car manufacturing industry, handling and automation technologies, iron, steel, and chemical industries.

Outstanding features

  • halogen-free
  • very good mechanical strength
  • abrasion resistant
  • notch resistant
  • good chemical resistance
  • screened, good EMV characteristics
  • oil resistant
  • flame retardant
  • sunlight resistant
  • weather resistant

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

PUR, TMPU acc. to

EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

PUR, TMPU acc. to

EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to DIN VDE 0282 part 10 + HD 22.10

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Weather resistance

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to DIN VDE 0282 part 10 + HD 22.10

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Weather resistance

good

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

529507057 x 0,50 mm²0,21 mm7,7 mm53,4 kg/km93 kg/km Send inquiry
5295180518 x 0,50 mm²0,21 mm11,7 mm140,4 kg/km217 kg/km Send inquiry
5295360536 x 0,50 mm²0,21 mm15,7 mm270,3 kg/km400 kg/km Send inquiry
5295121012 x 1,00 mm²0,21 mm11,9 mm169,3 kg/km234 kg/km Send inquiry
5295421042 x 1,00 mm²0,21 mm20,2 mm528,3 kg/km723 kg/km Send inquiry
529503153 x 1,50 mm²0,26 mm7,8 mm64,5 kg/km96 kg/km Send inquiry
529505155 x 1,50 mm²0,26 mm9,1 mm98,2 kg/km141 kg/km Send inquiry
5295181518 x 1,50 mm²0,26 mm15,8 mm356,8 kg/km454 kg/km Send inquiry
529507257 x 2,50 mm²0,26 mm12,2 mm222,3 kg/km282 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
52950705
7 x 0,50 mm²
0,21 mm
7,7 mm
53,4 kg/km
93 kg/km
52951805
18 x 0,50 mm²
0,21 mm
11,7 mm
140,4 kg/km
217 kg/km
52953605
36 x 0,50 mm²
0,21 mm
15,7 mm
270,3 kg/km
400 kg/km
52951210
12 x 1,00 mm²
0,21 mm
11,9 mm
169,3 kg/km
234 kg/km
52954210
42 x 1,00 mm²
0,21 mm
20,2 mm
528,3 kg/km
723 kg/km
52950315
3 x 1,50 mm²
0,26 mm
7,8 mm
64,5 kg/km
96 kg/km
52950515
5 x 1,50 mm²
0,26 mm
9,1 mm
98,2 kg/km
141 kg/km
52951815
18 x 1,50 mm²
0,26 mm
15,8 mm
356,8 kg/km
454 kg/km
52950725
7 x 2,50 mm²
0,26 mm
12,2 mm
222,3 kg/km
282 kg/km

Other dimensions and colours are possible on request.
