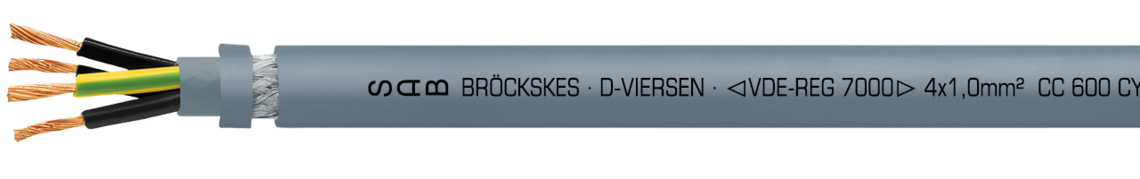

CC 600 CY (AWG 8 - AWG 1)

PVC control cable with numbered cores, inner sheath and overall copper screen acc. to VDE and UL/CSA

Marking for CC 600 CY 02590804: SAB BRÖCKSKES · D-VIERSEN · CC 600 CY 8 AWG/4c 02590804 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C F 600V FT1 FT2 CE

Download data sheet for CC 600 CY (AWG 8 - AWG 1)

Questions about our products?

Application

Shielded control cable with inner sheath, on request with metric conductor stranding, numbered cores, and overall copper screen as well as AWG 8 - AWG 1. The cable is recommended for use in car manufacturing industry, automation technologies, press and form engineering, machine tools, textile, printing and paper machine construction, iron and steel industries.

Outstanding features

UL and CSA approved
high mechanical loading capacity
oil resistant
on request construction with metric conductor stranding and VDE-Reg. no.

Construction

Conductor	bare copper strands acc. to UL/CSA
Insulation	special PVC acc. to VDE and UL/CSA
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	in layers
Inner sheath	special PVC acc. to VDE and UL/CSA
Screen	tinned copper braiding
Sheath material	special oil resistant PVC acc. to VDE and UL/CSA
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to UL/CSA

Insulation

special PVC acc. to VDE and UL/CSA

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

special PVC acc. to VDE and UL/CSA

Screen

tinned copper braiding

Sheath material

special oil resistant PVC acc. to VDE and UL/CSA

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	DIN VDE: Uo/U 300/500 V UL/CSA: 600 V
Testing voltage	core/core 3000 V core/screen 2000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	5 x 10^7 cJ/kg
Temperature range	DIN VDE fixed laying: -40/+70 °C DIN VDE flexible application: +5/+70 °C UL/CSA fixed laying: up to +90°C UL/CSA flexible application: up to +90°C
Fire performance	flame retardant and selfextinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2
Oil resistance	very good - PVC, TM5 acc. to DIN VDE 0281 part 1 + HD 21.1, Oil 60 °C acc. to UL 758, Fuel Oil acc. to CSA-C 22.2 No. 210
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70 °C

DIN VDE flexible application: +5/+70 °C

UL/CSA fixed laying: up to +90°C

UL/CSA flexible application: up to +90°C

Fire performance

flame retardant and selfextinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - PVC, TM5 acc. to DIN VDE 0281 part 1

+ HD 21.1, Oil 60 °C acc. to UL 758, Fuel Oil acc. to CSA-C 22.2 No. 210

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	no. of cores x cross section	largest single wire-ø	outer-ø ± 5%	copper figure	cable weight ca.
02590804	4 x 8 AWG	0,41 mm	20,5 mm	517,1 kg/km	790 kg/km	Send inquiry
02590604	4 x 6 AWG	0,41 mm	24,3 mm	771,1 kg/km	1110 kg/km	Send inquiry
02590404	4 x 4 AWG	0,41 mm	29,4 mm	1033,3 kg/km	1703 kg/km	Send inquiry
02590204	4 x 2 AWG	0,41 mm	34,2 mm	1553,2 kg/km	2328 kg/km	Send inquiry
02590104	4 x 1 AWG	0,41 mm	36,6 mm	1879,3 kg/km	2801 kg/km	Send inquiry

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

02590804

4 x 8 AWG

0,41 mm

20,5 mm

517,1 kg/km

790 kg/km

Send inquiry

02590604

4 x 6 AWG

0,41 mm

24,3 mm

771,1 kg/km

1110 kg/km

Send inquiry

02590404

4 x 4 AWG

0,41 mm

29,4 mm

1033,3 kg/km

1703 kg/km

Send inquiry

02590204

4 x 2 AWG

0,41 mm

34,2 mm

1553,2 kg/km

2328 kg/km

Send inquiry

02590104

4 x 1 AWG

0,41 mm

36,6 mm

1879,3 kg/km

2801 kg/km

Send inquiry

Other dimensions and colours are possible on request.
