CC 600 CY T (8 AWG - 1 AWG)
PVC control cable with numbered cores, extended temperature range and overall copper screen acc. to UL/CSA

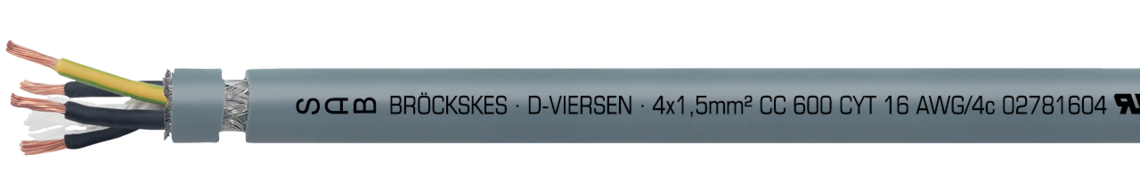

Marking for CC 600 CY T 02780804: SAB BRÖCKSKES · D-VIERSEN · CC 600 CY T 8 AWG/4c 027808504 UL AWM Style 2586 105°C 600V CSA AWM I/II A/B 105°C 600V FT1 FT2 CE
Application
CC 600 CY T is an UL and CSA approved PVC control cable with extended temperature range, overall copper screen, and numbered cores as well as AWG 8 - AWG 1. It is recommended for use in machine tool and packaging machine construction, material handling and automation technologies, car manufacturing industry, CNC-machines.
Outstanding features
- UL and CSA approved
- Temperature range up to + 105°C
- on request construction with metric conductor stranding
- EAC approval
Cable construction
| Conductor | bare copper strands acc. to UL/CSA |
|---|---|
| Insulation | special heat resistant PVC |
| Colour code | black cores with consecutive numbers acc. to EN 50334; green-yellow earth wire from 3 cores |
| Stranding | in layers with PETP foil over the outer layer |
| Screen | tinned copper braiding |
| Sheath material | special heat resistant PVC |
| Sheath colour | grey (RAL 7000) |
Technical data
| Nominal voltage | DIN VDE: Uo/U 300/500 V UL/CSA: 600 V |
|---|---|
| Testing voltage | 3000 V acc. to DIN VDE 0281 part 2 + HD 21.2; core/screen: 1000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Radiation resistance | 8 x 10^7 cJ/kg |
| Temperature range | DIN VDE fixed laying: -40/+90 °C DIN VDE flexible application: +5/+90 °C DIN VDE short-time use: +105 °C UL/CSA fixed laying: up to +105 °C UL/CSA flexible application: up to +105 °C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2, UL VW-1 + CSA FT1 and FT2 |
| Oil resistance | |
| Absence of harmful substances |
Dimensions
| item no. | no. of cores x cross section | largest single wire-ø | outer-ø ± 5% | copper figure | cable weight ca. |
|---|---|---|---|---|---|
| 02782002 | 2 x 20 | 0,21 | 5,8 | 26 | 46 |
| 02782003 | 3 x 20 | 0,21 | 6,2 | 31,5 | 56 |
| 02782004 | 4 x 20 | 0,21 | 6,6 | 48,7 | 66 |
| 02782007 | 7 x 20 | 0,21 | 7,9 | 68,2 | 100 |
| 02782012 | 12 x 20 | 0,21 | 10,6 | 111,5 | 175 |
| 02782015 | 15 x 20 | 0,21 | 11,6 | 128,1 | 210 |
| 02782025 | 25 x 20 | 0,21 | 14,6 | 196,7 | 320 |
| 02781802 | 2 x 18 | 0,21 | 6,6 | 47,4 | 60 |
| 02781803 | 3 x 18 | 0,21 | 6,9 | 57,6 | 75 |
| 02781804 | 4 x 18 | 0,21 | 7,7 | 70,3 | 93 |
| 02781805 | 5 x 18 | 0,21 | 8,3 | 85,6 | 111 |
| 02781807 | 7 x 18 | 0,21 | 9,2 | 105,6 | 143 |
| 02781812 | 12 x 18 | 0,21 | 12,2 | 166,9 | 245 |
| 02781815 | 15 x 18 | 0,21 | 13,6 | 205,2 | 304 |
| 02781818 | 18 x 18 | 0,21 | 14,3 | 240,8 | 343 |
| 02781825 | 25 x 18 | 0,21 | 17,3 | 343,7 | 483 |
| 02781850 | 50 x 18 | 0,21 | 23,3 | 620,3 | 902 |
| 02781602 | 2 x 16 | 0,26 | 7,2 | 58,3 | 74 |
| 02781603 | 3 x 16 | 0,26 | 7,8 | 75,3 | 95 |
| 02781604 | 4 x 16 | 0,26 | 8,4 | 95,3 | 116 |
| 02781605 | 5 x 16 | 0,26 | 9,3 | 110,5 | 144 |
| 02781607 | 7 x 16 | 0,26 | 10,3 | 150,7 | 193 |
| 02781612 | 12 x 16 | 0,26 | 13,7 | 231,2 | 319 |
| 02781615 | 15 x 16 | 0,26 | 15,2 | 285,3 | 393 |
| 02781618 | 18 x 16 | 0,26 | 16,4 | 358,2 | 475 |
| 02781625 | 25 x 16 | 0,26 | 19,6 | 476,2 | 642 |
| 02781650 | 50 x 16 | 0,26 | 25,8 | 881 | 1179 |
| 02781403 | 3 x 14 | 0,26 | 9,3 | 110,5 | 139 |
| 02781404 | 4 x 14 | 0,26 | 10,2 | 145,8 | 184 |
| 02781405 | 5 x 14 | 0,26 | 11,4 | 171,8 | 227 |
| 02781407 | 7 x 14 | 0,26 | 12,5 | 222,2 | 289 |
| 02781412 | 12 x 14 | 0,26 | 16,8 | 388 | 498 |
| 02781418 | 18 x 14 | 0,26 | 19,8 | 548,8 | 709 |
| 02781425 | 25 x 14 | 0,26 | 23,9 | 754 | 979 |
| 02781203 | 3 x 12 | 0,31 | 10,9 | 165,8 | 205 |
| 02781204 | 4 x 12 | 0,31 | 12,1 | 206,1 | 264 |
| 02781205 | 5 x 12 | 0,31 | 13,2 | 252,9 | 320 |
| 02781207 | 7 x 12 | 0,31 | 15 | 337,7 | 433 |
| 02781003 | 3 x 10 | 0,31 | 12,7 | 232,8 | 291 |
| 02781004 | 4 x 10 | 0,31 | 13,9 | 298 | 365 |
| 02781005 | 5 x 10 | 0,31 | 15,4 | 358,1 | 450 |
| 02780804 | 4 x 8 | 0,41 | 17,9 | 448,6 | 602 |
| 02780604 | 4 x 6 | 0,41 | 22,5 | 750,4 | 964 |
| 02780404 | 4 x 4 | 0,41 | 27,6 | 1016,3 | 1356 |
| 02780204 | 4 x 2 | 0,41 | 31,5 | 1541,2 | 1891 |
| 02780104 | 4 x 1 | 0,41 | 33,9 | 1858,5 | 2341 |
