CC 600 T (AWG 8 - AWG 1)
PVC control cable with numbered cores and extended temperature range acc. to UL/CSA

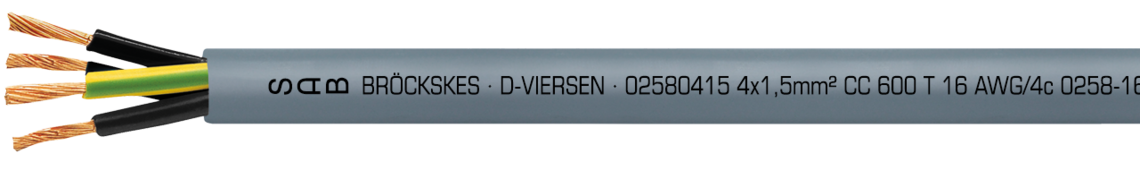

Marking for CC 600 T 02580805: SAB BRÖCKSKES · D-VIERSEN · CC 600 T 8 AWG/5c 02580805 UL AWM Style 2586 105°C 600V CSA AWM I/II A/B 105°C 600V FT1 FT2 CE
Application
CC 600 T is an approved PVC control cable with extended temperature range and numbered cores as well as AWG 8 - AWG 1. It is recommended for use in machine tool and packaging machine construction, material handling and automation technologies, car manufacturing industry, CNC-machines.
Outstanding features
- UL and CSA approved
- Temperature range up to + 105°C
- on request construction with metric conductor stranding
Construction
| Conductor | bare copper strands acc. to UL/CSA |
|---|---|
| Insulation | special heat resistant PVC |
| Colour code | black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Stranding | in layers |
| Sheath material | special heat resistant PVC |
| Sheath colour | grey (RAL 7000) |
bare copper strands acc. to UL/CSA
special heat resistant PVC
black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,
green-yellow earth wire from 3 cores
in layers
special heat resistant PVC
grey (RAL 7000)
Technical data
| Nominal voltage | DIN VDE: Uo/U 300/500 V UL/CSA: 600 V |
|---|---|
| Testing voltage | core/core 2000 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d |
| Radiation resistance | 8 x 10^7 cJ/kg |
| Temperature range | DIN VDE fixed laying: -40/+90 °C DIN VDE flexible application: +5/+90 °C DIN VDE short-time use: +105 °C UL/CSA fixed laying: up to +105 °C UL/CSA flexible application: up to +105 °C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2 |
| Oil resistance | |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
DIN VDE: Uo/U 300/500 V
UL/CSA: 600 V
core/core 2000 V
fixed laying: 4 x d
flexible application: 6 x d
8 x 10^7 cJ/kg
DIN VDE fixed laying: -40/+90 °C
DIN VDE flexible application: +5/+90 °C
DIN VDE short-time use: +105 °C
UL/CSA fixed laying: up to +105 °C
UL/CSA flexible application: up to +105 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L02580804 | 4 x 8 AWG | 0,41 mm | 17 mm | 337,9 kg/km | 557 kg/km | Send inquiry |
| L02580805 | 5 x 8 AWG | 0,41 mm | 18,9 mm | 442,4 kg/km | 676 kg/km | Send inquiry |
| L02580604 | 4 x 6 AWG | 0,41 mm | 20,9 mm | 541,4 kg/km | 755 kg/km | Send inquiry |
| L02580404 | 4 x 4 AWG | 0,41 mm | 25,6 mm | 844,8 kg/km | 1335 kg/km | Send inquiry |
| L02580204 | 4 x 2 AWG | 0,41 mm | 30,4 mm | 1344 kg/km | 2052 kg/km | Send inquiry |
| L02580104 | 4 x 1 AWG | 0,41 mm | 33,2 mm | 1651,2 kg/km | 2423 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
