CC 600 World CY

PVC control cable with numbered cores, inner sheath and overall copper screen acc. to HAR/UL/CSA/VDE

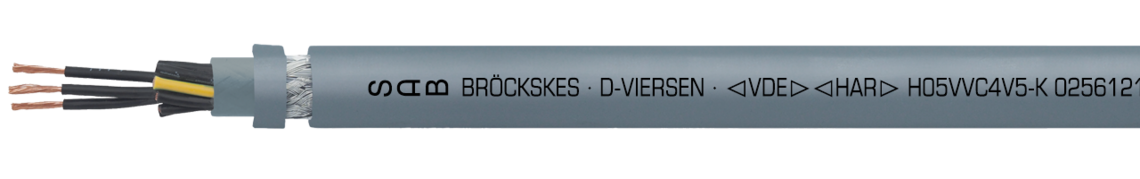

Marking for CC 600 World CY 02561805: SAB BRÖCKSKES · D-VIERSEN · <VDE> <HAR> H05VVC4V5-K 02561805 18G0,5mm² CC 600 World CY 20 AWG/18c 02562018 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C F 600V FT1 FT2 CE

Marking for CC 600 World CY 02561805: SAB BRÖCKSKES · D-VIERSEN · <VDE> <HAR> H05VVC4V5-K 02561805 18G0,5mm² CC 600 World CY 20 AWG/18c 02562018 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C F 600V FT1 FT2 CE

Application

CC 600 World CY is a PVC control cable with overall copper screen, numbered cores, and inner sheath. Additionally, it is oil resistant, flexible, and has good EMC characteristics. This cable is recommended for use in machine tool and packaging machine construction, material handling and automation technologies, car manufacturing industry, CNC-machines.

Outstanding features

  • good EMV characteristics
  • flexible
  • oil resistant
  • VDE resp. HAR, UL and CSA standardized

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Sheath material

PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Sheath material

PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA fixed laying: up to +90°C

UL/CSA flexible application: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Chem. resistance

see Technical Data

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA fixed laying: up to +90°C

UL/CSA flexible application: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Chem. resistance

Dimensions

item no.

no. of cores x
cross section

cross section

outer-ø ± 5%

copper figure

cable weight ca.

025603053 x 0,50 mm²20 AWG9,1 mm48,4 kg/km121 kg/km Send inquiry
025604054 x 0,50 mm²20 AWG9,9 mm66,9 kg/km149 kg/km Send inquiry
025605055 x 0,50 mm²20 AWG10,6 mm71,3 kg/km168 kg/km Send inquiry
025607057 x 0,50 mm²20 AWG12,2 mm83,8 kg/km215 kg/km Send inquiry
0256120512 x 0,50 mm²20 AWG14,4 mm120,7 kg/km291 kg/km Send inquiry
0256180518 x 0,50 mm²20 AWG16,9 mm197,3 kg/km425 kg/km Send inquiry
025603073 x 0,75 mm²19 AWG9,9 mm68,1 kg/km150 kg/km Send inquiry
025604074 x 0,75 mm²19 AWG10,6 mm74,7 kg/km169 kg/km Send inquiry
025605075 x 0,75 mm²19 AWG11,4 mm83 kg/km195 kg/km Send inquiry
025607077 x 0,75 mm²19 AWG13,2 mm108,4 kg/km259 kg/km Send inquiry
0256120712 x 0,75 mm²19 AWG16 mm173,3 kg/km371 kg/km Send inquiry
0256180718 x 0,75 mm²19 AWG18,4 mm238,7 kg/km505 kg/km Send inquiry
025603103 x 1,00 mm²18 AWG10,1 mm75,7 kg/km160 kg/km Send inquiry
025604104 x 1,00 mm²18 AWG10,5 mm81,8 kg/km172 kg/km Send inquiry
025605105 x 1,00 mm²18 AWG11,7 mm95,5 kg/km211 kg/km Send inquiry
025607107 x 1,00 mm²18 AWG13,6 mm125,6 kg/km283 kg/km Send inquiry
0256121012 x 1,00 mm²18 AWG16,5 mm219,9 kg/km422 kg/km Send inquiry
0256181018 x 1,00 mm²18 AWG19,1 mm283,6 kg/km564 kg/km Send inquiry
025603153 x 1,50 mm²16 AWG11,1 mm89,7 kg/km193 kg/km Send inquiry
025604154 x 1,50 mm²16 AWG12,2 mm105,8 kg/km229 kg/km Send inquiry
025605155 x 1,50 mm²16 AWG13,3 mm130,1 kg/km277 kg/km Send inquiry
025607157 x 1,50 mm²16 AWG15,9 mm187,4 kg/km392 kg/km Send inquiry
0256121512 x 1,50 mm²16 AWG18,9 mm272,3 kg/km535 kg/km Send inquiry
0256181518 x 1,50 mm²16 AWG22,5 mm398,2 kg/km783 kg/km Send inquiry
025603253 x 2,50 mm²14 AWG12,9 mm129,5 kg/km266 kg/km Send inquiry
025604254 x 2,50 mm²14 AWG13,8 mm154,4 kg/km306 kg/km Send inquiry
025605255 x 2,50 mm²14 AWG15,5 mm205,9 kg/km393 kg/km Send inquiry
025607257 x 2,50 mm²14 AWG18,1 mm276,3 kg/km535 kg/km Send inquiry
0256122512 x 2,50 mm²14 AWG22,3 mm410,6 kg/km773 kg/km Send inquiry
0256182518 x 2,50 mm²14 AWG25,8 mm582 kg/km1066 kg/km Send inquiry
item no.
no. of cores x
cross section
cross section
outer-ø ± 5%
copper figure
cable weight ca.
02560305
3 x 0,50 mm²
20 AWG
9,1 mm
48,4 kg/km
121 kg/km
02560405
4 x 0,50 mm²
20 AWG
9,9 mm
66,9 kg/km
149 kg/km
02560505
5 x 0,50 mm²
20 AWG
10,6 mm
71,3 kg/km
168 kg/km
02560705
7 x 0,50 mm²
20 AWG
12,2 mm
83,8 kg/km
215 kg/km
02561205
12 x 0,50 mm²
20 AWG
14,4 mm
120,7 kg/km
291 kg/km
02561805
18 x 0,50 mm²
20 AWG
16,9 mm
197,3 kg/km
425 kg/km
02560307
3 x 0,75 mm²
19 AWG
9,9 mm
68,1 kg/km
150 kg/km
02560407
4 x 0,75 mm²
19 AWG
10,6 mm
74,7 kg/km
169 kg/km
02560507
5 x 0,75 mm²
19 AWG
11,4 mm
83 kg/km
195 kg/km
02560707
7 x 0,75 mm²
19 AWG
13,2 mm
108,4 kg/km
259 kg/km
02561207
12 x 0,75 mm²
19 AWG
16 mm
173,3 kg/km
371 kg/km
02561807
18 x 0,75 mm²
19 AWG
18,4 mm
238,7 kg/km
505 kg/km
02560310
3 x 1,00 mm²
18 AWG
10,1 mm
75,7 kg/km
160 kg/km
02560410
4 x 1,00 mm²
18 AWG
10,5 mm
81,8 kg/km
172 kg/km
02560510
5 x 1,00 mm²
18 AWG
11,7 mm
95,5 kg/km
211 kg/km
02560710
7 x 1,00 mm²
18 AWG
13,6 mm
125,6 kg/km
283 kg/km
02561210
12 x 1,00 mm²
18 AWG
16,5 mm
219,9 kg/km
422 kg/km
02561810
18 x 1,00 mm²
18 AWG
19,1 mm
283,6 kg/km
564 kg/km
02560315
3 x 1,50 mm²
16 AWG
11,1 mm
89,7 kg/km
193 kg/km
02560415
4 x 1,50 mm²
16 AWG
12,2 mm
105,8 kg/km
229 kg/km
02560515
5 x 1,50 mm²
16 AWG
13,3 mm
130,1 kg/km
277 kg/km
02560715
7 x 1,50 mm²
16 AWG
15,9 mm
187,4 kg/km
392 kg/km
02561215
12 x 1,50 mm²
16 AWG
18,9 mm
272,3 kg/km
535 kg/km
02561815
18 x 1,50 mm²
16 AWG
22,5 mm
398,2 kg/km
783 kg/km
02560325
3 x 2,50 mm²
14 AWG
12,9 mm
129,5 kg/km
266 kg/km
02560425
4 x 2,50 mm²
14 AWG
13,8 mm
154,4 kg/km
306 kg/km
02560525
5 x 2,50 mm²
14 AWG
15,5 mm
205,9 kg/km
393 kg/km
02560725
7 x 2,50 mm²
14 AWG
18,1 mm
276,3 kg/km
535 kg/km
02561225
12 x 2,50 mm²
14 AWG
22,3 mm
410,6 kg/km
773 kg/km
02561825
18 x 2,50 mm²
14 AWG
25,8 mm
582 kg/km
1066 kg/km

Other dimensions and colours are possible on request.
