SAB Kabel

CC 640 P

PUR control cable with coloured cores, halogen-free and oil resistant acc. to UL/CSA

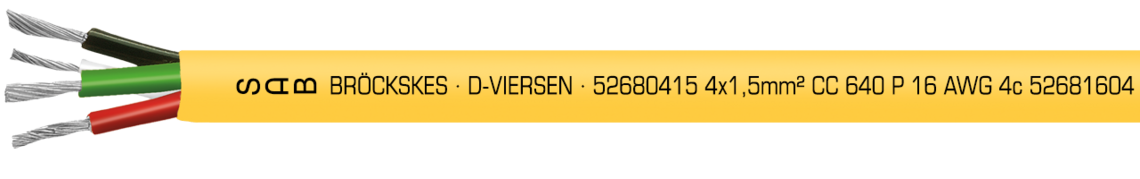

Marking for CC 640 P 52680415: SAB BRÖCKSKES · D-VIERSEN · 52680415 4 x 1,5 mm² CC 640 P 16 AWG 4c 52681604 UL AWM Style 21127 75°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Marking for CC 640 P 52680415: SAB BRÖCKSKES · D-VIERSEN · 52680415 4 x 1,5 mm² CC 640 P 16 AWG 4c 52681604 UL AWM Style 21127 75°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Application

CC 640 P is a PUR control cable with coloured cores. Moreover, it is halogen-free and oil resistant. Additionally, it is abrasion and notch resistant and has a good chemical resistance. Due to the PUR outer sheath the cable is recommended for machine and industrial plant construction, material handling techniques, car manufacturing industry, handling and automation technologies, iron, steel, and chemical industries.

Outstanding features

  • UL recognized, CSA approved
  • oil resistant
  • abrasion resistant
  • notch resistant
  • good chemical resistance

Additional information

Sheath also possible in black or orange

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

US 1, see chapter N „Technical Data“

Stranding

in layers, with a non-woven tape over the outer layer

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

yellow (RAL 1021)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

US 1, see chapter N „Technical Data“

Stranding

in layers, with a non-woven tape over the outer layer

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

yellow (RAL 1021)

Technical data

Nominal voltage

Uo/U: 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+90°C

DIN VDE flexible application: -30/+90°C

UL: up to +75°C

CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - PUR TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Flexibility

very good

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U: 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+90°C

DIN VDE flexible application: -30/+90°C

UL: up to +75°C

CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - PUR TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Flexibility

very good

Weather resistance

very good

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

526802102 x 1,00 mm²0,21 mm7 mm19,2 kg/km61 kg/km Send inquiry
526803103 x 1,00 mm²0,21 mm7,4 mm28,8 kg/km72 kg/km Send inquiry
526804104 x 1,00 mm²0,21 mm7,9 mm38,4 kg/km86 kg/km Send inquiry
526805105 x 1,00 mm²0,21 mm8,5 mm48 kg/km101 kg/km Send inquiry
526807107 x 1,00 mm²0,21 mm9,2 mm67,2 kg/km127 kg/km Send inquiry
5268121012 x 1,00 mm²0,21 mm11,6 mm115,2 kg/km199 kg/km Send inquiry
526802152 x 1,50 mm²0,26 mm7,6 mm28,8 kg/km75 kg/km Send inquiry
526803153 x 1,50 mm²0,26 mm8 mm43,2 kg/km90 kg/km Send inquiry
526804154 x 1,50 mm²0,26 mm8,6 mm57,6 kg/km109 kg/km Send inquiry
526805155 x 1,50 mm²0,26 mm9,3 mm72 kg/km129 kg/km Send inquiry
526807157 x 1,50 mm²0,26 mm10,1 mm100,8 kg/km165 kg/km Send inquiry
5268121512 x 1,50 mm²0,26 mm12,8 mm172,8 kg/km261 kg/km Send inquiry
526802252 x 2,50 mm²0,26 mm8,4 mm48 kg/km101 kg/km Send inquiry
526803253 x 2,50 mm²0,26 mm8,9 mm72 kg/km124 kg/km Send inquiry
526804254 x 2,50 mm²0,26 mm9,6 mm96 kg/km152 kg/km Send inquiry
526805255 x 2,50 mm²0,26 mm10,4 mm120 kg/km182 kg/km Send inquiry
526807257 x 2,50 mm²0,26 mm11,3 mm168 kg/km235 kg/km Send inquiry
526803403 x 4,00 mm²0,31 mm10,8 mm115,2 kg/km190 kg/km Send inquiry
526804404 x 4,00 mm²0,31 mm11,7 mm153,6 kg/km234 kg/km Send inquiry
526805405 x 4,00 mm²0,31 mm12,8 mm192 kg/km284 kg/km Send inquiry
526803603 x 6,00 mm²0,31 mm12,3 mm172,8 kg/km256 kg/km Send inquiry
526804604 x 6,00 mm²0,31 mm13,4 mm230,4 kg/km321 kg/km Send inquiry
526805605 x 6,00 mm²0,31 mm14,7 mm288 kg/km404 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
52680210
2 x 1,00 mm²
0,21 mm
7 mm
19,2 kg/km
61 kg/km
52680310
3 x 1,00 mm²
0,21 mm
7,4 mm
28,8 kg/km
72 kg/km
52680410
4 x 1,00 mm²
0,21 mm
7,9 mm
38,4 kg/km
86 kg/km
52680510
5 x 1,00 mm²
0,21 mm
8,5 mm
48 kg/km
101 kg/km
52680710
7 x 1,00 mm²
0,21 mm
9,2 mm
67,2 kg/km
127 kg/km
52681210
12 x 1,00 mm²
0,21 mm
11,6 mm
115,2 kg/km
199 kg/km
52680215
2 x 1,50 mm²
0,26 mm
7,6 mm
28,8 kg/km
75 kg/km
52680315
3 x 1,50 mm²
0,26 mm
8 mm
43,2 kg/km
90 kg/km
52680415
4 x 1,50 mm²
0,26 mm
8,6 mm
57,6 kg/km
109 kg/km
52680515
5 x 1,50 mm²
0,26 mm
9,3 mm
72 kg/km
129 kg/km
52680715
7 x 1,50 mm²
0,26 mm
10,1 mm
100,8 kg/km
165 kg/km
52681215
12 x 1,50 mm²
0,26 mm
12,8 mm
172,8 kg/km
261 kg/km
52680225
2 x 2,50 mm²
0,26 mm
8,4 mm
48 kg/km
101 kg/km
52680325
3 x 2,50 mm²
0,26 mm
8,9 mm
72 kg/km
124 kg/km
52680425
4 x 2,50 mm²
0,26 mm
9,6 mm
96 kg/km
152 kg/km
52680525
5 x 2,50 mm²
0,26 mm
10,4 mm
120 kg/km
182 kg/km
52680725
7 x 2,50 mm²
0,26 mm
11,3 mm
168 kg/km
235 kg/km
52680340
3 x 4,00 mm²
0,31 mm
10,8 mm
115,2 kg/km
190 kg/km
52680440
4 x 4,00 mm²
0,31 mm
11,7 mm
153,6 kg/km
234 kg/km
52680540
5 x 4,00 mm²
0,31 mm
12,8 mm
192 kg/km
284 kg/km
52680360
3 x 6,00 mm²
0,31 mm
12,3 mm
172,8 kg/km
256 kg/km
52680460
4 x 6,00 mm²
0,31 mm
13,4 mm
230,4 kg/km
321 kg/km
52680560
5 x 6,00 mm²
0,31 mm
14,7 mm
288 kg/km
404 kg/km

Other dimensions and colours are possible on request.
