SAB Kabel

CRX 600 C

Oil resistant control cable with tinned copper screen, UL and cUL approved

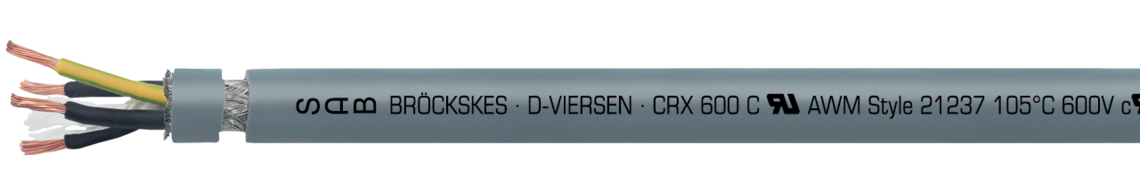

Marking for CRX 600 C 32140315: SAB BRÖCKSKES · D-VIERSEN · CRX 600 C UL AWM Style 21237 105°C 600V cUL AWM I/II A/B 105°C Oil 60°C 1000V FT1 FT2 CE

Marking for CRX 600 C 32140315: SAB BRÖCKSKES · D-VIERSEN · CRX 600 C UL AWM Style 21237 105°C 600V cUL AWM I/II A/B 105°C Oil 60°C 1000V FT1 FT2 CE

Application

Oil resistant control cable with extra chemical resistance that has numbered cores and tinned copper screen is for the use in industrial painting machinery, water treatment facilities, chemical processing, harsh environments and areas utilizing various cleaning solvents. It belongs to control and power supply cables with extra chemical resistance, such as MEK, Acetone, Xylene, and Turpentine.

Outstanding features

  • UL and cUL approved
  • all-purpose flexible
  • oil resistant

Additional information

Extra chemical resistance!

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 conductors

Stranding

in layers

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

TPE

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 conductors

Stranding

in layers

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

TPE

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage

UL: 600 V

cUL: 1000 V

Testing voltage

core/core 2000 V

core/screen 1000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

DIN VDE fixed laying: -30/+90 °C

DIN VDE flexible application: -20/+90 °C

UL-AWM + cUL-AWM: up to +105°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, cUL FT1, FT2

Oil resistance

Oil 60°C

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage

UL: 600 V

cUL: 1000 V

Testing voltage

core/core 2000 V

core/screen 1000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

DIN VDE fixed laying: -30/+90 °C

DIN VDE flexible application: -20/+90 °C

UL-AWM + cUL-AWM: up to +105°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, cUL FT1, FT2

Oil resistance

Oil 60°C

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø

copper figure

cable weight ca.

321420022 x 0,50 mm²0,21 mm5,9 mm25,5 kg/km42 kg/km Send inquiry
321420033 x 0,50 mm²0,21 mm6,2 mm30,5 kg/km51 kg/km Send inquiry
321420044 x 0,50 mm²0,21 mm6,6 mm36,9 kg/km60 kg/km Send inquiry
321420055 x 0,50 mm²0,21 mm7,2 mm43,7 kg/km72 kg/km Send inquiry
321420077 x 0,50 mm²0,21 mm7,8 mm55,1 kg/km89 kg/km Send inquiry
3214201212 x 0,50 mm²0,21 mm10 mm86,8 kg/km141 kg/km Send inquiry
3214201515 x 0,50 mm²0,21 mm11,5 mm126 kg/km191 kg/km Send inquiry
321418022 x 1,00 mm²0,21 mm6,6 mm36,9 kg/km54 kg/km Send inquiry
321418033 x 1,00 mm²0,21 mm7 mm48,4 kg/km69 kg/km Send inquiry
321418044 x 1,00 mm²0,21 mm7,5 mm59,7 kg/km84 kg/km Send inquiry
321418055 x 1,00 mm²0,21 mm8,2 mm71,7 kg/km101 kg/km Send inquiry
321418077 x 1,00 mm²0,21 mm9 mm93,4 kg/km129 kg/km Send inquiry
321418099 x 1,00 mm²0,21 mm11,3 mm140,3 kg/km188 kg/km Send inquiry
3214181212 x 1,00 mm²0,21 mm12,1 mm169,5 kg/km225 kg/km Send inquiry
3214181515 x 1,00 mm²0,21 mm13,5 mm203,8 kg/km277 kg/km Send inquiry
3214181818 x 1,00 mm²0,21 mm14,3 mm258,5 kg/km332 kg/km Send inquiry
3214182525 x 1,00 mm²0,21 mm17,2 mm350 kg/km451 kg/km Send inquiry
3214185050 x 1,00 mm²0,21 mm22,8 mm620,3 kg/km818 kg/km Send inquiry
321416022 x 1,50 mm²0,26 mm7,2 mm48,5 kg/km67 kg/km Send inquiry
321416033 x 1,50 mm²0,26 mm7,6 mm64,6 kg/km86 kg/km Send inquiry
321416044 x 1,50 mm²0,26 mm8,3 mm81,4 kg/km106 kg/km Send inquiry
321416055 x 1,50 mm²0,26 mm9,2 mm98,3 kg/km131 kg/km Send inquiry
321416077 x 1,50 mm²0,26 mm9,9 mm129,9 kg/km165 kg/km Send inquiry
3214161212 x 1,50 mm²0,26 mm13,5 mm232,6 kg/km292 kg/km Send inquiry
3214161515 x 1,50 mm²0,26 mm15,3 mm313,2 kg/km382 kg/km Send inquiry
3214161818 x 1,50 mm²0,26 mm16,2 mm357,1 kg/km439 kg/km Send inquiry
3214162525 x 1,50 mm²0,26 mm19,4 mm483,7 kg/km601 kg/km Send inquiry
3214165050 x 1,50 mm²0,26 mm25,7 mm889,5 kg/km1109 kg/km Send inquiry
321414033 x 2,50 mm²0,26 mm9,1 mm98,2 kg/km126 kg/km Send inquiry
321414044 x 2,50 mm²0,26 mm9,8 mm125,1 kg/km156 kg/km Send inquiry
321414055 x 2,50 mm²0,26 mm11,1 mm167,8 kg/km205 kg/km Send inquiry
321414077 x 2,50 mm²0,26 mm12,2 mm222,4 kg/km266 kg/km Send inquiry
3214141212 x 2,50 mm²0,26 mm16,5 mm386,3 kg/km458 kg/km Send inquiry
3214141818 x 2,50 mm²0,26 mm19,4 mm555,7 kg/km660 kg/km Send inquiry
3214142525 x 2,50 mm²0,26 mm23,5 mm741,3 kg/km894 kg/km Send inquiry
321412033 x 4,00 mm²0,31 mm10,7 mm162,8 kg/km191 kg/km Send inquiry
321412044 x 4,00 mm²0,31 mm11,8 mm207,7 kg/km244 kg/km Send inquiry
321412055 x 4,00 mm²0,31 mm12,9 mm251,6 kg/km295 kg/km Send inquiry
321412077 x 4,00 mm²0,31 mm14,4 mm354,6 kg/km399 kg/km Send inquiry
321410033 x 6,00 mm²0,31 mm12,4 mm227,3 kg/km265 kg/km Send inquiry
321410044 x 6,00 mm²0,31 mm13,7 mm290,3 kg/km337 kg/km Send inquiry
321410055 x 6,00 mm²0,31 mm15,4 mm385,3 kg/km438 kg/km Send inquiry
321408044 x 10,0 mm²0,41 mm20,5 mm509,1 kg/km670 kg/km Send inquiry
321406044 x 16,0 mm²0,41 mm22,4 mm753,9 kg/km906 kg/km Send inquiry
321404044 x 25,0 mm²0,41 mm27,5 mm1133,5 kg/km1404 kg/km Send inquiry
321402044 x 35,0 mm²0,41 mm31,4 mm1543,2 kg/km1902 kg/km Send inquiry
321401044 x 50,0 mm²0,41 mm35,9 mm2145,9 kg/km2610 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø
copper figure
cable weight ca.
32142002
2 x 0,50 mm²
0,21 mm
5,9 mm
25,5 kg/km
42 kg/km
32142003
3 x 0,50 mm²
0,21 mm
6,2 mm
30,5 kg/km
51 kg/km
32142004
4 x 0,50 mm²
0,21 mm
6,6 mm
36,9 kg/km
60 kg/km
32142005
5 x 0,50 mm²
0,21 mm
7,2 mm
43,7 kg/km
72 kg/km
32142007
7 x 0,50 mm²
0,21 mm
7,8 mm
55,1 kg/km
89 kg/km
32142012
12 x 0,50 mm²
0,21 mm
10 mm
86,8 kg/km
141 kg/km
32142015
15 x 0,50 mm²
0,21 mm
11,5 mm
126 kg/km
191 kg/km
32141802
2 x 1,00 mm²
0,21 mm
6,6 mm
36,9 kg/km
54 kg/km
32141803
3 x 1,00 mm²
0,21 mm
7 mm
48,4 kg/km
69 kg/km
32141804
4 x 1,00 mm²
0,21 mm
7,5 mm
59,7 kg/km
84 kg/km
32141805
5 x 1,00 mm²
0,21 mm
8,2 mm
71,7 kg/km
101 kg/km
32141807
7 x 1,00 mm²
0,21 mm
9 mm
93,4 kg/km
129 kg/km
32141809
9 x 1,00 mm²
0,21 mm
11,3 mm
140,3 kg/km
188 kg/km
32141812
12 x 1,00 mm²
0,21 mm
12,1 mm
169,5 kg/km
225 kg/km
32141815
15 x 1,00 mm²
0,21 mm
13,5 mm
203,8 kg/km
277 kg/km
32141818
18 x 1,00 mm²
0,21 mm
14,3 mm
258,5 kg/km
332 kg/km
32141825
25 x 1,00 mm²
0,21 mm
17,2 mm
350 kg/km
451 kg/km
32141850
50 x 1,00 mm²
0,21 mm
22,8 mm
620,3 kg/km
818 kg/km
32141602
2 x 1,50 mm²
0,26 mm
7,2 mm
48,5 kg/km
67 kg/km
32141603
3 x 1,50 mm²
0,26 mm
7,6 mm
64,6 kg/km
86 kg/km
32141604
4 x 1,50 mm²
0,26 mm
8,3 mm
81,4 kg/km
106 kg/km
32141605
5 x 1,50 mm²
0,26 mm
9,2 mm
98,3 kg/km
131 kg/km
32141607
7 x 1,50 mm²
0,26 mm
9,9 mm
129,9 kg/km
165 kg/km
32141612
12 x 1,50 mm²
0,26 mm
13,5 mm
232,6 kg/km
292 kg/km
32141615
15 x 1,50 mm²
0,26 mm
15,3 mm
313,2 kg/km
382 kg/km
32141618
18 x 1,50 mm²
0,26 mm
16,2 mm
357,1 kg/km
439 kg/km
32141625
25 x 1,50 mm²
0,26 mm
19,4 mm
483,7 kg/km
601 kg/km
32141650
50 x 1,50 mm²
0,26 mm
25,7 mm
889,5 kg/km
1109 kg/km
32141403
3 x 2,50 mm²
0,26 mm
9,1 mm
98,2 kg/km
126 kg/km
32141404
4 x 2,50 mm²
0,26 mm
9,8 mm
125,1 kg/km
156 kg/km
32141405
5 x 2,50 mm²
0,26 mm
11,1 mm
167,8 kg/km
205 kg/km
32141407
7 x 2,50 mm²
0,26 mm
12,2 mm
222,4 kg/km
266 kg/km
32141412
12 x 2,50 mm²
0,26 mm
16,5 mm
386,3 kg/km
458 kg/km
32141418
18 x 2,50 mm²
0,26 mm
19,4 mm
555,7 kg/km
660 kg/km
32141425
25 x 2,50 mm²
0,26 mm
23,5 mm
741,3 kg/km
894 kg/km
32141203
3 x 4,00 mm²
0,31 mm
10,7 mm
162,8 kg/km
191 kg/km
32141204
4 x 4,00 mm²
0,31 mm
11,8 mm
207,7 kg/km
244 kg/km
32141205
5 x 4,00 mm²
0,31 mm
12,9 mm
251,6 kg/km
295 kg/km
32141207
7 x 4,00 mm²
0,31 mm
14,4 mm
354,6 kg/km
399 kg/km
32141003
3 x 6,00 mm²
0,31 mm
12,4 mm
227,3 kg/km
265 kg/km
32141004
4 x 6,00 mm²
0,31 mm
13,7 mm
290,3 kg/km
337 kg/km
32141005
5 x 6,00 mm²
0,31 mm
15,4 mm
385,3 kg/km
438 kg/km
32140804
4 x 10,0 mm²
0,41 mm
20,5 mm
509,1 kg/km
670 kg/km
32140604
4 x 16,0 mm²
0,41 mm
22,4 mm
753,9 kg/km
906 kg/km
32140404
4 x 25,0 mm²
0,41 mm
27,5 mm
1133,5 kg/km
1404 kg/km
32140204
4 x 35,0 mm²
0,41 mm
31,4 mm
1543,2 kg/km
1902 kg/km
32140104
4 x 50,0 mm²
0,41 mm
35,9 mm
2145,9 kg/km
2610 kg/km

Other dimensions and colours are possible on request.
