YMH11YÖ-J

PUR connection cable with coloured cores and PVC core insulation

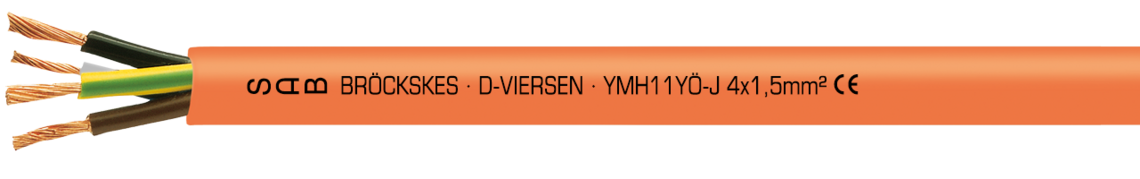

Marking for YMH11YÖ-J 02680415: SAB BRÖCKSKES · D-VIERSEN · YMH11YÖ-J 4 x 1,5 mm² CE

Marking for YMH11YÖ-J 02680415: SAB BRÖCKSKES · D-VIERSEN · YMH11YÖ-J 4 x 1,5 mm² CE

Application

NYMH11YÖ-J is a PUR control cable with coloured cores and PVC-core insulation. Moreover, it is notch, abrasion, and oil resistant and has a good chemical resistance. It is recommended for use in electric hand appliances with high mechnical loads, steel, car manufacturing, mining and chemical industry, wherever the cables get in contact with oil or sharp edges, rough floors or metal scobs; application in dry rooms.

Outstanding features

  • oil resistant
  • abrasion resistant
  • notch resistant
  • good chemical resistance

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

coloured acc. to HD 308 (VDE 0293-308),green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PUR, TMPU acc. to

EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

coloured acc. to HD 308 (VDE 0293-308),green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PUR, TMPU acc. to

EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

orange (RAL 2003)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Absence of harmful substances

acc. to RoHS directive of the European Union
