PN 662 AIR
Industrial Ethernet Cable CAT 5 - Profinet type B, for flexible applications

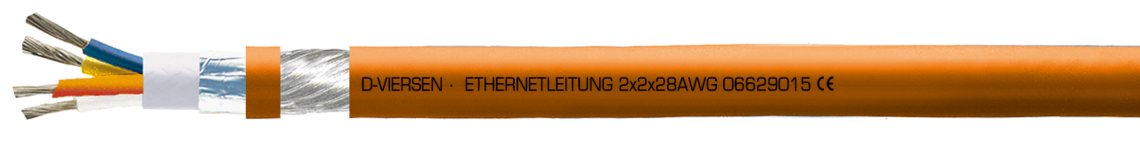

Marking for PN 662 AIR: SAB BRÖCKSKES · D-VIERSEN · ETHERNETLEITUNG 2x2x28AWG 0662915 CE
Application
Suitable for the use as Ethernet cable referring to EN 50288-2-2 (Cat. 5 acc. EN 50173): characteristic impedance of matching cores white/blue and yellow/orange 100 ± 10 Ω
Additional information
- also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Conductor | silver coated copper strands |
|---|---|
| Insulation | FEP |
| Colour code | white, yellow, blue, orange |
| Stranding | twisted as quad |
| Wrapping | non-woven tape |
| Wrapping | metal coated tape |
| Screen | silver coated copper wrapping |
| Sheath material | FEP |
| Sheath colour | orange (RAL 2003) |
silver coated copper strands
FEP
white, yellow, blue, orange
twisted as quad
non-woven tape
metal coated tape
silver coated copper wrapping
FEP
orange (RAL 2003)
Technical data
| Operating voltage | max. 150 V |
|---|---|
| Testing voltage | core/core 1500 V core/screen 1200 V |
| Min. bending radius | fixed laying: 5 x d flexible: 10 x d |
| Temperature range | fixed laying: -90/+180 °C flexible application: -40/+180 °C |
| Hydraulic fluids resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 150 V
core/core 1500 V
core/screen 1200 V
fixed laying: 5 x d
flexible: 10 x d
fixed laying: -90/+180 °C
flexible application: -40/+180 °C
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km | |
|---|---|---|---|---|---|---|
| L06629015 | 2 x 2 x AWG 28 | 2,6 mm | 9,8 kg/km | 15 kg/km | 222,2 | Send inquiry |
at 20°C acc. to VDE 0812
max. Ω/km
Other dimensions and colours are possible on request.
