H05VV-H6-F

PVC Flat cable

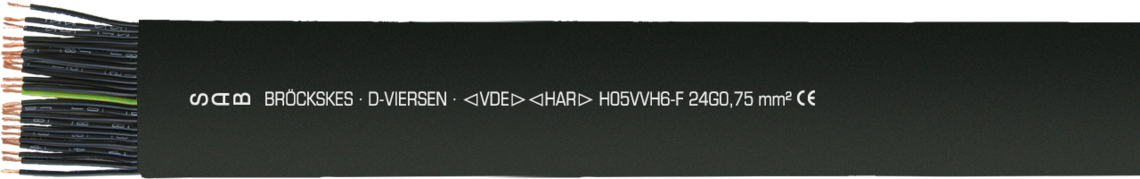

Marking for PVC Flat Cable 02142407: SAB BRÖCKSKES · D-VIERSEN · <VDE><HAR> H05VVH6-F 24G0,75 mm² CE

Marking for PVC Flat Cable 02142407: SAB BRÖCKSKES · D-VIERSEN · <VDE><HAR> H05VVH6-F 24G0,75 mm² CE

Application

for example in elevators up to 35 m freely suspended or in fitted vehicles for cranes and hoisting systems with one level bending.

Outstanding features

  • smaller bending radius in contrast to round cables

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC

Colour code

black with white numbers and green-yellow earth wire

Stranding

cores parallel side by side in groups

Sheath material

PVC

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC

Colour code

black with white numbers and green-yellow earth wire

Stranding

cores parallel side by side in groups

Sheath material

PVC

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Min. bending radius

10 x high

Temperature range

fixed laying: -40/+70°C

flexible application: 0/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Min. bending radius

10 x high

Temperature range

fixed laying: -40/+70°C

flexible application: 0/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
dimension width x
height approx.
Copper figure Cable weight ≈
021406076 x 0,75 mm²0,21 mm17,8 x 4,2 mm43,2 kg/km137 kg/km Send inquiry
021409079 x 0,75 mm²0,21 mm25,8 x 4,2 mm64,8 kg/km200 kg/km Send inquiry
0214120712 x 0,75 mm²0,21 mm39,1 x 4,2 mm86,4 kg/km260 kg/km Send inquiry
0214160716 x 0,75 mm²0,21 mm43,5 x 4,2 mm115,2 kg/km342 kg/km Send inquiry
0214180718 x 0,75 mm²0,21 mm48,4 x 4,2 mm129,6 kg/km382 kg/km Send inquiry
0214200720 x 0,75 mm²0,21 mm53,9 x 4,2 mm144 kg/km425 kg/km Send inquiry
0214240724 x 0,75 mm²0,21 mm64,3 x 4,2 mm172,8 kg/km509 kg/km Send inquiry
021404104 x 1,00 mm²0,21 mm12,7 x 4,3 mm38,4 kg/km105 kg/km Send inquiry
021405105 x 1,00 mm²0,21 mm15,3 x 4,3 mm48 kg/km129 kg/km Send inquiry
021406106 x 1,00 mm²0,21 mm18,4 x 4,3 mm57,6 kg/km154 kg/km Send inquiry
021409109 x 1,00 mm²0,21 mm26,7 x 4,3 mm86,4 kg/km225 kg/km Send inquiry
0214121012 x 1,00 mm²0,21 mm34,3 x 4,3 mm115,2 kg/km292 kg/km Send inquiry
0214161016 x 1,00 mm²0,21 mm45,1 x 4,3 mm153,6 kg/km386 kg/km Send inquiry
0214181018 x 1,00 mm²0,21 mm50,2 x 4,3 mm172,8 kg/km430 kg/km Send inquiry
0214201020 x 1,00 mm²0,21 mm55,9 x 4,3 mm192 kg/km479 kg/km Send inquiry
0214241024 x 1,00 mm²0,21 mm66,7 x 4,3 mm230,4 kg/km572 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
dimension width x
height approx.
Copper figure
Cable weight ≈
02140607
6 x 0,75 mm²
0,21 mm
17,8 x 4,2 mm
43,2 kg/km
137 kg/km
02140907
9 x 0,75 mm²
0,21 mm
25,8 x 4,2 mm
64,8 kg/km
200 kg/km
02141207
12 x 0,75 mm²
0,21 mm
39,1 x 4,2 mm
86,4 kg/km
260 kg/km
02141607
16 x 0,75 mm²
0,21 mm
43,5 x 4,2 mm
115,2 kg/km
342 kg/km
02141807
18 x 0,75 mm²
0,21 mm
48,4 x 4,2 mm
129,6 kg/km
382 kg/km
02142007
20 x 0,75 mm²
0,21 mm
53,9 x 4,2 mm
144 kg/km
425 kg/km
02142407
24 x 0,75 mm²
0,21 mm
64,3 x 4,2 mm
172,8 kg/km
509 kg/km
02140410
4 x 1,00 mm²
0,21 mm
12,7 x 4,3 mm
38,4 kg/km
105 kg/km
02140510
5 x 1,00 mm²
0,21 mm
15,3 x 4,3 mm
48 kg/km
129 kg/km
02140610
6 x 1,00 mm²
0,21 mm
18,4 x 4,3 mm
57,6 kg/km
154 kg/km
02140910
9 x 1,00 mm²
0,21 mm
26,7 x 4,3 mm
86,4 kg/km
225 kg/km
02141210
12 x 1,00 mm²
0,21 mm
34,3 x 4,3 mm
115,2 kg/km
292 kg/km
02141610
16 x 1,00 mm²
0,21 mm
45,1 x 4,3 mm
153,6 kg/km
386 kg/km
02141810
18 x 1,00 mm²
0,21 mm
50,2 x 4,3 mm
172,8 kg/km
430 kg/km
02142010
20 x 1,00 mm²
0,21 mm
55,9 x 4,3 mm
192 kg/km
479 kg/km
02142410
24 x 1,00 mm²
0,21 mm
66,7 x 4,3 mm
230,4 kg/km
572 kg/km

Other dimensions and colours are possible on request.
