T720

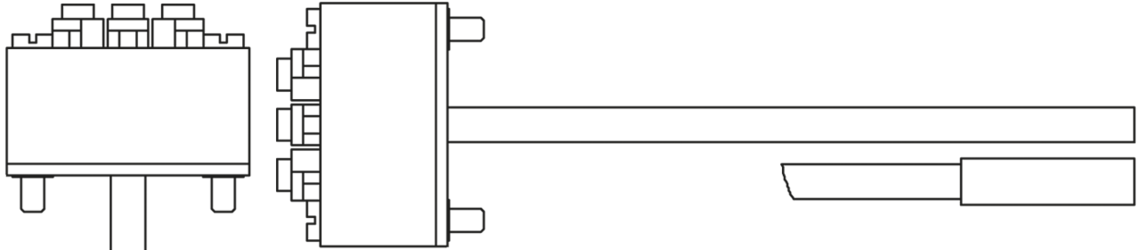

Measuring insert with 1 transmitter

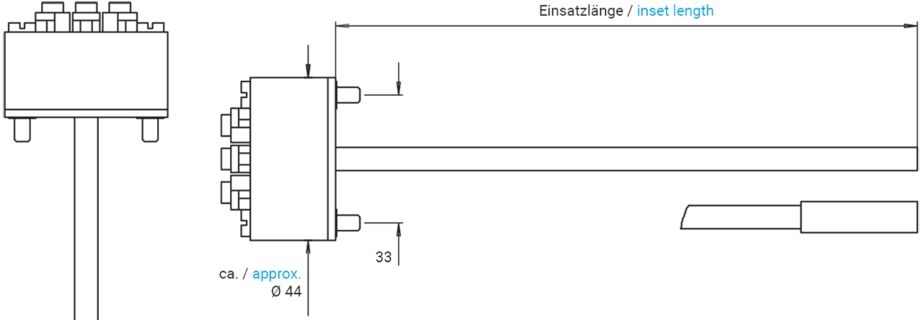

Gauge slide with 1 transmitter

Gauge slide with 1 transmitter

Construction

RTD

- 1 x Pt 100 class B

- 1 x Pt 100 class A

Connection type of inner wires

- 2 - wire circuit

- 3 - wire circuit

- 4 - wire circuit

ø sheath / measuring tip / material no.

- 3.0/3.0/1.4541

- 6.0/6.0/1.4541

- 4.5/4.5/1.4541

- 6.0/8.0/1.4541

Measuring temperature range

- -50 ..... +400°C

- -50 ..... +600°C

Inset length

- 145 mm

- 205 mm

- 255 mm

- 275 mm

- 290 mm

- 315 mm

- 340 mm

- 375 mm

- 405 mm

- 430 mm

- 435 mm

- 455 mm

- 525 mm

- 580 mm

- 655 mm

- 825 mm

- 1025 mm

- 1275 mm

- 1425 mm

- 1625 mm

- 1825 mm

- 2025 mm

■ other length - acc. to customer’s request

RTD

- 1 x Pt 100 class B

- 1 x Pt 100 class A

Connection type of inner wires

- 2 - wire circuit

- 3 - wire circuit

- 4 - wire circuit

ø sheath / measuring tip / material no.

- 3.0/3.0/1.4541

- 6.0/6.0/1.4541

- 4.5/4.5/1.4541

- 6.0/8.0/1.4541

Measuring temperature range

- -50 ..... +400°C

- -50 ..... +600°C

Inset length

- 145 mm

- 205 mm

- 255 mm

- 275 mm

- 290 mm

- 315 mm

- 340 mm

- 375 mm

- 405 mm

- 430 mm

- 435 mm

- 455 mm

- 525 mm

- 580 mm

- 655 mm

- 825 mm

- 1025 mm

- 1275 mm

- 1425 mm

- 1625 mm

- 1825 mm

- 2025 mm

■ other length - acc. to customer’s request
