T247

Plug-in thermocouple

Plug-in thermocouple

Plug-in thermocouple

Application

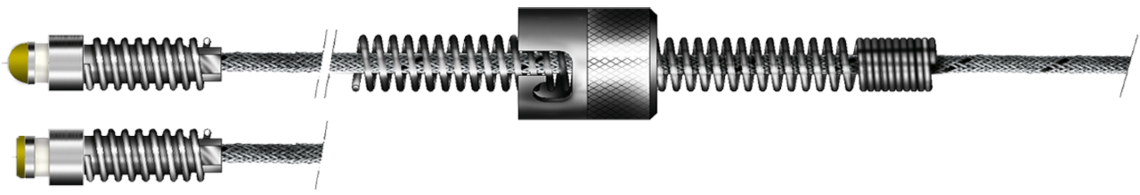

The plug-in thermocouple T247 is designed for the temperature collection at plastics processing machines. Fixing is done by a bayonet joint. Moreover, the bayonet is freely adjustable on spring. The steel wire armouring of the connection cable is used as mechanical protection.

Additional information

  • Also available in type K, T or L and classes 1 or 2.
  • The on the left mentioned technical data are standard data.
  • Individual parameters, e. g. connection cable, insulated type, spring length, bayonet or cable end can be added or modified on request.
  • Due to the integrated ceramic as thermal insulation, an excellent response time is guaranteed.

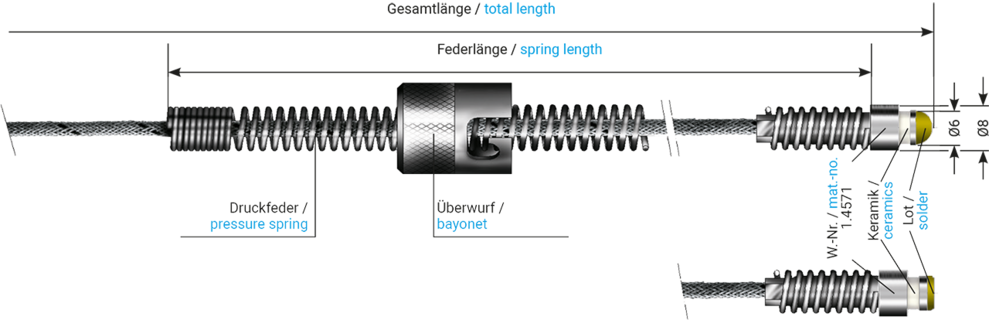

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2, form B

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Ring type

- Ø 14 / 4,5 mm CuSn 6

- other versions - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

Type

- with kink protection (shrinkable sleeve)

- with fiberglass sleeve (shrinkable sleeve)

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request

Thermocouple

The following thermocouple types can be selected depending on the application:

class 2, form B

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Ring type

- Ø 14 / 4,5 mm CuSn 6

- other versions - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

Type

- with kink protection (shrinkable sleeve)

- with fiberglass sleeve (shrinkable sleeve)

Connection cable

- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C

- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C

- other connection cables - acc. to customer’s request

see also survey of connecting cables for thermocouples

Cable length

The length of the connection cable can be freely selected. Please specify in m.

Connection ends

- miniature thermoplug

- standard plug

- miniature socket

- clips

- bare ends

- Lemo plug type - acc. to customer’s request

- Lemo socket type - acc. to customer’s request

- other cable ends - acc. to customer’s request
