SL 806 C

Combined PE/PVC motor connection cable with overall copper screen 0.6/1 kV

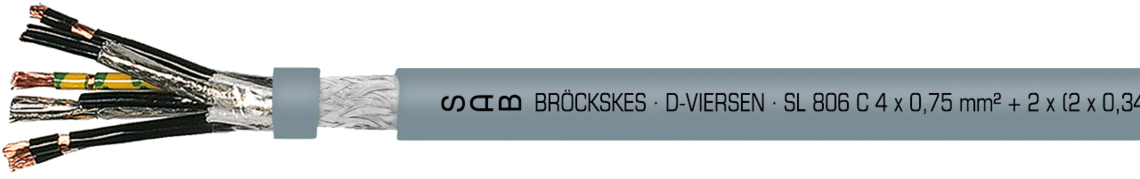

Marking for SL 806 C 08060407: SAB BRÖCKSKES · D-VIERSEN · SL 806 C 4 x 0,75 mm² + 2 x (2 x 0,34 mm²) CE

Marking for SL 806 C 08060407: SAB BRÖCKSKES · D-VIERSEN · SL 806 C 4 x 0,75 mm² + 2 x (2 x 0,34 mm²) CE

Application

SL 806 C  is a combined PE/PVC motor connection cable with overall copper screen 0.6/1 kV. It is recommended for use in flexible applications in industries with intelligent servo drives, e.g. automation technologies, machine construction, construction of industrial robots and plants, motive power, control and manufacturing engineering, in handling systems, car manufacturing industry, in engineered machining centres, and it delivers optimised combination of supply and control cores in order to supply energy for drives and their temperature monitor respectively for the brake to stop.

Outstanding features

  • very good EMC characteristics
  • high functionality
  • space-saving application
  • good handling

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

< 0,50 mm² with reference to VDE 0812

Insulation

control cores: PE L/MD acc. to EN 50290-2-23 + VDE 0819-103

supply cores: PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334

(except 0,34 mm² = coloured) and a green-yellow earth wire

Stranding

control cores 0,34 mm² - 1,5 mm² twisted to pairs

Screen

pairs wrapped with alu foil, tinned copper braid

Wrapping

pairs with PETP foil

Stranding

screened control pairs and supply cores twisted together in layers

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

< 0,50 mm² with reference to VDE 0812

Insulation

control cores: PE L/MD acc. to EN 50290-2-23 + VDE 0819-103

supply cores: PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334

(except 0,34 mm² = coloured) and a green-yellow earth wire

Stranding

control cores 0,34 mm² - 1,5 mm² twisted to pairs

Screen

pairs wrapped with alu foil, tinned copper braid

Wrapping

pairs with PETP foil

Stranding

screened control pairs and supply cores twisted together in layers

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

supply cores Uo/U 0.6/1 kV

Peak operating voltage

control cores max. 500 V

Testing voltage

supply cores:

core/core 4000 V

core/screen 4000 V



control cores:

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70°C

flexible application: -5/+70°C

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

supply cores Uo/U 0.6/1 kV

Peak operating voltage

control cores max. 500 V

Testing voltage

supply cores:

core/core 4000 V

core/screen 4000 V



control cores:

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70°C

flexible application: -5/+70°C

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension AWG
supply cores
AWG
control cores (paired)
Largest single
wire-ø
Outer-ø Copper figure Cable weight ≈
080604074 x 0,75 + 2 x (2 x 0,34)19 / 4c22 / 2pr0,21/0,16 mm12,7 mm123,0 kg/km205 kg/km Send inquiry
080604154 x 1,50 + 2 x (2 x 0,75)16 / 4c19 / 2pr0,26/0,21 mm14,0 mm180,6 kg/km274 kg/km Send inquiry
080604254 x 2,50 + 2 x (2 x 0,75)14 / 4c19 / 2pr0,26/0,21 mm15,4 mm230,2 kg/km346 kg/km Send inquiry
080604404 x 4,00 + (2 x 1,00) + (2 x 1,50)12 / 4c18 / 1pr + 16 / 1pr0,31/0,21/0,26 mm17,2 mm349,1 kg/km473 kg/km Send inquiry
080604604 x 6,00 + (2 x 1,00) + (2 x 1,50)10 / 4c18 / 1pr + 16 / 1pr0,31/0,21/0,26 mm19,1 mm429,3 kg/km581 kg/km Send inquiry
080604704 x 10,00 + 2 x (2 x 1,00)8 / 4c18 / 2pr0,41/0,21 mm22,6 mm595,9 kg/km843 kg/km Send inquiry
080604804 x 16,00 + 2 x (2 x 1,50)6 / 4c16 / 2pr0,41/0,21 mm27,5 mm860,0 kg/km1197 kg/km Send inquiry
080604904 x 25,00 + 2 x (2 x 1,50)4 / 4c16 / 2pr0,41/0,26 mm31,5 mm1254,2 kg/km1690 kg/km Send inquiry
080604954 x 35,00 + 2 x (2 x 1,50)2 / 4c16 / 2pr0,41/0,26 mm35,2 mm1678,3 kg/km2340 kg/km Send inquiry
item no.
Dimension
AWG
supply cores
AWG
control cores (paired)
Largest single
wire-ø
Outer-ø
Copper figure
Cable weight ≈
08060407
4 x 0,75 + 2 x (2 x 0,34)
19 / 4c
22 / 2pr
0,21/0,16 mm
12,7 mm
123,0 kg/km
205 kg/km
08060415
4 x 1,50 + 2 x (2 x 0,75)
16 / 4c
19 / 2pr
0,26/0,21 mm
14,0 mm
180,6 kg/km
274 kg/km
08060425
4 x 2,50 + 2 x (2 x 0,75)
14 / 4c
19 / 2pr
0,26/0,21 mm
15,4 mm
230,2 kg/km
346 kg/km
08060440
4 x 4,00 + (2 x 1,00) + (2 x 1,50)
12 / 4c
18 / 1pr + 16 / 1pr
0,31/0,21/0,26 mm
17,2 mm
349,1 kg/km
473 kg/km
08060460
4 x 6,00 + (2 x 1,00) + (2 x 1,50)
10 / 4c
18 / 1pr + 16 / 1pr
0,31/0,21/0,26 mm
19,1 mm
429,3 kg/km
581 kg/km
08060470
4 x 10,00 + 2 x (2 x 1,00)
8 / 4c
18 / 2pr
0,41/0,21 mm
22,6 mm
595,9 kg/km
843 kg/km
08060480
4 x 16,00 + 2 x (2 x 1,50)
6 / 4c
16 / 2pr
0,41/0,21 mm
27,5 mm
860,0 kg/km
1197 kg/km
08060490
4 x 25,00 + 2 x (2 x 1,50)
4 / 4c
16 / 2pr
0,41/0,26 mm
31,5 mm
1254,2 kg/km
1690 kg/km
08060495
4 x 35,00 + 2 x (2 x 1,50)
2 / 4c
16 / 2pr
0,41/0,26 mm
35,2 mm
1678,3 kg/km
2340 kg/km

Other dimensions and colours are possible on request.
