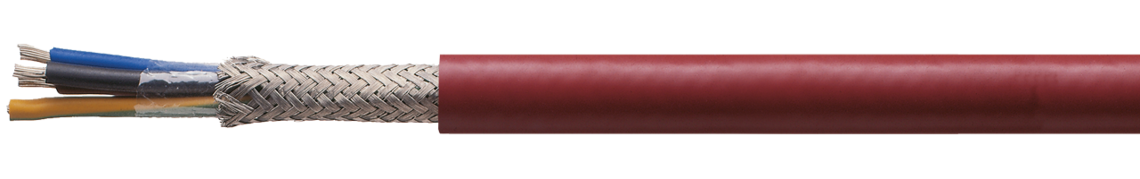

BiAF/Cu/Bi-J

Silicone (Besilen®) insulated strands with Silicone (Besilen®) outer sheath and overall copper screen

Application

BiAF/Cu/Bi-J is silicone insulated strands with overall copper screen and silicone outer sheath. Moreover, it has good EMC characteristics. It is used in packaging and textile machine construction, refrigeration, heat and air conditioning, plastics processing, smelteries, steelworks, and hot-rolling mills, cement, glass, and ceramic industries, control engineering.

Outstanding features

  • good EMV characteristics
  • halogen-free
  • flexible at low temperatures
  • heat resistant

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Sheath colour

reddish brown (similar RAL 3016)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores

with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Sheath colour

reddish brown (similar RAL 3016)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
018802052 x 0,50 mm²0,21 mm6,4 mm25,7 kg/km53 kg/km Send inquiry
018803053 x 0,50 mm²0,21 mm6,7 mm31,7 kg/km61 kg/km Send inquiry
018804054 x 0,50 mm²0,21 mm7,1 mm36,9 kg/km70 kg/km Send inquiry
018805055 x 0,50 mm²0,21 mm7,7 mm44,4 kg/km82 kg/km Send inquiry
018807057 x 0,50 mm²0,21 mm8,2 mm56,2 kg/km100 kg/km Send inquiry
0188100510 x 0,50 mm²0,21 mm10,2 mm93,9 kg/km145 kg/km Send inquiry
0188120512 x 0,50 mm²0,21 mm10,5 mm104 kg/km161 kg/km Send inquiry
0188160516 x 0,50 mm²0,21 mm11,5 mm129 kg/km197 kg/km Send inquiry
0188180518 x 0,50 mm²0,21 mm12 mm139,3 kg/km214 kg/km Send inquiry
018802072 x 0,75 mm²0,21 mm7 mm32 kg/km64 kg/km Send inquiry
018803073 x 0,75 mm²0,21 mm7,5 mm41,5 kg/km75 kg/km Send inquiry
018804074 x 0,75 mm²0,21 mm7,8 mm49,3 kg/km88 kg/km Send inquiry
018805075 x 0,75 mm²0,21 mm8,5 mm58,8 kg/km102 kg/km Send inquiry
018807077 x 0,75 mm²0,21 mm9,1 mm76,6 kg/km127 kg/km Send inquiry
0188100710 x 0,75 mm²0,21 mm11,4 mm124,1 kg/km185 kg/km Send inquiry
0188120712 x 0,75 mm²0,21 mm11,7 mm138,9 kg/km206 kg/km Send inquiry
0188160716 x 0,75 mm²0,21 mm13,3 mm176,2 kg/km268 kg/km Send inquiry
0188180718 x 0,75 mm²0,21 mm13,9 mm191,7 kg/km292 kg/km Send inquiry
018802102 x 1,00 mm²0,21 mm7,2 mm37 kg/km70 kg/km Send inquiry
018803103 x 1,00 mm²0,21 mm7,5 mm49 kg/km83 kg/km Send inquiry
018804104 x 1,00 mm²0,21 mm8,1 mm60,9 kg/km99 kg/km Send inquiry
018805105 x 1,00 mm²0,21 mm8,7 mm73,9 kg/km117 kg/km Send inquiry
018807107 x 1,00 mm²0,21 mm9,4 mm93,7 kg/km144 kg/km Send inquiry
0188101010 x 1,00 mm²0,21 mm11,8 mm148,6 kg/km209 kg/km Send inquiry
0188121012 x 1,00 mm²0,21 mm12,1 mm168,3 kg/km235 kg/km Send inquiry
0188161016 x 1,00 mm²0,21 mm13,7 mm215,3 kg/km306 kg/km Send inquiry
0188181018 x 1,00 mm²0,21 mm14,4 mm240 kg/km337 kg/km Send inquiry
018802152 x 1,50 mm²0,26 mm8 mm49,6 kg/km87 kg/km Send inquiry
018803153 x 1,50 mm²0,26 mm8,2 mm65,8 kg/km105 kg/km Send inquiry
018804154 x 1,50 mm²0,26 mm9 mm83,8 kg/km128 kg/km Send inquiry
018805155 x 1,50 mm²0,26 mm10 mm117,6 kg/km162 kg/km Send inquiry
018807157 x 1,50 mm²0,26 mm10,8 mm147,6 kg/km201 kg/km Send inquiry
0188101510 x 1,50 mm²0,26 mm13,8 mm205,9 kg/km287 kg/km Send inquiry
0188121512 x 1,50 mm²0,26 mm14,2 mm235,4 kg/km323 kg/km Send inquiry
0188161516 x 1,50 mm²0,26 mm15,6 mm302,9 kg/km406 kg/km Send inquiry
0188181518 x 1,50 mm²0,26 mm16,6 mm360,3 kg/km465 kg/km Send inquiry
018802252 x 2,50 mm²0,26 mm9,2 mm74,3 kg/km121 kg/km Send inquiry
018803253 x 2,50 mm²0,26 mm9,7 mm98,9 kg/km148 kg/km Send inquiry
018804254 x 2,50 mm²0,26 mm10,7 mm142,7 kg/km193 kg/km Send inquiry
018805255 x 2,50 mm²0,26 mm11,6 mm172,3 kg/km232 kg/km Send inquiry
018807257 x 2,50 mm²0,26 mm13 mm228,5 kg/km309 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
01880205
2 x 0,50 mm²
0,21 mm
6,4 mm
25,7 kg/km
53 kg/km
01880305
3 x 0,50 mm²
0,21 mm
6,7 mm
31,7 kg/km
61 kg/km
01880405
4 x 0,50 mm²
0,21 mm
7,1 mm
36,9 kg/km
70 kg/km
01880505
5 x 0,50 mm²
0,21 mm
7,7 mm
44,4 kg/km
82 kg/km
01880705
7 x 0,50 mm²
0,21 mm
8,2 mm
56,2 kg/km
100 kg/km
01881005
10 x 0,50 mm²
0,21 mm
10,2 mm
93,9 kg/km
145 kg/km
01881205
12 x 0,50 mm²
0,21 mm
10,5 mm
104 kg/km
161 kg/km
01881605
16 x 0,50 mm²
0,21 mm
11,5 mm
129 kg/km
197 kg/km
01881805
18 x 0,50 mm²
0,21 mm
12 mm
139,3 kg/km
214 kg/km
01880207
2 x 0,75 mm²
0,21 mm
7 mm
32 kg/km
64 kg/km
01880307
3 x 0,75 mm²
0,21 mm
7,5 mm
41,5 kg/km
75 kg/km
01880407
4 x 0,75 mm²
0,21 mm
7,8 mm
49,3 kg/km
88 kg/km
01880507
5 x 0,75 mm²
0,21 mm
8,5 mm
58,8 kg/km
102 kg/km
01880707
7 x 0,75 mm²
0,21 mm
9,1 mm
76,6 kg/km
127 kg/km
01881007
10 x 0,75 mm²
0,21 mm
11,4 mm
124,1 kg/km
185 kg/km
01881207
12 x 0,75 mm²
0,21 mm
11,7 mm
138,9 kg/km
206 kg/km
01881607
16 x 0,75 mm²
0,21 mm
13,3 mm
176,2 kg/km
268 kg/km
01881807
18 x 0,75 mm²
0,21 mm
13,9 mm
191,7 kg/km
292 kg/km
01880210
2 x 1,00 mm²
0,21 mm
7,2 mm
37 kg/km
70 kg/km
01880310
3 x 1,00 mm²
0,21 mm
7,5 mm
49 kg/km
83 kg/km
01880410
4 x 1,00 mm²
0,21 mm
8,1 mm
60,9 kg/km
99 kg/km
01880510
5 x 1,00 mm²
0,21 mm
8,7 mm
73,9 kg/km
117 kg/km
01880710
7 x 1,00 mm²
0,21 mm
9,4 mm
93,7 kg/km
144 kg/km
01881010
10 x 1,00 mm²
0,21 mm
11,8 mm
148,6 kg/km
209 kg/km
01881210
12 x 1,00 mm²
0,21 mm
12,1 mm
168,3 kg/km
235 kg/km
01881610
16 x 1,00 mm²
0,21 mm
13,7 mm
215,3 kg/km
306 kg/km
01881810
18 x 1,00 mm²
0,21 mm
14,4 mm
240 kg/km
337 kg/km
01880215
2 x 1,50 mm²
0,26 mm
8 mm
49,6 kg/km
87 kg/km
01880315
3 x 1,50 mm²
0,26 mm
8,2 mm
65,8 kg/km
105 kg/km
01880415
4 x 1,50 mm²
0,26 mm
9 mm
83,8 kg/km
128 kg/km
01880515
5 x 1,50 mm²
0,26 mm
10 mm
117,6 kg/km
162 kg/km
01880715
7 x 1,50 mm²
0,26 mm
10,8 mm
147,6 kg/km
201 kg/km
01881015
10 x 1,50 mm²
0,26 mm
13,8 mm
205,9 kg/km
287 kg/km
01881215
12 x 1,50 mm²
0,26 mm
14,2 mm
235,4 kg/km
323 kg/km
01881615
16 x 1,50 mm²
0,26 mm
15,6 mm
302,9 kg/km
406 kg/km
01881815
18 x 1,50 mm²
0,26 mm
16,6 mm
360,3 kg/km
465 kg/km
01880225
2 x 2,50 mm²
0,26 mm
9,2 mm
74,3 kg/km
121 kg/km
01880325
3 x 2,50 mm²
0,26 mm
9,7 mm
98,9 kg/km
148 kg/km
01880425
4 x 2,50 mm²
0,26 mm
10,7 mm
142,7 kg/km
193 kg/km
01880525
5 x 2,50 mm²
0,26 mm
11,6 mm
172,3 kg/km
232 kg/km
01880725
7 x 2,50 mm²
0,26 mm
13 mm
228,5 kg/km
309 kg/km

Other dimensions and colours are possible on request.
