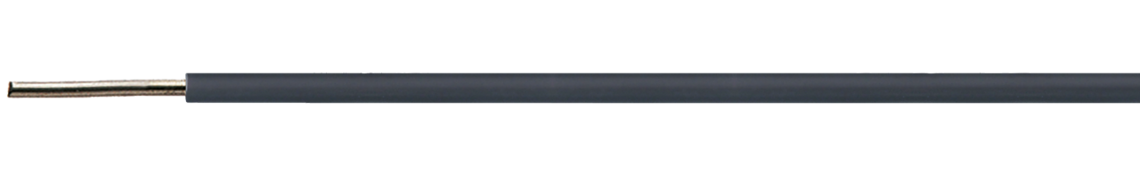

N2GFA/2GFA

Silicone (Besilen®) insulated wire

Application

N2GFA/2GFA is a silicone insulated wire acc. to DIN VDE 0250. Moreover, it is 0,75 mm² DIn VDE standardized. They are made for flexible applications for internal wiring of lamps, heating appliances, switchboard plants and distributors in industries such as smelteries, steelworks, and hot-rolling mills, industrial oven and textile machine construction, lamp, illumination, and electric industries, wood working and paper processing industries.

Outstanding features

  • halogen-free
  • 0,75 mm² DIN VDE standardized
  • flexible at low temperatures
  • heat resistant

Additional information

Colour code for single conductors:
0 = green-yellow   4 = grey
1 = blue                 5 = white
2 = black               6 = reddish brown
3 = brown              7 = red
                               9 = nature


** N2GFA 0,75 mm² according to DIN VDE 0250 part 502. Other cross sections with reference to DIN VDE 0250 part 502.

Construction

Conductor

solid tinned copper wire acc. to IEC 60228, EN 60228, VDE 0295, class 1

Insulation

Besilen® EI2 acc. to DIN EN 50363-1

Conductor

solid tinned copper wire acc. to IEC 60228, EN 60228, VDE 0295, class 1

Insulation

Besilen® EI2 acc. to DIN EN 50363-1

Technical data

Nominal voltage

Uo/U 300/300 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to DIN VDE 0472 part 815 and IEC 60754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 and EN 60332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + EN 50267-2-2 + VDE 0482 part 267-2-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/300 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to DIN VDE 0472 part 815 and IEC 60754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 and EN 60332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + EN 50267-2-2 + VDE 0482 part 267-2-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
nominal wire-ø Outer-ø ± 5% Copper figure Cable weight ≈
L0157005…*0,5 mm²0,8 mm2,1 mm4,8 kg/km9 kg/km Send inquiry
L0151007…*0,75** mm²0,98 mm2,2 mm7,2 kg/km11 kg/km Send inquiry
L0157010…*1 mm²1,13 mm2,4 mm9,6 kg/km14 kg/km Send inquiry
L0157015…*1,5 mm²1,38 mm2,8 mm14,4 kg/km21 kg/km Send inquiry
L0157025…*2,5 mm²1,78 mm3,4 mm24 kg/km33 kg/km Send inquiry
item no.
Nominal cross
section
nominal wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L0157005…*
0,5 mm²
0,8 mm
2,1 mm
4,8 kg/km
9 kg/km
L0151007…*
0,75** mm²
0,98 mm
2,2 mm
7,2 kg/km
11 kg/km
L0157010…*
1 mm²
1,13 mm
2,4 mm
9,6 kg/km
14 kg/km
L0157015…*
1,5 mm²
1,38 mm
2,8 mm
14,4 kg/km
21 kg/km
L0157025…*
2,5 mm²
1,78 mm
3,4 mm
24 kg/km
33 kg/km

Other dimensions and colours are possible on request.
