HV Test Adapter | 1-channel/4-channel Type K

Test adapter

Application

for example to test installed HV sensors

The HV test adapter is used for the adaptation of HV sensors in fixed installation and are available for all sensor types in high voltage environments. The connection to test installed sensors for potential compensating measurements or the fixed installation in empty housings are only some of the application fields for which a test adapter can be used.

Additional information

Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.

SAB identification: item number, batch number

For all sensor types available!

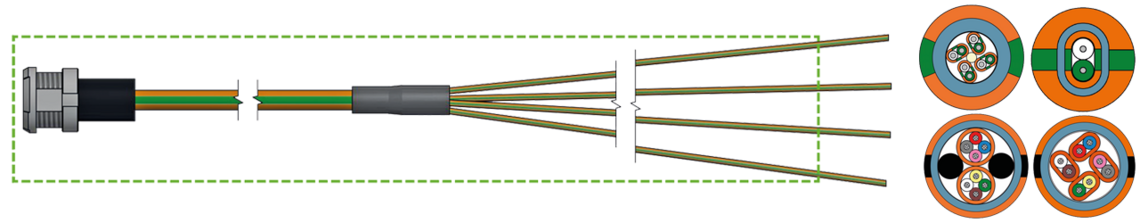

e.g. HV test adapter for HV 4-channel type K sensors

Cable data

Description	high voltage cable acc. to sensor type
Core insulation	FEP
Inner sheath	PUR – blue acc. to RAL 5024
Outer sheath	PUR
Sheath colour	orange with vertical stripes (black or green)
Stranding	paired construction (for EMC)
Outer diameter	depending on the used cable
Dielectric strength	1000 V AC – depending on the used cable
Temperature range	fixed laying: -50°C / +150°C flexible application: -40°C / +150°C

Description

high voltage cable acc. to sensor type

Core insulation

FEP

Inner sheath

PUR – blue acc. to RAL 5024

Outer sheath

PUR

Sheath colour

orange with vertical stripes (black or green)

Stranding

paired construction (for EMC)

Outer diameter

depending on the used cable

Dielectric strength

1000 V AC – depending on the used cable

Temperature range

fixed laying: -50°C / +150°C

flexible application: -40°C / +150°C

Connector

Lemo Redel 2P	apparatus socket with black potting sleeve, 8-pole, coding acc. to sensor type 1000 V AC voltage-proof – only suitable for fixed installation

Lemo Redel 2P

apparatus socket with black potting sleeve, 8-pole, coding acc. to sensor type

1000 V AC voltage-proof – only suitable for fixed installation

Connection end

Stripping length	acc. to customer`s request / open end: 2 mm dimensions for mounting cut-out on request

Stripping length

acc. to customer`s request / open end: 2 mm

dimensions for mounting cut-out on request

Tests

Cable test	core/core – 600 V AC - 1 min - acc. to IEC 60584-1 over pair sheath/inner sheath in water bath – 5000 V AC – 5 min – with reference to EN 50264-2-1
Product test	Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE). Control of contact protection towards outside – 3000 V/1 min AC

Cable test

core/core – 600 V AC - 1 min - acc. to IEC 60584-1 over pair sheath/inner sheath in water bath –

5000 V AC – 5 min – with reference to EN 50264-2-1

Product test

Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE).

Control of contact protection towards outside – 3000 V/1 min AC

Dimensions

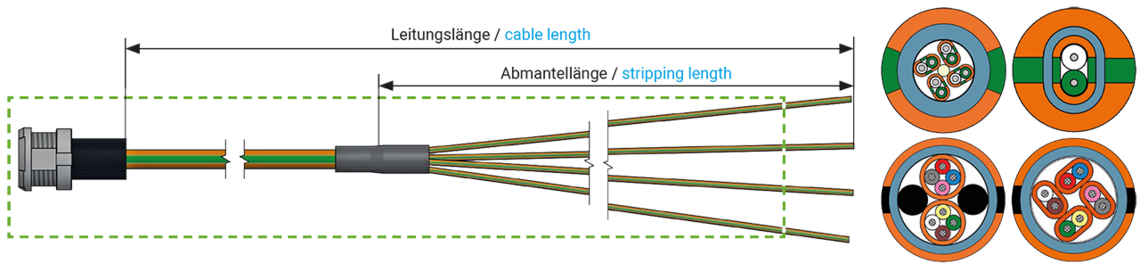

item no.	Connection cable length	Einzelkanal-Länge	Type
T141-056-583	115 mm	100 mm	4 x type K	Send inquiry
T141-051-650	200 mm	50 mm	1 x type K	Send inquiry
T641-057-773	150 mm	100 / 50 mm	2 x PT100/PT1000 - analogue (90V)	Send inquiry
T644-062-235	115 mm	100 mm	strain gauge	Send inquiry
T645-xxx-xxx 90V	115 mm	100 mm	voltage (90V)	Send inquiry
T645-xxx-xxx 1000V	155 mm	100 mm	voltage (1000V)	Send inquiry
