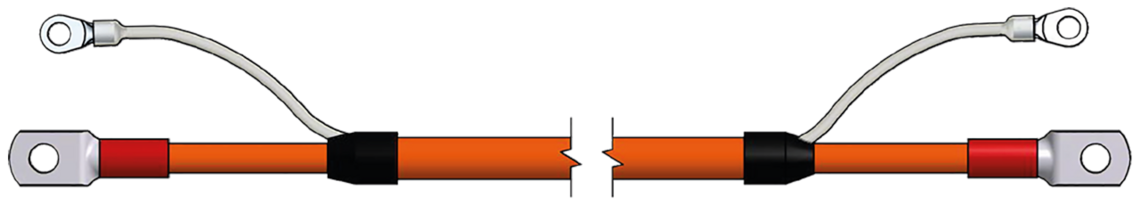

B 110 C harnessed
highly flexible Besilen® HV single core, shielded, cULus recognized (cable harness)
Application
for example at HV test benches for the transmission of high current load
Additional information
Nominal voltage up to Uo/U 1.8/3 kV AC
SAB identification: item number, batch number
Cable data
| Connection cable | highly flexible HV single core, screened |
|---|---|
| Core insulation | Besilen® |
| Screen | 100% screen with alu foil and braiding |
| Outer sheath | Besilen® |
| Sheath colour | orange |
| Outer diameter | 1,00 mm²: 7,6 mm 1,50 mm²: 8,0 mm 2,50 mm²: 8,5 mm 4,00 mm²: 9,2 mm 6,00 mm²: 9,6 mm 10,00 mm²: 11,7 mm 16,00 mm²: 12,0 mm 25,00 mm²: 14,7 mm 35,00 mm²: 16,3 mm 50,00 mm²: 18,2 mm 70,00 mm²: 20,4 mm 95,00 mm²: 22,3 mm 120,00 mm²: 24,2 mm 150,00 mm²: 27,4 mm 185,00 mm²: 29,2 mm 240,00 mm²: 32,0 mm 300,00 mm²: 34,7 mm |
| Nominal voltage | Uo/U 1,8/3,0 kV AC Uo/U 2,7/5,4 kV DC |
| Voltage cULus | 3000 V |
| Temperature range | fixed laying: -40°C / +180°C flexible application: -25°C / +180°C short time use: +250°C cULus: up to +150 °C |
highly flexible HV single core, screened
Besilen®
100% screen with alu foil and braiding
Besilen®
orange
1,00 mm²: 7,6 mm
1,50 mm²: 8,0 mm
2,50 mm²: 8,5 mm
4,00 mm²: 9,2 mm
6,00 mm²: 9,6 mm
10,00 mm²: 11,7 mm
16,00 mm²: 12,0 mm
25,00 mm²: 14,7 mm
35,00 mm²: 16,3 mm
50,00 mm²: 18,2 mm
70,00 mm²: 20,4 mm
95,00 mm²: 22,3 mm
120,00 mm²: 24,2 mm
150,00 mm²: 27,4 mm
185,00 mm²: 29,2 mm
240,00 mm²: 32,0 mm
300,00 mm²: 34,7 mm
Uo/U 1,8/3,0 kV AC
Uo/U 2,7/5,4 kV DC
3000 V
fixed laying: -40°C / +180°C
flexible application: -25°C / +180°C
short time use: +250°C
cULus: up to +150 °C

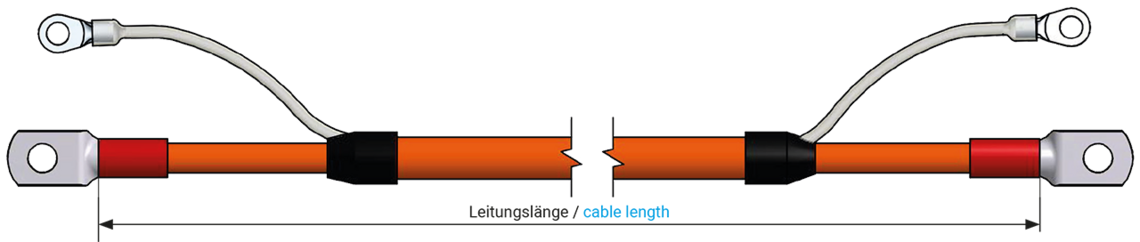

Connection end
| Outer sheath | 50 mm stripped |
|---|---|
| Connection end 1+2 | tube cable lug (single core) and ring cable lug (screen) |
| Screen | led out, twisted and insulated with shrinkable sleeve |
50 mm stripped
tube cable lug (single core) and ring cable lug (screen)
led out, twisted and insulated with shrinkable sleeve
Configuration example
| item no. | Connection cable length | Stripping length side 1 | Stripping length side 2 |
Conductor cross section | |
|---|---|---|---|---|---|
| S0110-1006-00075 | 750 mm | 50 mm | 50 mm | 16 mm² | Send inquiry |
section
Total cable and channel lengths can be realised on customer’s request.
