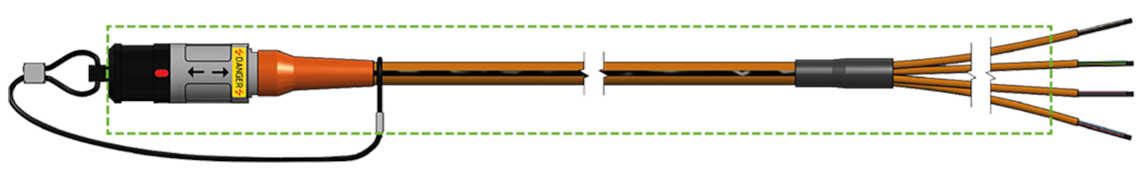

HV connecting cable for strain gauges
Application
Safe HV strain gauge measurement (full / half bridge) for example with CSM HV STG4 pro BS20 measuring module
Additional information
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.
SAB identification: item number, batch number
Cable data
| Connection cable | HV strain gauge sensor cable |
|---|---|
| Core insulation | FEP – acc. to DIN 47100 1-8 (core-Ø 0,55 mm) |
| Screen | tinned copper braiding incl. drain wire |
| Pair sheath | FEP – orange acc. to RAL 2004 |
| Inner sheath | PUR – blue acc. to RAL 5024 |
| Outer sheath | PUR |
| Sheath colour | orange with black vertical stripes |
| Stranding | paired construction (for EMC) |
| Outer diameter | approx. 7,4 mm |
| Dielectric strength | 1000 V AC over pair sheath |
| Temperature range | fixed laying: -50°C / +150°C flexible application: -40°C / +150°C |
HV strain gauge sensor cable
FEP – acc. to DIN 47100 1-8 (core-Ø 0,55 mm)
tinned copper braiding incl. drain wire
FEP – orange acc. to RAL 2004
PUR – blue acc. to RAL 5024
PUR
orange with black vertical stripes
paired construction (for EMC)
approx. 7,4 mm
1000 V AC over pair sheath
fixed laying: -50°C / +150°C
flexible application: -40°C / +150°C
Connection end
| Outer sheath | 122 mm stripped |
|---|---|
| Pair sheath | 22 mm |
| Open end | 2 mm |
| Connection | tinned |
| Screen | small cable diameter for narrow spaces |
| Temperature range single channel | -55°C / +180°C |
122 mm stripped
22 mm
2 mm
tinned
small cable diameter for narrow spaces
-55°C / +180°C
Connector
| Lemo Redel male connector | with orange kink protection sleeve and black protecting cap, 8-pin, E-coded 1000 V AC voltage-stable – IP 67 when connected |
|---|
with orange kink protection sleeve and black protecting cap, 8-pin, E-coded
1000 V AC voltage-stable – IP 67 when connected
Tests
| Cable test | core/core – 600 V AC - 1 min - acc. to IEC 60584-1 over pair sheath in water bath – 5000 V AC – 5 min – with reference to EN 50264-2-1 |
|---|---|
| Product test | Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE). Control of contact protection towards outside – 3000 V/1 min AC |
core/core – 600 V AC - 1 min - acc. to IEC 60584-1 over pair sheath in water bath –
5000 V AC – 5 min – with reference to EN 50264-2-1
Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE).
Control of contact protection towards outside – 3000 V/1 min AC
Configuration examples

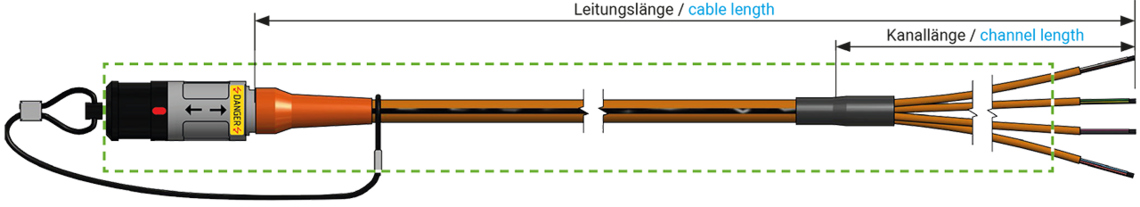

| item no. | Connection cable length | Length sheath | Length pair | Length core | Connection type | |
|---|---|---|---|---|---|---|
| T644-061-009 | 2000 mm | 122 mm | 22 mm | 2 mm | tinned | Send inquiry |
| T644-061-014 | 3000 mm | 122 mm | 22 mm | 2 mm | tinned | Send inquiry |
Total cable and channel lengths can be realised on customer’s request.
